Installing the Leg Covers
1. Remove plastic coverings of the stainless steel
'sleeves'.
2. Place the smaller 'sleeve', with cutouts facing up,
inside the larger sleeve with the openings of both
stacked and facing the back (Figure 30).
3. Beneath the range, wrap the mated pieces around the
leg.
4. Slide the outer sleeve up while the inner piece remains
on the floor. The mating part has dimples (that you
cannot see) for which the holes of the larger sleeve
should seize. You should feel a definitive click, letting
you know that the apparatus has been mounted to the
unit (Figure 31).
5. Repeat for all visible legs.
After the range is properly leveled and the leg covers have
been installed, replace the Door Trim and reinstall the
Oven Door(s) ("Step 4: Door Removal and Reinstallation"
on page 10 for door re-installation).

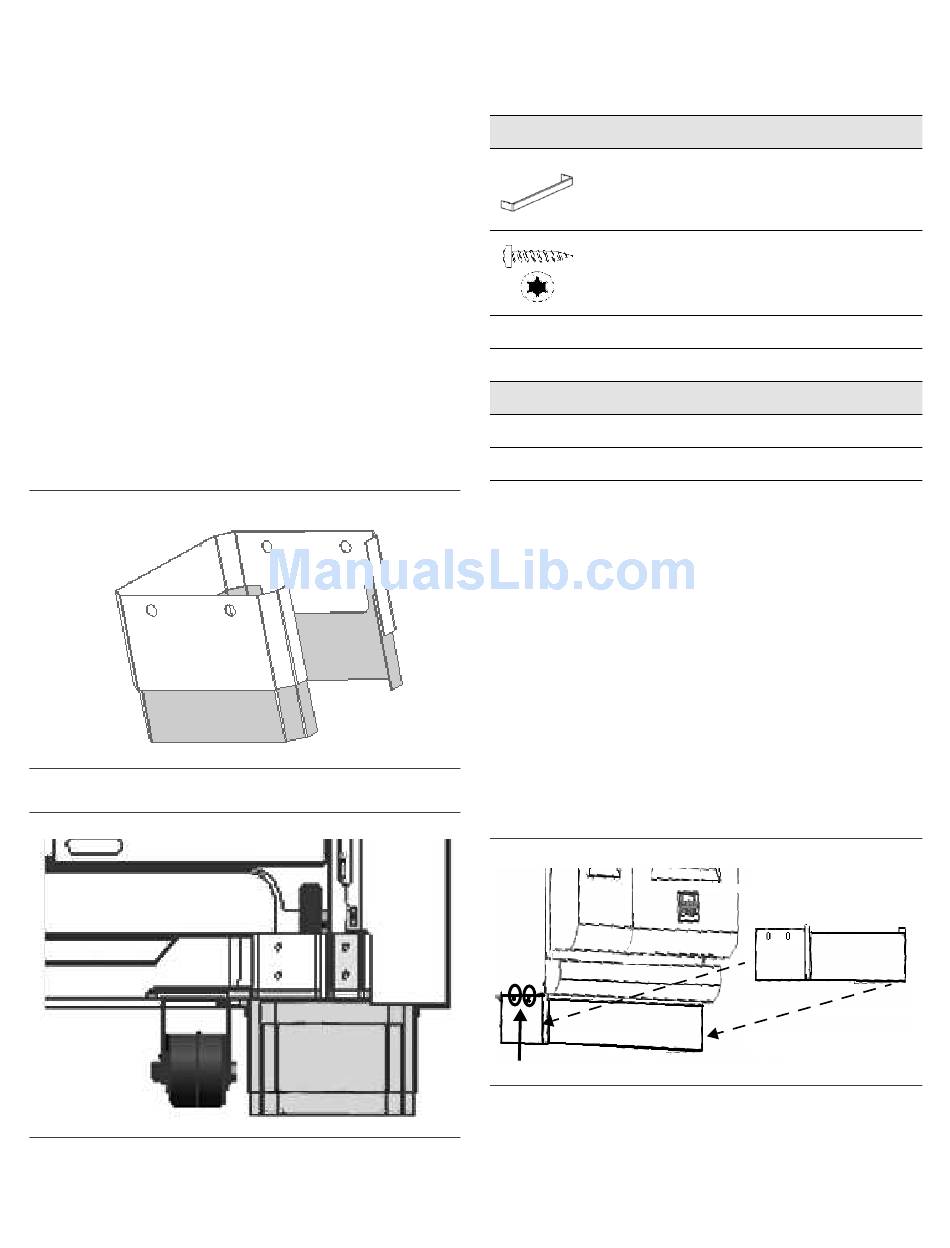

Figure 30: Leg Covers
Figure 31: Leg Covers Installed
Toe Kick Panel (optional)
(PA [36,48] JTKG)
Toe Kick Parts Included
(1) Toe Kick panel
(4) T-20 Torx drill point screws
(1) Installation Guide
Tools Needed
T-20 Torx head screwdriver or drill
Protective Work Gloves
1. Remove the leg covers by sliding the top, outer sleeve
of the leg covers off the extruded dimples of the cast
aluminum base (see Figure 30).
2. Remove protective plastic covering from the Toe Kick
Panel.
3. Beneath the range, with the holes and flange facing up,
wrap the Toe Kick Panel around the cast aluminum
base.
4. The mating part has extruded dimples on both sides for
which the holes of the Toe Kick Panel should seize.
You should feel a definitive snap, letting you know that
the part has been installed.
5. Mount the Toe Kick Panel on both sides of the unit into
the extruded dimples using the (4) T-20 Torx drill point
screws provided.
Mounting hole locations (x2)
Figure 32: Toe Kick Panel Installation
