CYBEX Topaz User Manual page 20

4. To release the fasteners squeeze the grooves on left and right side of the central
harness buckle.
5. Adjust the length of the crotch strap with the corresponding slider.
WARNING: ALWAYS USE THE CROTCH STRAP IN COMBINATION WITH THE WAIST BELT.
7. ADJUSTING THE HARNESS SYSTEM FOR NEWBORNS
1. Release the loops at the end of the shoulder straps from the triangle in the belt
system, situated at the bottom of the backrest under the seat cover.
2. Completely pull the shoulder straps out of the holes in the backrest.
3. Feed the shoulder straps through the two bottom holes. Make sure to feed the
straps back through the holes in the backrest mechanism and re-attach them
to the triangle.
4. To adjust the length of the shoulder straps to newborns please attach the inner
loop of the shoulder strap ends to the triangular ring.
Switch back to the upper holes as soon as the shoulder straps do no longer fi t over
the child´s shoulders.
8. REMOVING THE HEADHUGGER
Remove the headhugger as soon as the headhugger does no longer fi t over the
child's shoulders.
1. Remove the velcros of the headhugger on top left and right side on the back
of the seat cover.
2. Release the loops at the end of the shoulder straps from the triangle in the belt
system, situated at the bottom of the backrest under the seat cover.
3. Completely pull the shoulder straps out of the holes in the backrest.
4. Pull the shoulder straps through the shoulder pads of the headhugger. Make sure
to feed the straps back through the holes in the backrest mechanism and re-
attach them to the triangle.
9. ATTACHING THE HOOD
1. Click the hood's hooks into the supports on the front tubes on left and right side.
2. Extend the hood and place hood rear fl ap behind the seat.
3. Close the canopy stretchers on left and right side to stretch the hood.
4. To fold back the hood, lift the back part of the stretcher.
5. To release the hood press the hooks and remove.
6. Winter extension: Use the zipper to attach or detach the winter extension.
7. Lie-fl at position: Put the rear fl ap over the seat's back rest and fi x it with the two
velcros underneath.
10. ATTACHING THE BUMPER BAR
1. Slide in latches on left and right side into gadgets sewn into the seat fabric.
2. Press buttons on left and right end of the bumper bar to take it off.
36
11. RECLINING THE SEAT
1. Pull the recline lever on the back of the seat to recline the backrest in 4 different
positions
2. To raise it again lift the backrest of the seat. Backrest can be engaged in 4
different positions .
12. RECLINING THE LEG REST
1. Press the leg rest on both front edges and push it down.
2. Simply lift the leg rest to put it back to the starting position.
13 . ADJUSTING HEIGHT OF THE HANDLE
1. Push button underneath the handle and slide up upper part of handle to extend
it until it click's in. Shorten the Handle by pushing the button again.
14 . FOLDING THE STROLLER
Remove all contents from the basket.
Release canopy stretchers if the hood is fitted. Ensure the hood is folded back.
1. Push the primary lock lever underneath the pedal button.
2. Lift the pushed primary lock lever to release the stretching system.
3. Push down the secondary lock lever (extended bar on right side of the locking
system)
4. Grip handles and push forward on stroller to fold it. Press folded stroller until the
storage clip is engaged.
It is recommended to fasten the harness before folding the stroller.
15 . CARRYING THE STROLLER
1. Pull the fl exible carry handle on left rear tube and lift the stroller.
16. REMOVING THE SEAT COVER
Slightly fold the stroller to reduce tension. Remove the hood from the stroller, if
fi tted.
1. Take the seat cover's hooks off the frame on left and right side
2.Open the press buttons of the straps connected to the seat side panels and the
rear tube.
3. Open the fl aps which are fi xed with velcro over the tubes, two on each side.
4. Feed the strap with the slider of the central harness buckle through (turn 90°) the
hole in the seat fabric.
5. Feed the loops on the end of the shoulder straps through the triangle in the
backrest.
6. Feed the shoulder straps through the holes in the backrest and in the seat
fabric.
7. Slide the fabrics from the seat base tubes.
8. Reverse this procedure to refi t the seat cover and the harness. Make sure that
the seat tubes slide back into the pockets inside the seat cover.
WARNING: CHECK THAT THE SEAT UNIT IS CORRECTLY ENGAGED BEFORE USE.
17. ATTACHING THE RAINCOVER (OPTIONAL)
Extend the rain cover over the stroller like shown in the drawing.
1. Connect the rain cover to the mushroom pins at the canopy and the leg rest.

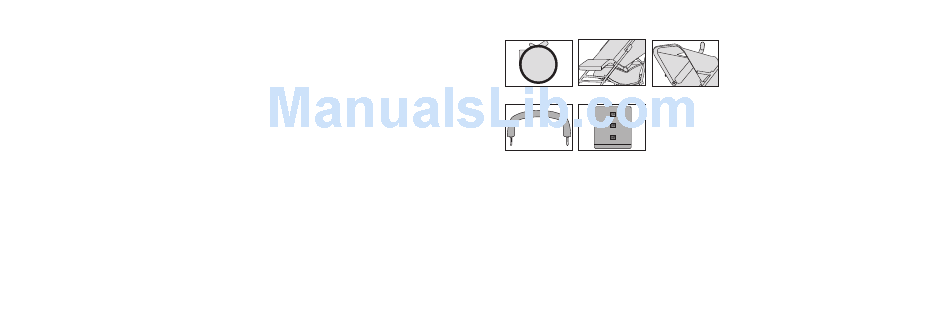

IV. PART LIST
Front Wheels Frame, Seat Cover, Hood
Basket
Bumper bar Rain Cover (optional)
V. GUARANTEE
The following warranty applies solely in the country where this product was initially
sold by a retailer to a customer. The warranty covers all manufacturing and material
defects, existing and appearing, at the date of purchase or appearing within
a term of two (2) years from the date of purchase from the retailer who initially
sold the product to a consumer (manufacturer's warranty). In the event that a
manufacturing or material defect should appear, we will – at our own discretion –
either repair the product free of charge or replace it with a new product. To obtain
such warranty it is required to take or ship the product to the retailer, who initially
sold this product to a customer and to submit an original proof of purchase (sales
receipt or invoice) that contains the date of purchase, the name of the retailer and
the type designation of this product. This warranty shall not apply in the event that
this product is taken or shipped to the manufacturer or any other person other than
the retailer who initially sold this product to a consumer. Please check the product
with respect to completeness and manufacturing or material defects immediately
at the date of purchase or, in the event that the product was purchased in distance
selling, immediately after receipt. In case of a defect stop using the product and
take or ship it immediately to the retailer who initially sold it. In a warranty case the
product has to be returned in a clean and complete condition. Prior to contacting
the retailer, please read this instruction manual carefully. This warranty does not
cover any damages caused by misuse, environmental influence (water, fire, road
accidents etc.) or normal wear and tear. It does solely apply in the event that the
use of the product was always in compliance with the operating instructions, if any
and all modifications and services were performed by authorized persons and if
original components and accessories were used. This warranty does not exclude,
limit or otherwise affect any statutory consumer rights, including claims in tort and
claims with respect to a breach of contract, which the buyer may have against
the seller or the manufacturer of the product.
37
