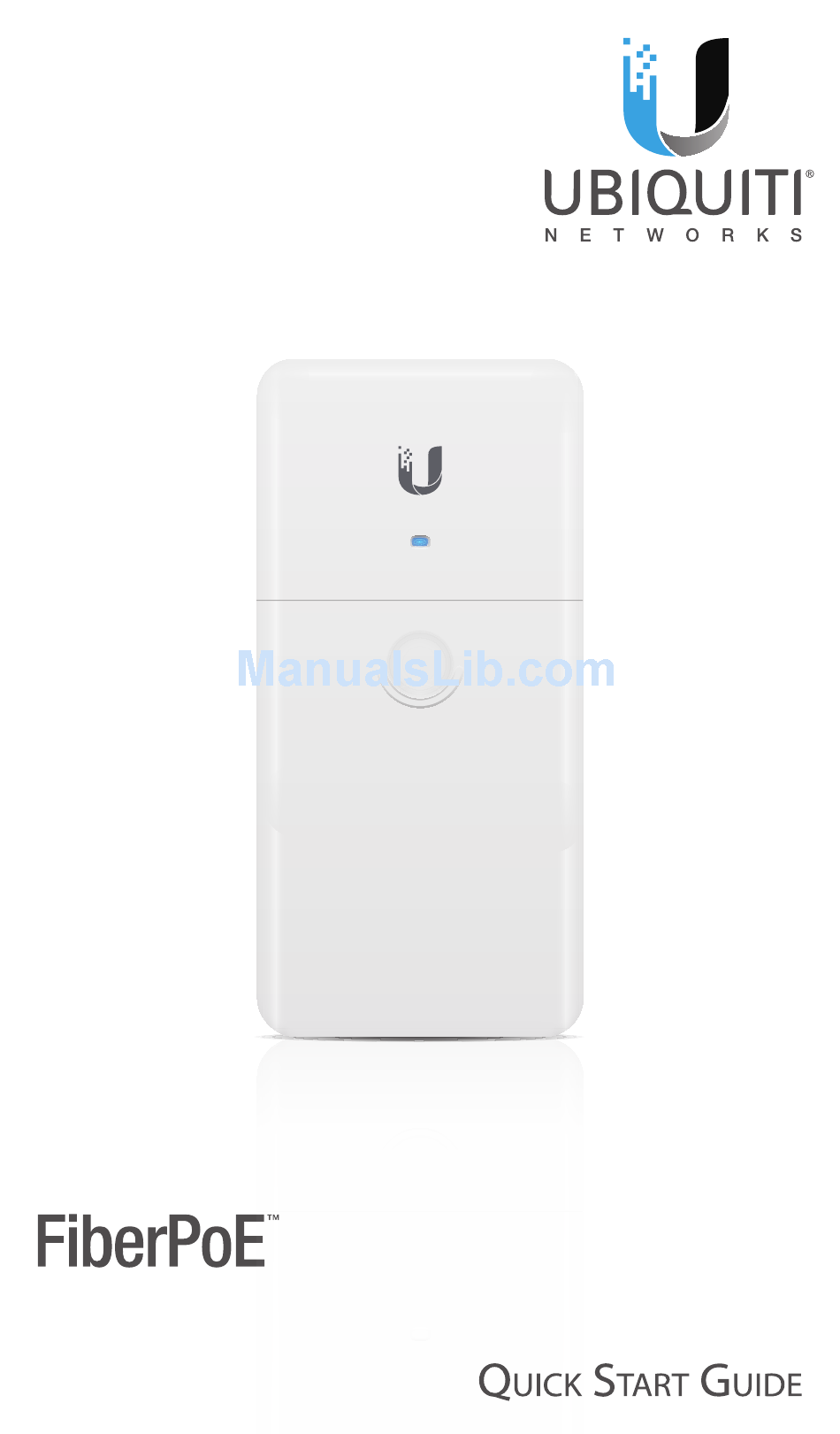

- Page 1 Optical Data Transport for Outdoor PoE Devices Model: F-POE...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® FiberPoE ™ This Quick Start Guide is designed to guide you through installation and also includes warranty terms. Package Contents Optical Data Transport for Outdoor PoE Devices Model: F-POE FiberPoE Serrated Metal Straps... -
Page 3: Application Examples
Application Examples The following are typical use cases for the F-POE. Data Options 1. Fiber Bridge Two F-POE devices, one at the base and one at the top of the tower, are used to provide a fiber optic data link for protection from EMI events that can cause equipment damage or signal integrity issues. -
Page 4: Power Options
Power Options On the tower, the F-POE can provide PoE power to the radio. Options for providing power to the F-POE include: DC Power Connect a DC power cable to the F-POE DC terminal block. PoE Power Connect a PoE adapter (power only) to the F-POE RJ45 port. -
Page 5: Hardware Overview
Hardware Overview Port Cover LED Color Status White Power on Blue Link up Flashing Blue Activity... - Page 6 • Use the Self-Tapping Screw and Serrated Washer to ground the FiberPoE directly to a grounded metal pole or structure. • Use an M5 machine screw, the Serrated Washer, and a nut (not included) to attach a drain wire (not included) that is...
-
Page 7: Power Configuration
Power Configuration There are three ways to configure the input and output power: Input Power on Terminal Block Input Power Output Power Terminal Block, 24V PoE port, 2-pair (4, 5+; 7, 8-), 24V Terminal Block, 50V PoE port, 4-pair, 50V Power In Power Out Input Power on PoE Port Input Power Output Power... -
Page 8: Cable Management
Input Power on DC In Port Input Power Output Power DC In port, 2-pair Terminal Block, 24V (4, 5+; 7, 8-), 24V PoE port, 24V, 2-pair (4, 5+; 7, 8-) Terminal Block, 24V DC In port, 4-pair, 24V PoE port, 24V, 4-pair Terminal Block, 50V DC In port, 4-pair, 50V PoE port, 50V, 4-pair... - Page 9 Connect a Drain Wire (Optional) If a drain wire is used to properly ground the FiberPoE, attach it to the Ground Bonding Point with an M5 machine screw, the included Serrated Washer, and nut (not included). Note: Place the included Serrated Washer between the drain wire and the Ground Bonding Point.
-
Page 10: Hardware Installation
Hardware Installation Install the FiberPoE either on a pole or a wall. Follow the appropriate steps for your installation: Pole-Mounting 3. Feed the included Metal Straps through the slots located on the back of the FiberPoE. 4. Wrap the Metal Straps around the pole. Use a 7 mm socket wrench or screwdriver to turn the screws clockwise and securely fasten the straps to the pole. - Page 11 If you are using a drain wire for grounding, proceed to the Connecting Input Power section. 6. Drill a 4.5 mm pilot hole into the pole through the center of the Ground Bonding Point of the FiberPoE. 4.5 mm Drill Bit...
-
Page 12: Wall Mounting
7. Insert the Self-Tapping Screw into the Serrated Washer (both included) and pilot hole. Securely fasten the screw to ensure the Ground Bonding Point is bonded to the pole. Wall-Mounting 1. Secure two screws (not included) to the wall, spaced 38 mm apart. -
Page 13: Connecting Input Power
2. With the drain wire already attached, guide the screw heads into the keyhole slots on the back of the FiberPoE. Press down on the FiberPoE to secure it. Keyhole Slots Connecting Input Power WARNING: Do not connect more than one DC source to the FiberPoE at one time. - Page 14 1. Connect a DC power cable to the Terminal Block. Note: The Terminal Block supports polarity autocorrection; however, if the DC power cable is connected as marked, the PoE polarity will be 1, 2, 3, 6+; 4, 5, 7, 8-. 2.
- Page 15 Power via DC In Port 1. Connect an Ethernet cable to the DC In port. 2. (Optional) Create a strain relief for the cable by feeding a cable tie (not included) through the cable relief slot on the reel. 3. Connect the other end of the Ethernet cable to a PoE power source.
- Page 16 Power via PoE Port 1. Connect an Ethernet cable to the PoE port. 2. (Optional) Create a strain relief for the cable by feeding a cable tie (not included) through the cable relief slot on the reel. 3. Connect the other end of the Ethernet cable to a PoE power and data source.
-
Page 17: Connecting Fiber
Connecting Fiber 1. Plug a fiber SFP module into the SFP port. 2. Remove the jacket from the fiber optic cable and connect a strand of fiber optic cable to the SFP module. - Page 18 3. Spool the fiber optic strands around the strain relief reel in a counterclockwise direction. 4. Continue until the jacketed cable spools onto the reel for at least 1½ turns. Snap the cable into the clip to secure it. 5. Connect the other end of the fiber optic cable to another fiber device.
-
Page 19: Connecting Ethernet
Connecting Ethernet Note: Skip this section if you connected PoE input power in the Power Via PoE Port section (you already have an Ethernet data connection). 1. Connect an Ethernet cable to the PoE port. 2. (Optional) Create a strain relief for the cable by feeding a cable tie (not included) through the cable relief slot on the reel. -
Page 20: Specifications
Specifications FiberPoE Dimensions 196.4 x 93.5 x 32.4 mm (Excluding Mount) ( 7.73 x 3.68 x 1.28") Weight 288 g (10.2 oz) Enclosure White Polycarbonate Interface Connections (1) 1 Gbps SFP Port (1) DC Terminal Block (1) DC RJ45 Port, 4-Pair DC Injection... -
Page 21: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 22: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... -
Page 23: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. -
Page 24: Industry Canada
Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you. -
Page 25: Australia And New Zealand
Australia and New Zealand Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. - Page 26 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 27: Declaration Of Conformity
[German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ. -
Page 28: Online Resources
. u b n t . c o m ©2015-2016 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, FiberPoE, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
