Managed Gigabit Switch
with SFP+
Model: ES-48-Lite

Advertisement

Table of Contents
loading

Related Manuals for Ubiquiti EdgeSwitch 48 LITE

Summary of Contents for Ubiquiti EdgeSwitch 48 LITE

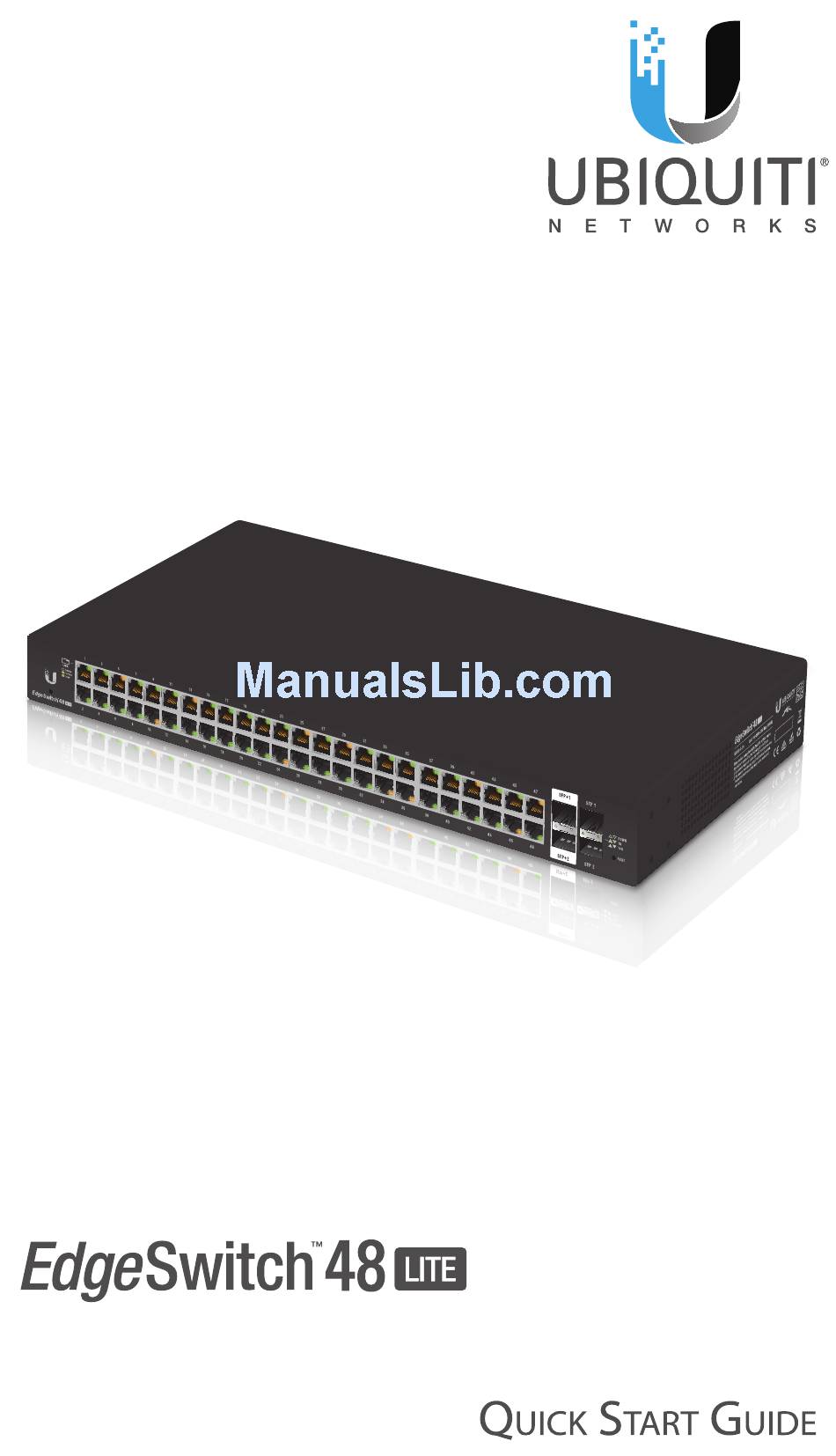

  • Page 1 Managed Gigabit Switch with SFP+ Model: ES-48-Lite...

  • Page 2: Package Contents

    Introduction Thank you for purchasing the Ubiquiti Networks® EdgeSwitch ™ Lite. This Quick Start Guide is designed to guide you through installation and also includes warranty terms. Package Contents EdgeSwitch Lite Power Cord Rack-Mount Brackets Bracket Screws (Qty. 2) (M4, Qty. 8)

  • Page 3: Installation Requirements

    AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit: www.ubnt.com/toughcable Note: Although the cabling can be located outdoors, the EdgeSwitch Lite itself should be housed inside a protective enclosure.
  • Page 4 The LEDs on the left side of the ports are not used. The other LEDs are described below: State Status White Ready for Use Bootup in Progress Blue Flashing Indicates Reset to Factory Defaults No Link Link Established at Speed/ 10/100 Mbps Amber Link/...

  • Page 5: Front Panel Button

    Front Panel Button Reset Button Description There are two methods to reset the EdgeSwitch Lite to factory defaults: Runtime Reset (Recommended) The EdgeSwitch Lite should be running after bootup is complete, and the System LED is white. Press and hold the Reset button.

  • Page 6: Front Panel Ports

    Front Panel Ports RJ45 1-48 SFP+ 1-2 SFP 1-2 Port Description RJ45 ports support 10/100/1000 Ethernet RJ45 1-48 connections. Hot-swappable SFP+ ports support SFP+ 1-2 1/10 Gbps connections. Hot-swappable SFP ports support 1 Gbps SFP 1-2 connections. Back Panel Console Port Console Port Description...

  • Page 7: Side Panel

    Back Panel Power DC Input Power DC Input The 25VDC input can connect a redundant or stand-alone DC power source (not included) with minimum power: 56W, 25 to 16V, and 2.5 mm DC power inline connector. Note: You can use the redundant DC power source as a hot spare;...

  • Page 8: Hardware Installation

    Hardware Installation The EdgeSwitch Lite can be placed on a horizontal surface, mounted on a wall, or mounted in a rack. Note: Keep 20 mm of clearance next to the ventilation holes for adequate airflow. Mounting in a Rack (Optional) 1.

  • Page 9: Connecting Power

    Connecting Power 1. Connect the Power Cord to the Power port of the EdgeSwitch Lite. 2. Connect the other end of the Power Cord to a power outlet.

  • Page 10: Connecting Ethernet

    Connecting Ethernet 1. Connect an Ethernet cable from your computer or host system to any port of the EdgeSwitch Lite. 2. Connect Ethernet cables from the Ethernet ports of your devices to the numbered ports of the EdgeSwitch Lite.
  • Page 11 Using SFP Ports The specified module types are supported at these speeds: Ports SFP+ Module Type SFP Module Type SFP+ 1-2 10 Gbps 1 Gbps SFP 1-2 (Not supported) 1 Gbps To use an SFP+ or SFP port: 1. Remove the protective plug covering the SFP+ or SFP port. 2.

  • Page 12: Accessing The Configuration Interface

    Press enter (PC) or return (Mac). 2. The login screen will appear. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License Agreement to accept it.
  • Page 13 Press enter (PC) or return (Mac). 4. The login screen will appear. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License...
  • Page 14 5. The EdgeSwitch Lite Configuration Interface will appear. Go to System > Connectivity > IPv4. 6. Change the IP Address to a unique IP address on the IPv4 tab. Click Submit. Note: If you change the IP settings, then the session will be cut off, and you will need to reconnect to the EdgeSwitch Lite using the new IP address.

  • Page 15: Specifications

    Specifications ES-48-Lite Dimensions 443 x 43 x 286 mm (17.44 x 1.69 x 11.26") Weight Rack-Mount Brackets 3.65 kg (8.05 lb) Included Rack-Mount Brackets 3.56 kg (7.85 lb) Excluded Total Non-Blocking 70 Gbps Line Rate Max. AC Power Consumption Power Method 100-240VAC/50-60 Hz, Universal Input DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector...

  • Page 16: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 17: Limited Warranty

    Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;...

  • Page 18: Limitation Of Liability

    SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.

  • Page 19: Industry Canada

    Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.

  • Page 20: Australia And New Zealand

    Australia and New Zealand Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it.
  • Page 21 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 22: Declaration Of Conformity

    [German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ.

  • Page 23: Online Resources

    [Swedish] egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Español Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos [Spanish] esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
  • Page 24 ©2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, EdgeMAX, EdgeOS, EdgeSwitch, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners. JL090315...
