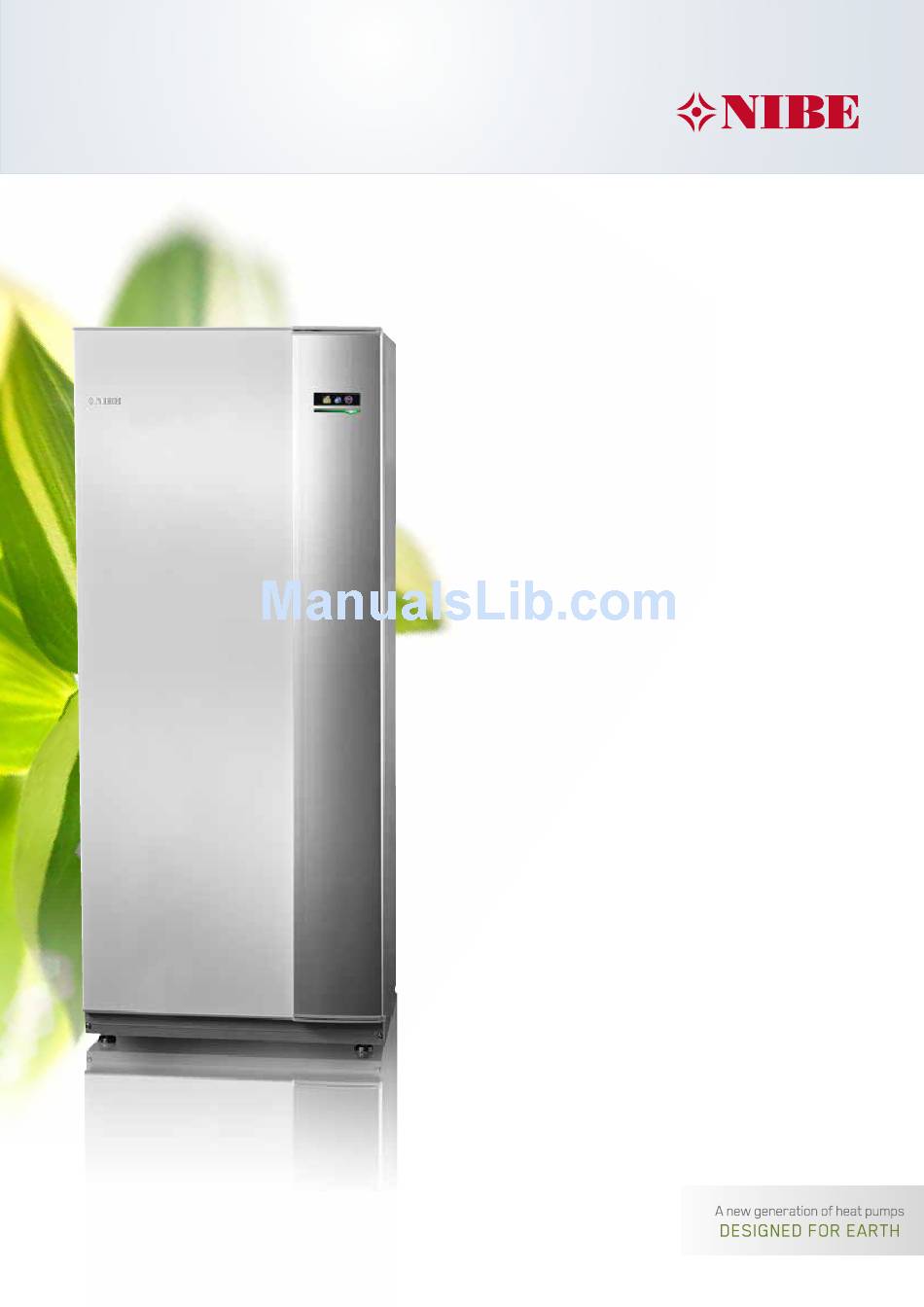

NIBE™
VVM 500
FLEXIBLE INDOOR MODULE
INTELLIGENT HOT WATER
• F lexible all-in-one indoor module for heating and hot water.
• For upgrading existing heating systems or new buildings with
requirements for high performance hot water.
• Together with NIBE VVM 500, NIBE's air/water heat pumps of-
fer a complete system for heating and domestic hot water.
• A new generation control module with colour display and
several new functions.
• Integrated solar coil and solar control for connection to solar
panels or to a stove with back boiler.
• Simple connection to and control of external heat source
(wood/oil/gas and immersion heater).
• Prepared for pool heating.
• Prepared for control of two or more climate systems.
• Possible to control and monitor NIBE VVM 500 remotely.
• Integrated buffer tank for the heating system.
• High hot water capacity, (up to 500 litres at 40 °C at 12 litres/
min) in combination with NIBE F2300.
• Stainless steel hot water coil
• Climate controlled shunt supply that monitors outdoor tem-
perature
• Self regulating speed controlled charger and A-class designed
heat pump

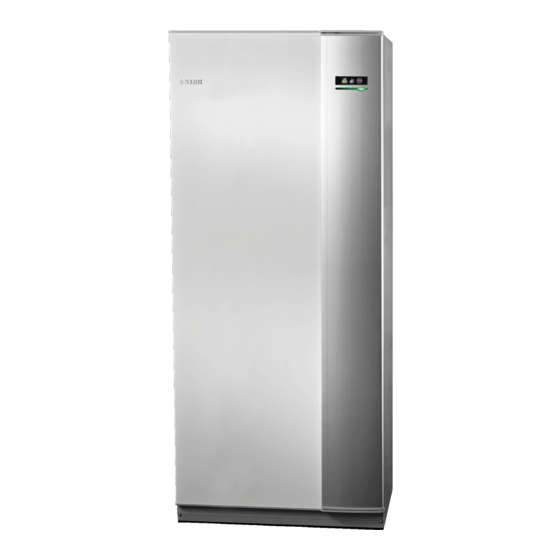

NIBE VVM 500
VVM 500 is a flexible indoor module. Together with air/ water out-
door modules F2300-14/-20 or F2026-6/-8/-10 it creates a com-
plete system to supply heating and hot water requirements of
buildings. VVM 500 can receive energy from several different alter-
natives, such as outdoor heat pumps F2300 and F2026. It can also
be supplemented with energy from the existing boiler instead of
using the internal immersion heater.
You can also use solar power. There are eight complete solar pack-
ages with panels and accessories that use the internal solar coil and
control. Solar energy is primarily used to cover hot water needs.
When enough water is heated, solar energy can be used to heating
the house and even a pool. Another energy alternative is a stove
with back boiler.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VVM 500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nibe VVM 500

  • Page 1 • Self regulating speed controlled charger and A-class designed heat pump NIBE VVM 500 VVM 500 is a flexible indoor module. Together with air/ water out- door modules F2300-14/-20 or F2026-6/-8/-10 it creates a com- plete system to supply heating and hot water requirements of buildings. VVM 500 can receive energy from several different alter- natives, such as outdoor heat pumps F2300 and F2026.
  • Page 2: System Diagram

    Solar pan- el below the stop temperature of the heat pump the VVM 500 els connected to VVM 500 can also be used to heat the pool. heats the home. The VVM 500 and NIBE’s air/water heat pumps offer complete Together with F2300, VVM 500 satisfies the heating require- flexibility.
  • Page 3: System Overview

    65 °C 58 ーC Max hot water temperature (with internal immersion heater) 75 ーC 65 °C VVM 500 must be located in a frost and condensation free room at 5 – 30 ーC ambient temperature Max temperature in tank 85 ーC "Dimensioned outdoor temperature...
  • Page 4: Maintenance

    The outer casing is of white powder-coated steel plate. Assembly Pipe dimensions Position VVM 500 on a firm base that can bear its weight, prefer- ably on a concrete floor or foundation. Use the product's adjust- able feet to obtain a horizontal and stable set-up.
  • Page 5 GOOD TO kNOW ABOUT NIBE VVM 500 ™ Dimensions 25-50 NIBE VVM 500 5...
  • Page 6 GOOD TO kNOW ABOUT NIBE VVM 500 ™ Indoor module design QM20 GP12 XL39 QN10 BT63 AA4-XJ3 VVM 500 AA4-XJ4 XL18 QN11 XL19 XL13 BT54 XL14 QN35 XL14 XL18 XL19 XL13 XL39 QM20 6 NIBE VVM 500...
  • Page 7: List Of Components

    GOOD TO kNOW ABOUT NIBE VVM 500 ™ List of components Pipe connections Electrical components Connection, heating medium flow line Immersion heater card Connection, heating medium return line Base card Connection, cold water Input circuit board Connection, hot water Display unit...
  • Page 8: Installation Alternative

    All outdoor pipes must be thermally insulated with at least 19 stat must be removed to ensure sufficient flow. mm thick pipe insulation. VVM 500 is not equipped with shut off valves; these must be in- -FL2 -CM1 stalled outside the indoor module to facilitate any future servic- ing.
  • Page 9 50リC. There should not be any non-circulatory hot wa- This docking provides both heat and hot water. ter pipes. Adjust the hot water system so that the temperature does not fall below 50°C at the end of the system. In VVM 500 it -FL2 -CM1 is possible to schedule the connected pump (GP9).
  • Page 10: Electrical Connections

    You must use cable grommets UB1 and UB2 when cable -EB101 -RN10 -QM40 -FL4 -GP4 XL13 -QM44 routing in VVM 500. In UB1 and UB2 the cables are inserted -HQ1 -QM41 -QM43 -QM45 through the indoor module from the back to the front. XL14 -QM1...
  • Page 11: Pump Capacity Diagram

    Normal Tap volume (l) 40 リC Tappvolym (l) 40 °C The diagram above displays what hot water capacity VVM 500 normal: Normal mode gives a larger amount of hot water and is can supply at the different selectable comfort modes.
  • Page 12: Display Unit

    OK button, C The OK button is used to: • confirm selections of sub menus/options/set values/page in the start guide. Back button, D The back button is used to: Display • go back to the previous menu. Status lamp • change a setting that has not been confirmed. OK button Back button Control knob Switch VVM 500 12 NIBE VVM 500...
  • Page 13: Menu System

    The start guide ensures that the start-up is carried out correctly and cannot be bypassed. The start guide can be started later in menu 5.7. If the start guide is left on this page it closes automati- cally in 60 min NIBE VVM 500 13...
  • Page 14: Technical Specifications

    Idle loss according to DIN 4753-8 Dimensions and weight Width Depth Height 1900 Required ceiling height 2000 Weight (excl packaging) Part no. 069 400 1) Applies to outdoor air heat pump at 7/45 °C (outdoor temperature / Supply temperature) 14 NIBE VVM 500...
  • Page 15: Supplied Components

    This accessory is used to This accessory is used when MODBUS 40 enables VVM measure the amount of These accessories require VVM 500 is installed in 500 to be controlled and Part no. 089 423 energy VVM 500 produces accessory DEH 500 (step...
  • Page 16 NIBE Energy Systems AB SS-EN ISO 14001:2004 Box 14 This brochure is a publication from NIBE. All product illustrations, facts and specifications are 285 21 Markaryd based on current information at the time of the publication’s approval. NIBE makes reservations SWEDEN Tel.
