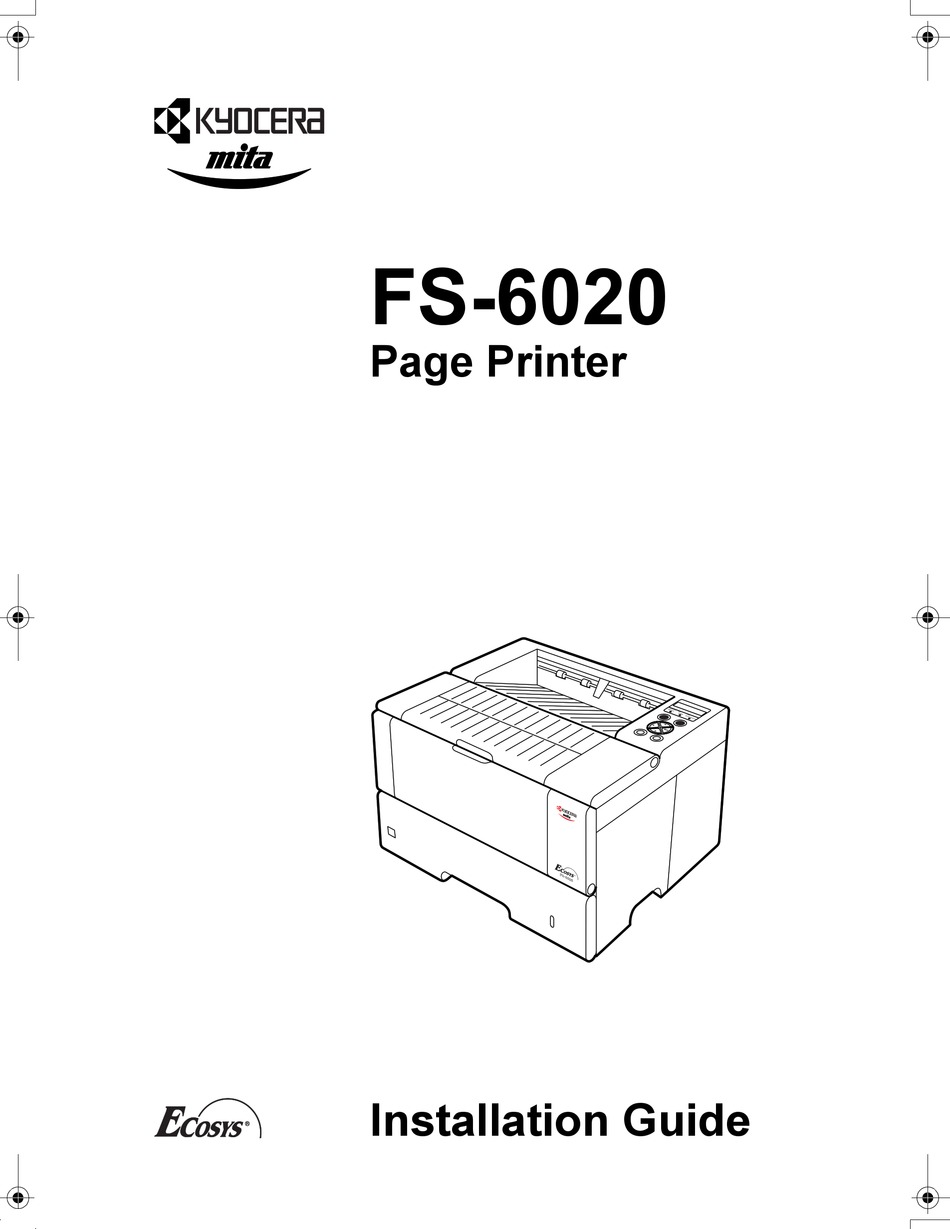

  • Page 1 $   Page Printer Installation Guide...

  • Page 2: Table Of Contents

    All rights are reserved. Copying or other reproduction of all or part of this manual, any copyrightable subject matter without the prior written consent of Kyocera Mita Corporation is pro- hibited. Any copies made of all or part of this manual, any copyrightable subject must contain the same copy- right notice as the material from which the copying is done.

  • Page 3: Step 1 Unpacking

    STEP Unpacking Carefully remove the printer and other items from the box. Check that nothing is miss- ing against the list of shipped components below. List of Shipped Components Printer Printer CD-ROM (C) Installation Guide [this booklet] and other printed matter Toner Container (A) Power Cord (B)

  • Page 4: Step 2 Positioning The Printer

    STEP Positioning the Printer Make sure that the place of installation meets the following requirements: Clearance 30 cm 30 cm 50 cm Be sure to secure enough space around the printer. Prolonged use without sufficient clearance may cause heat to build up 60 cm within the printer, resulting in 25 cm...

  • Page 5: Step 3 Installing The Toner Container

    STEP Installing the Toner Container Before you can use the printer for the first time, you must set up the printer by installing the toner container and the interfacing with the computer. Open the printer top cover all the way. Top Cover Confirm that the lock lever is in the release (UNLOCK) position.
  • Page 6 Install the toner container into the printer. Push firmly on the top of the toner con- tainer at the positions marked PUSH HERE. When the toner container fits into place, it will lock with a clicking sound. Push the lock lever to the lock (LOCK) position.
  • Page 7 To remove the toner container Pull the lock lever #1 to the release (UNLOCK) position, pull the lock lever Lock Lever #1 #2 to the right and gently lift the toner container. Lock Lever #2...

  • Page 8: Step 4 Connecting The Printer To The Computer

    Connecting the Printer to the Computer STEP There are various ways of connecting the printer to the computer, such as through the parallel interface connector, through the USB (Universal Serial Bus) interface connec- tor, through the option serial interface board kit (IB-11) or through the option network interface card.

  • Page 9: Parallel Interface Connection

    Parallel Interface Connection Plug one end of the printer cable (not included) into the parallel interface con- Clip nector on the rear of the printer. • Use a parallel printer cable that complies with the Clip IEEE1284 standards. • The printer will work best if it is installed near the computer.

  • Page 10: Step 5 Connecting To Power

    STEP STEP Connecting to Power This section describes the procedure for connecting the power cord and various cau- tions. Notes on Power Supply • Install the printer near an AC wall outlet, preferably one that can be used for the printer alone. •...

  • Page 11: Step 6 Adding Paper To The Paper Cassette And Mp Tray

    Adding Paper to the Paper Cassette and MP STEP Tray The paper cassette can accommodate A5 to A3 size paper and can hold approxi- mately 250 sheets. The MP (Multi Purpose) tray can accommodate the various paper sizes and can hold approximately 100 sheets of paper. Paper sizes that are not standard sizes (custom sizes) but within the size limita- tions can also be loaded into the cassette.
  • Page 12 Remove the cassette cover. Select the paper size by turning the paper size dial. Check that the selected paper size appears in the paper size window. You can select from A5, B5, , A4R , B4, A3, and OTHER. When the paper size dial is set to OTHER, the actual paper size must be set into the printer on the operator panel.
  • Page 13 Adjust the position of the paper stopper to the paper size you are going to use, Paper pulling up the release lever located on Stopper the back of the paper stopper. Release Lever Make sure that the edges of the paper are aligned.
  • Page 14 Insert the paper cassette into the slot in the printer. Push it straight in as far as it will go. There is a paper gauge on the right side of the front of the paper cassette to indicate the remaining paper supply.
  • Page 15 Adjust the position of the paper guides on the MP tray. Standard paper sizes are attached to the MP tray. For stan- dard paper sizes, slide the guides to the position marked correspondingly. Paper Guides Align the paper with the paper guides Load Limit Marks and insert as far as it will go.
  • Page 16 Envelopes Envelopes should be fed in the face-up position, right edge first. Test a sample envelope on the printer and check that printing quality is sat- isfactory before purchasing. Some types of envelopes are not suit- able for printing. For details on suit- able types of envelopes, see the Operation Guide contained as a PDF file in the CD-ROM supplied with the...

  • Page 17: Step 7 Turning Power On

    STEP STEP Turning Power On This section describes the procedure for turning on the printer’s power. During start- up, the language for the message display and status page of this printer can be selected from English, French, German, Italian, Dutch, Spanish, and Portuguese. The default message language is English.

  • Page 18: Step 8 Printing A Status Page

    When the message display shows Please wait, release the (17(5 key. Please wait The message display indication changes to that shown on the left and ? MSG language flashes. ? English Press the key repeatedly until the message display shows the desired language and then press the (17(5 key.

  • Page 19: Correcting A Paper Jam

    Correcting a Paper Jam If a paper jam occurs while you are printing, remove the jammed paper as described below. After you have removed the jammed paper, open and close the top cover once. When pulling the paper, pull it gently so as not to tear it. Torn pieces of paper are difficult to remove and may be easily overlooked, deterring the jam recovery.
  • Page 20 Jam Inside the Printer Open the printer’s top cover. Top Cover Open the printer’s front cover. Front Cover Lift the process unit together with the toner container out of the printer. The drum in the process unit is sensitive to light. Never expose the drum even to normal office lighting (500 lux) for more than five minutes.
  • Page 21 Return the feed cover to its original position. Replace the process unit and toner con- tainer, then close the printer.

  • Page 22: Safety Information

    Important note on the interface connectors Be sure to turn off printer power before connecting or disconnecting an interface cable to the printer. For pro- tection against static discharge which may be applied to the printer’s internal electronics through the interface connector(s), keep any interface connector which is not in use capped using the protective cap supplied.

  • Page 23: Important Safeguards

    Manufacturer’s address: 704-19 Nojino, Tamaki-Cho, Watarai-Gun, Mie-Ken 519-0497, Japan declares that the product Product name: Laser Printer Model number: FS-6020 (as tested with the enhancement optional unit: PF-400 and DU-400) Conforms to the following product specifications. EN 55 022:1998 Class B...

  • Page 24: Moving The Printer

    Model number: FS-6020 (as tested with the enhancement optional units: PF-400 and DU-400) Description of device: This Laser Printer Model FS-6020 is the 20 ppm, up to A4 size paper adaptable, printer that utilizes plain paper, laser, dry toner etc.
  • Page 25 ® NERGY As an E Partner, we have determined that this product meets the NERGY guidelines for energy efficiency. NERGY The basic objective of the E Program is to reduce environmental pol- NERGY lution by encouraging the manufacture and sale of equipment that uses energy more efficiently.

  • Page 26: Limited Warranty

    Centronics Data Computer Corp. Adobe and Acrobat are trademarks of Adobe Systems Incorporated. This Kyocera Mita page printer uses PeerlessPrintXL to provide the HP LaserJet compatible PCL 6 language emulation. PeerlessPrintXL is a trademark of The Peerless Group, Redondo Beach, CA 90278, U.S.A.

  • Page 27: Limitation Of Remedies

    3. Limitation of Remedies IBM’s entire liability under this license is the following; 1) For any claim (including fundamental breach), in any form, related in any way to this license, IBM’s liability will be for actual damages only and will be limited to the greater of: a) the equivalent of U.S.$25,000 in your local currency;...

  • Page 28: Operator Panel

    Operator Panel For more details on operating procedures, see the Operation Guide contained as a PDF file in the CD- ROM supplied with the printer. Indicator Name Description Ready Flashing: Indicates when an error occurs that you can clear by yourself. indicator Lit: Indicates that the printer is on-line.
