OPN 2002 LASER SCANNER

AND HANDIFOX USER GUIDE

The Opticon OPN2002 is a small, light

weight laser scanner with a Bluetooth

communications link. It can be used

with Android phones and tablets to

scan barcodes and enter information

into the HandiFox application. This

Guide describes basic principles of

operation.

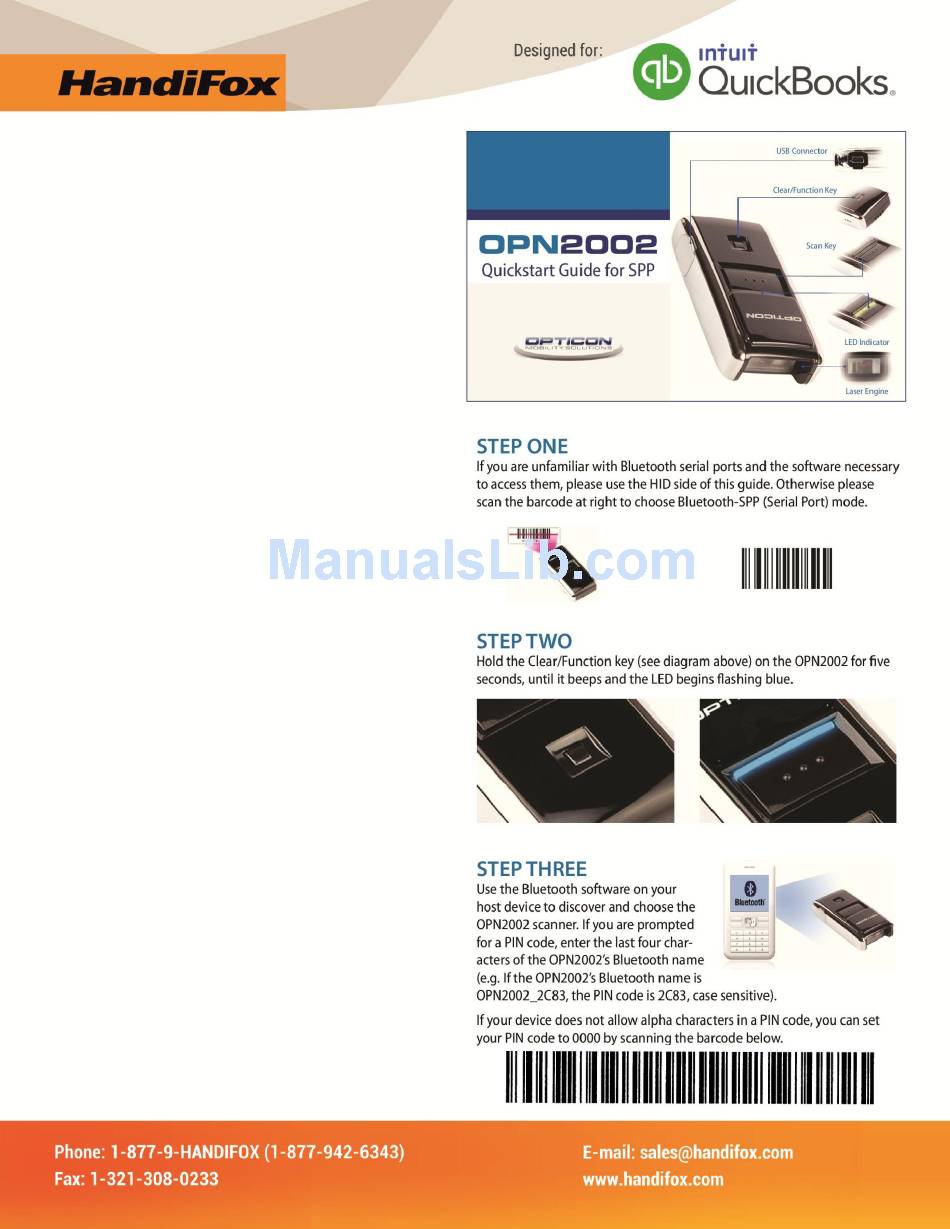

INITIAL SETUP. Refer to the graphic at

the right and follow the steps for initial

setup. You will be using the SPP mode

(Serial Port Protocol).

Scan the

barcode in step 3 to change the PIN

code to 0000. You will use this code

when pairing the scanner with your

device.

Table of Contents

Need help?

Do you have a question about the OPN2002 and is the answer not in the manual?

Page 1 OPN 2002 LASER SCANNER AND HANDIFOX USER GUIDE The Opticon OPN2002 is a small, light weight laser scanner with a Bluetooth communications link. It can be used with Android phones and tablets to scan barcodes and enter information into the HandiFox application. This Guide describes basic principles of operation.
Page 2 HandiFox, eliminating the need to press the small button. CHARGING. Charge the OPN2002 by using a USB charging cable connected to a PC or other USB charging power supply. You should charge it every day to ensure reliable operation.
Page 3 OPERATIONS WITH HANDIFOX. Not all screens in HandiFox require the use of a scanner. For those screens which do accept scanner inputs, like Inventory/Item List, a Connect command is sent by HandiFox. If the scanner is in the Connectable mode (blue light flashing), it will acknowledge the Connect command with a high pitched beep.
Page 4 To re-set the scanner to factory condition, hold the scanner button down for 20 seconds. You will then need to set up the scanner again using this procedure. Reference: Opticon 2002 Manual http://old.opticon.com/uploads/Manual/OPN2002_Manual_Bluetooth_demo_3531X.zip...
