- Page 1 Handheld Bluetooth 1D CCD Scanner OPC-3301i This manual provides specifications for the OPC- Specifications Manual 3301i handheld Bluetooth 1D CCD scanner.
-
Page 2: Serial Number
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE PRODUCT. Serial Number A serial number appears on all Opticon products. This official registration number is directly related to the device purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the warranty. - Page 3 OPC-3301i Specifications Manual Revision History Specification No. : (SS14023) Product name : OPC-3301i Edition Date Page Section Description of Changes First 2014/10/20 Initial release...
-
Page 4: Table Of Contents
OPC-3301i Specifications Manual Contents 1. Abstract ............................. 1 2. Overview............................1 3. Basic Specifications......................... 2 4. Detailed View ............................ 4 5. Electrical Specifications ........................5 5.1. Current Consumption........................ 5 5.2. Operating Time and Charging Time ..................5 6. Interface Specifications ........................5 6.1. - Page 5 OPC-3301i Specifications Manual 10.3. EMC ............................15 10.4. Others ........................... 16 11. RoHS .............................. 16 12. Reliability............................16 13. Precautions ........................... 16 13.1. Handling ..........................16 13.2. Radio Law ..........................17 13.3. Bluetooth ..........................17 13.4. Frequency Baud........................17 14. Product Labels..........................18 15.
-
Page 6: Abstract

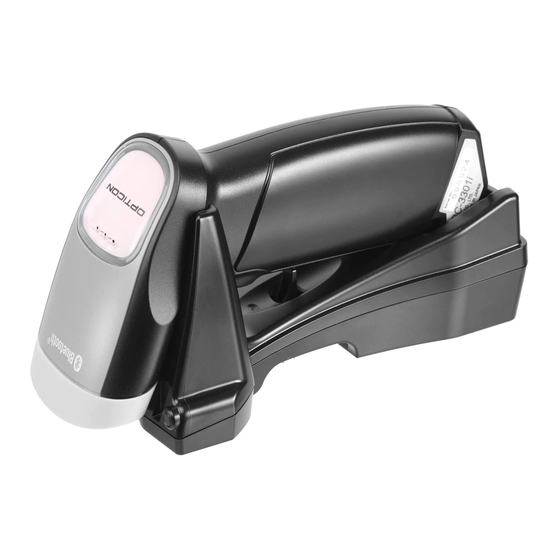

This manual provides specifications for the OPC-3301i handheld Bluetooth 1D CCD scanner. 2. Overview The OPC-3301i is a handheld 1D scanner with a built-in CCD imager that enables high speed scanning of standard linear (1D) symbologies. The scanned data is output via Bluetooth. -
Page 7: Basic Specifications
OPC-3301i Specifications Manual 3. Basic Specifications Item Specification Note 32 bit CISC / 96 MHz FROM 512 Kbyte + 32 Kbyte SRAM 96 Kbyte FROM (storage) 1 Mbyte For data area only Key type 1 key: trigger 2 colors (red, green) and 1 color (blue) - Page 8 OPC-3301i Specifications Manual Item Specification Note Brightness of white space 30 cd/m or more On LCD screen Contrast ratio 100:1 or more Charge the battery Main battery Lithium-ion 1100 mAh (typ.) before initial use Up-time 48 hours or more Operating (charging) voltage 5.0 ~ 6.5V...
-
Page 9: Detailed View
OPC-3301i Specifications Manual 4. Detailed View Figure 1: Detailed View of OPC-3301i Name Description Trigger Key A key to read bar codes Scan Window LED illumination is emitted from this window to read bar codes. The operating statuses, such as bar code reading, Bluetooth connection Status LED and warning, are indicated by different colors. -
Page 10: Electrical Specifications
OPC-3301i Specifications Manual 5. Electrical Specifications 5.1. Current Consumption Item Specification Note Standby 15 mA or less With wireless connection Sleep 1 mA or less Reading, communications, Operating 200 mA or less LED, vibration motor activated Measurement condition Power voltage 3.7 V at 25 °C 5.2. -
Page 11: Optical Specifications
OPC-3301i Specifications Manual 7. Optical Specifications 7.1. Basic Optical Specifications Item Characteristics Scan method CCD linear image sensor Effective pixel Horizontal 1500 dots Image capture speed (*1) Scan rate 300 scans/sec Focal distance Distance from the front edge of scanner... -
Page 12: Technical Specifications
OPC-3301i Specifications Manual 8. Technical Specifications The conditions for technical specifications are as follows unless otherwise specified in each section. <Conditions> Temperature and humidity : Room temperature, room humidity Ambient light : 200 ~ 300 lx Angles : Pitch: α = 0°, Skew: β = 15°, Tilt: γ = 0°... -
Page 13: Scan Area And Depth Of Field
OPC-3301i Specifications Manual 8.2. Scan Area and Depth of Field The scan area is within the arc centered on the scan origin as shown in each resolution, which is measured from the front edge of the scanner. Scanning may not be possible within this range Resolution 0.127... -
Page 14: Printed Contrast Signal (Pcs)
OPC-3301i Specifications Manual 8.3. Printed Contrast Signal (PCS) 0.3 or higher <Conditions> : 32% and higher (70% or higher reflectivity of space and quiet zone) Distance : 72 mm from the front edge of the scanner : JAN (resolution 0.26 mm, PCS 0.3) specified in Section 8.1. -
Page 15: Pitch, Skew And Tilt
OPC-3301i Specifications Manual 8.6. Pitch, Skew and Tilt Pitch : α = ±50° Skew : β = ±65° Dead zone : β = ±8° Tilt : γ = ±25° <Conditions> : JAN (resolution 0.33 mm) specified in Chapter 8.1 Bar code... -
Page 16: Scanning From Lcd Screen
OPC-3301i Specifications Manual 8.8. Scanning from LCD Screen Bar codes displayed on LCD screens (brightness of white part 30 cd/m or more, contrast ratio 100:1) can be read. <Conditions> : JAN (resolution 0.26 mm) specified in Section 8.1. Bar code... -
Page 17: Auto Trigger Operation
OPC-3301i Specifications Manual 8.9.2. Auto Trigger Operation The scanner has an optional auto trigger mode in which it starts to read a bar code automatically when it detects one. When auto trigger mode is enabled, the scanner tries to detect bars at regular intervals and when it detects 18 or more bars, it enters read mode in which it tries to decode a bar code. -
Page 18: Environmental Specifications
OPC-3301i Specifications Manual 9. Environmental Specifications 9.1. Temperature Scanning performance is guaranteed when the range of ambient temperature around the scanner is the following values: Operating temperature : 0 ~ 50 °C Storage temperature : -20 ~ 60 °C 9.2. Humidity... -
Page 19: Vibration Strength (In Individual Packing)
OPC-3301i Specifications Manual 9.6. Vibration Strength (in individual packing) There shall be no sign of malfunction after the following vibration test. Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated velocity of 19.6 m/s (2.0 G) for 30 minutes (60 minutes per cycle) in individually packaged state. -
Page 20: Regulatory Compliance
OPC-3301i Specifications Manual 10. Regulatory Compliance 10.1. LED Safety IIEC 62471-1:2006 Exempt_Group 10.2. Product Safety EN60950-1:2005 IEC60950-1:2006 10.3. EMC R&TTE Directive ・ EN 55022:2010 ・ EN 301 489-1 V1.9.2 ・ EN 301 489-17 V2.1.1 ・ EN 300 328 V1.8.1 FCC Part 15 Subpart B Class B Federal Communications Commission Notices This product complies with Part 15 of the FCC Rules. -
Page 21: Others
2.4 GHz band ・Model Name OPA-26X1 ・Certificate Number 201-125603 11. RoHS The OPC-3301i is compliant with RoHS. RoHS: The restriction of the use of certain hazardous substances in electrical and electronic equipment, 2011/65/EU 12. Reliability MTBF (Mean Time Between Failures) 10,000 hours 13. -
Page 22: Radio Law
OPC-3301i Specifications Manual (4) Others ・Do not disassemble this product. ・Do not use this product near a radio or a TV. It may cause reception problems. ・This product may be affected by a momentary voltage drop caused by lightning. ・iPhone, iPad and iPod are trademarks of Apple Inc. -
Page 23: Product Labels
OPC-3301i Specifications Manual 14. Product Labels The product labels are affixed to the scanner as shown below. Product label Logo label Figure 10: Product Labels Product label Shows the product name, serial number, and month and year of manufacture. Logo label... -
Page 24: Packaging Specifications
OPC-3301i Specifications Manual 15. Packaging Specifications 15.1. Individual Packaging Assembled package size: 165 × 110 × 82 (WDH mm) Figure 11: Individual Packaging... -
Page 25: Collective Packaging
OPC-3301i Specifications Manual 15.2. Collective Packaging Assembled package size : 585 × 520 × 200 (WDH mm) Figure 12: Collective Packaging * ‘Ro mark’ on the boxes for the product indicates that the product is RoHS compliant declared by Optoelectronics Co., Ltd. -
Page 26: Physical Features
OPC-3301i Specifications Manual 16. Physical Features 16.1. Dimensions 56 × 113 × 132 (WDH mm / excluding protruding portion) 16.2. Weight Approx. 127 g (excluding accessories) 16.3. Mechanical Drawing (113) (56) (132) Figure 13: Mechanical Drawing... -
Page 27: Supported Symbologies
OPC-3301i Specifications Manual 17. Supported Symbologies 17.1. Default Setting The scanner is set to default settings by reading the following menu labels. Function Menu label Menu code _ZZ_ _SO_ Default _ZZ_ 17.2. Supported Symbologies 17.2.1. 1D Bar Codes Code type... -
Page 28: Gs1 Databar, Composite Code
OPC-3301i Specifications Manual 17.2.2. GS1 Databar, Composite Code Code type Default Note GS1 DataBar ・GS1 DataBar Omnidirectional ・GS1 DataBar Truncated ○ ・GS1 DataBar Stacked ・GS1 DataBar Stacked Omnidirectional GS1 conversion (setting required) GS1 DataBar Limited ○ GS1 DataBar Expanded ・GS1 DataBar Expanded ○...
