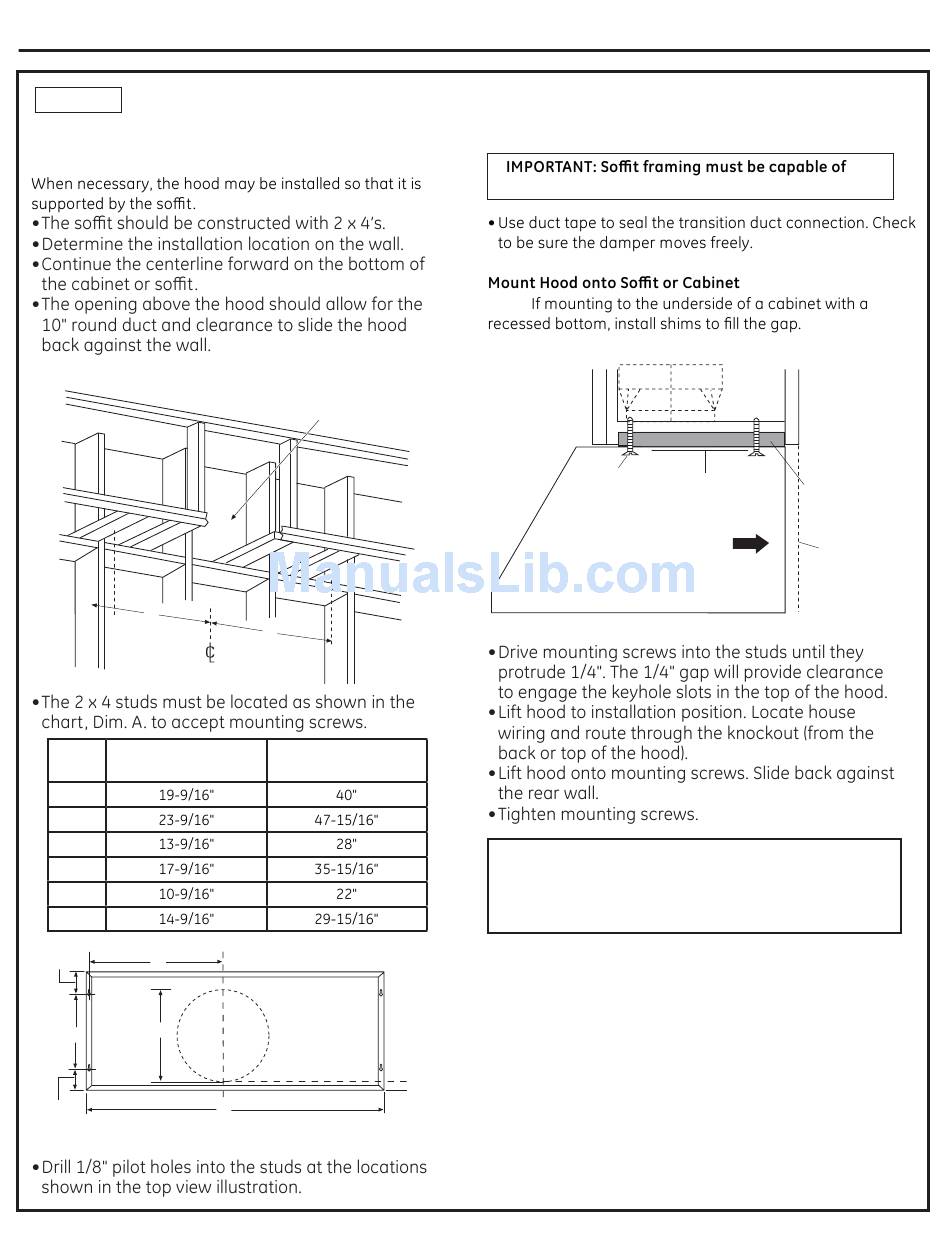

Monogram ZV48SSJSS Installation Instructions Manual page 11

STEP 2B Alternate Mounting Method
INSTALL HOOD TO SOFFIT OR BENEATH CABINETS
SKIP THIS STEP IF USING WALL MOUNTING METHOD
A
"A" Centerline to Stud
and Keyhole Slots
ZV48T
ZV48S
ZV36T
ZV36S
ZV30T
ZV30S
A
2"
10"
7-1/2"
2-9/16"
Back of Hood
31-11016-1
Installation Instructions
Requires 10-1/2" Min.
Opening For Ductwork
and Hood Installation
A
"B" Hood Width At
the Top
Top View
Front of Hood
B
supporting up to 150 lbs.
Note:
Engage Top
Keyhole Slots
IMPORTANT: For additional support and to
minimize vibration during operation, the hood must
be secured to the back wall. Use wall anchors to
fasten bottom back of hood to the wall.
3/4"
Cabinet
or
Soffit
Add Shims
1/4" Gap
If Bottom
Is Recessed
Push Back
Back
to Wall
Wall
11
