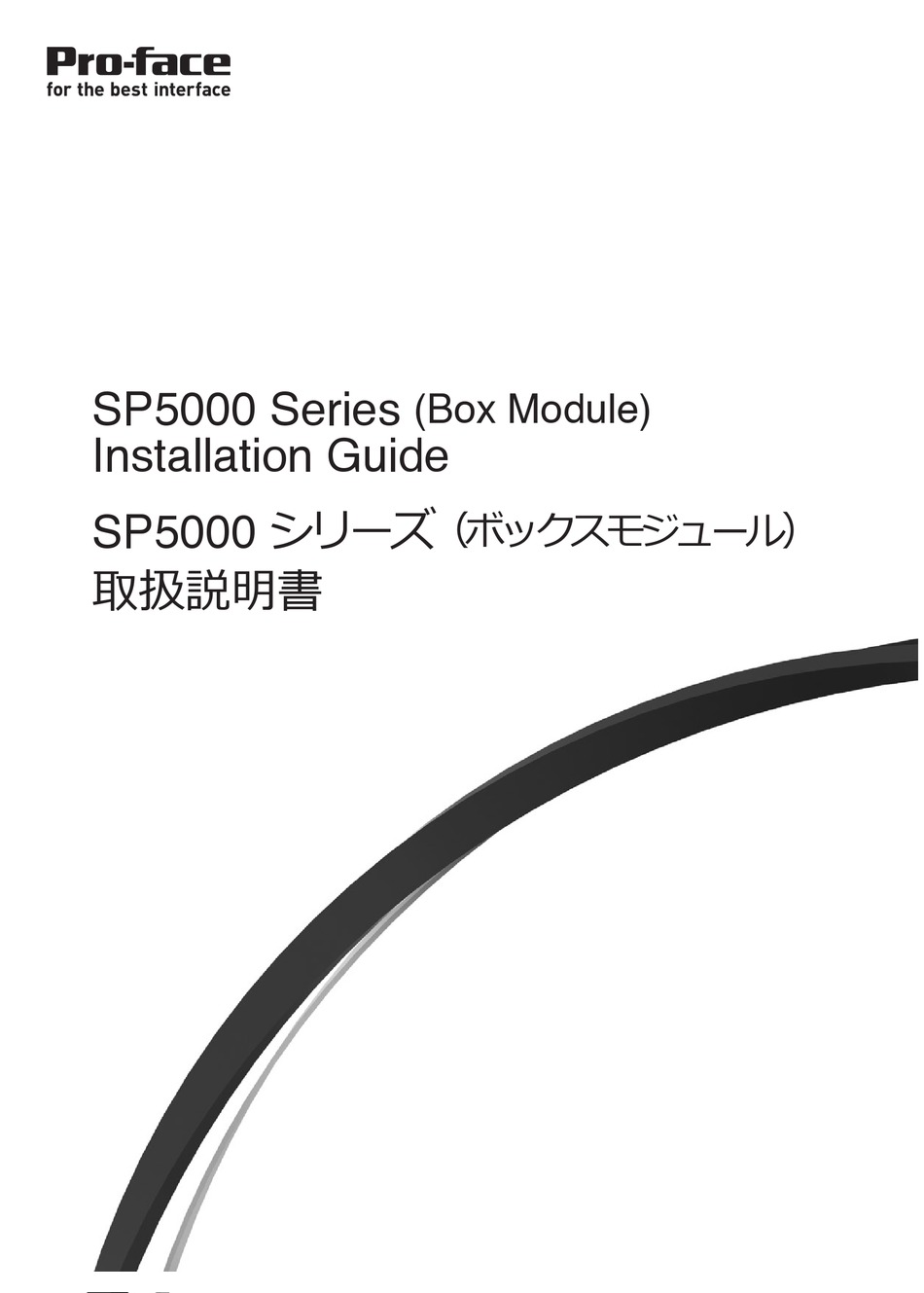

  • Page 1     シリーズ （ボックスモジュール） 取扱説明書...

  • Page 2: Table Of Contents

    Please read the “Warning/Caution Information” on the attached sheet before using the product. Safety Information Important Information..................4 Model Numbers Model Numbers....................6 Overview Package Contents..................7 About the Manual...................8 Global Code ....................8 Language Settings (Only for Open Box) ............8 Part Numbers and Functions SP-5B10 ......................9 SP-5B40 .......................10 LED Indications....................11...

  • Page 3: Safety Information

    Safety Information Important Information Notice Read these instructions carefully, and look at the equipment to become familiar with the device before trying to install, operate, or maintain it. The following special messages may appear throughout this documentation or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.
  • Page 4 PLEASE NOTE Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by Pro-face for any consequences arising out of the use of this material. A qualified person is one who has skills and knowledge related to the construction and operation of electrical equipment and its installation, and has received safety training to recognize and avoid the hazards involved.

  • Page 5: Model Numbers

    PFXSP5B10 Open Box SP-5B40 PFXSP5B40 NOTE : These models can be connected to all models of SP5000 Series Display Module. For the model numbers of the Display Module, refer to Model Names in the SP5000 Series (Display Module) Installation Guide.

  • Page 6: Overview

    USB Clamp Type A (1 port): 2 sets for Power Box, 3 sets for Open Box (1 clip and 1 tie) SP5000 Series (Box Module) Installation Guide (this guide): 1 Warning/Caution Information: 1 End-user License Agreement (only for Open Box): 2 This product has been carefully packed, with special attention to quality.

  • Page 7: About The Manual

    You can download the manual from our website “Otasuke Pro!” at: http://www.pro-face.com/otasuke Global Code A global code is assigned to every Pro-face product as a universal model number. For more information on product models and their matching global codes, please refer to the following URL.

  • Page 8: Part Numbers And Functions

    Part Numbers and Functions SP-5B10 Front Right Bottom A: Auxiliary Output/Speaker Output Interface (AUX) B: Status LED (See page 11) C: Card Access LED (See page 11) D: USB (mini-B) Interface E: Expansion Unit Interface Cover (EXT) F: Storage Card Cover G: System Card Cover H: USB (Type A) Interface Ethernet Interface (Ethernet1)

  • Page 9: Sp-5B40

    Part Numbers and Functions SP-5B40 Front Right Bottom A: Auxiliary Output/Speaker Output Interface (AUX) B: DVI-D Output Interface C: AUDIO Input Interface (L-IN/MIC) D: Status LED (See page 11) E: Card Access LED (See page 11) F: USB (Type A) Interface G: USB (mini-B) Interface H: Expansion Unit Interface Cover (EXT) Storage Card Cover...

  • Page 10: Led Indications

    Part Numbers and Functions LED Indications Status LED Color Indicator SP-5B10 SP-5B40 Logic Logic Operation Program Operation Program Operation Operation Green Offline – Offline – operation operation Flashing STOP STOP operation operation Orange Flashing Software starting up. Power is turned ON. Flashing Major error In Major error...

  • Page 11: Specifications

    Specifications Electrical Specifications Specification SP-5B10 SP-5B40 Rated Input Voltage 12 Vdc (Supply from Display Module) 25 W 35 W When power is not 12.5 W or less 22.5 W or less supplied to external devices Environmental Specifications Surrounding Air 0...60 °C (32...140 °F) Temperature Storage -20...60 °C (-4...140 °F)

  • Page 12: Interface

    Interface Interface Caution DANGER ELECTRIC SHOCK AND FIRE When using the SG terminal to connect an external device to this product: • Verify that a short-circuit loop is not created when you set up the system. • Connect the SG terminal to remote equipment when the external device is not isolated.
  • Page 13 Interface Connection for Serial Interface The Pin configuration of each serial interface is explained on the respective reference page. COM1 COM2 SP-5B10/ RS-232C or RS-422/RS-485 RS-232C or RS-422/RS-485 5B40 (see page 15, 16) (see page 15, 16) The communication method can be switched via your screen editing software. The initial set- ting is RS-422/RS-485.
  • Page 14 Interface RS-232C D-Sub 9 pin plug connector. The communication method can be switched between RS-232C and RS-422/ RS-485 via your screen editing software. RS-232C Number Signal Name Direction Meaning Input Carrier Detect RD(RXD) Input Receive Data SD(TXD) Output Send Data ER(DTR) Output Data Terminal Ready...
  • Page 15 Interface RS-422/485 D-Sub 9 pin plug connector. The communication method can be switched between RS-232C and RS-422/ RS-485 via your screen editing software. RS-422/RS-485 Number Signal Name Direction Meaning Input Receive Data A (+) Input Receive Data B (–) Output Send Data A (+) Output Data Terminal Ready A (+)

  • Page 16: Auxiliary Output/Speaker Output Interface (Aux)

    (Can be BUZZER+ changed via your screen ALARM-/ Output editing BUZZER- software) AUX Connector: PFXZCDCNAUX1 manufactured by Pro-face. Output Circuit 470pF 24 Vdc – A Internal Circuit B Pin Number 6: ALARM+/BUZZER+ C Pin Number 7: ALARM-/BUZZER- D Load E External Power...

  • Page 17: Dvi-D Output Interface (For Sp-5B40)

    Interface DVI-D Output Interface (for SP-5B40) DVI-D 24 pin socket connector Product Side Pin Number Signal Name Direction TMDS DATA 2- Output TMDS DATA 2+ Output TMDS DATA 2 SHIELD DDC Clock Output DDC Data Input/Output TMDS DATA 1- Output TMDS DATA 1+ Output TMDS DATA 1...
  • Page 18 Interface Recommendations: DVI-D cable manufactured by Pro-face (FP-DV01-50 [5 m]) NOTE : • For noise-free operation, use the recommended DVI-D cable. • DVI-D output does not support Hot Plug Detect (HPD). Even when the main unit power is on while connected to an external display, this product outputs the display signal as XGA.

  • Page 19: Installation

    Installation Installation Procedure Installing onto Display Module DANGER HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH • Remove all power from the device before removing any covers or elements of the system, and prior to installing or removing any accessories, hardware, or cables.
  • Page 20 Installation Step Action Pull the LOCK forward on the top of the Box Module to release the lock as illustrated. 1 LOCK Insert the protruding points on the bottom left and right of the Box Module into the two holes on the back of the Display Module to attach the Box Module and Display Module together.
  • Page 21 Fully push on the LOCK on the top of the Box Module to mount the Box Module on the Display Module. 1 LOCK NOTE : Refer to the SP5000 Series Hardware Manual or the SP5000 Series (Display Module) Installation Guide on how to mount the Display Module to the panel.

  • Page 22: Removal Procedure

    Display Module on a clean and level surface with the screen facing down. NOTE : Refer to the SP5000 Series Hardware Manual or the SP5000 Series (Display Module) Installation Guide on how to remove the Display Module from...
  • Page 23 Installation Release the LOCK on the top of the Box Module as illustrated. 1 LOCK Lift up the Box Module in the direction indicated by arrow (A) in the diagram and remove it by sliding in the direction indicated by arrow (B).

  • Page 24: Usb Cable Clamp

    USB Cable Clamp USB Cable Clamp When using a USB device, attach a USB cable clamp to the USB interface to prevent the USB cable from being disconnected. DANGER POTENTIAL FOR EXPLOSION • Verify that the power, input and output (I/O) wiring are in accordance with Class I, Division 2 wiring methods.
  • Page 25 USB Cable Clamp Attaching USB Clamp Type A (1 port) NOTE : Watch your fingers. The edge of the clip is sharp. Step Action Mount the clip to the USB mark connector shell so that it overlaps. The clip matches the 27 to 43.5 mm [1.06 to 1.71 inch] length of the USB connector.
  • Page 26 • You can substitute the tie provided with PFXZCBCLUSA1 (manufactured by Pro-face) or other commercially available ties with a width of 4.8 mm [0.19 in.] and thickness of 1.3 mm [0.05 in.]. While pressing the grip on the clip, insert the cable from step 3 all the way into the USB host interface.

  • Page 27: Aux Connector

    AUX Connector AUX Connector CAUTION ELECTRIC SHOCK • Remove the AUX connector from this product prior to wiring. • Strip wires only to the required length. • Do not solder the wire itself. Failure to follow these instructions can result in injury or equipment damage.
  • Page 28 AUX Connector Recommendations: • AUX Connector: PFXZCDCNAUX1 manufactured by Pro-face • Screwdriver: SZS 0.4 X 2.0 (Product No. 1205202) manufactured by Phoenix Contact If you use another manufacturer, be sure the part has the following dimensions: • point depth: 0.4 mm [0.02 in.] •...

  • Page 29: Standards Standards

    Standards For information on certifications and standards, such as certified models and certificates, see the product markings or visit our website: http://www.pro-face.com/worldwide.html DANGER POTENTIAL FOR EXPLOSION • Suitable for use in Class I, Division 2, Groups A, B, C, and D Hazardous Locations.
  • Page 30 Notes Please be aware that Digital Electronics Corporation shall not be held liable by the user for any damages, losses, or third party claims arising from the uses of this product.
