Dahua HD Cube Network Camera Quick Start Guide

1 Framework

1.1 Device Components

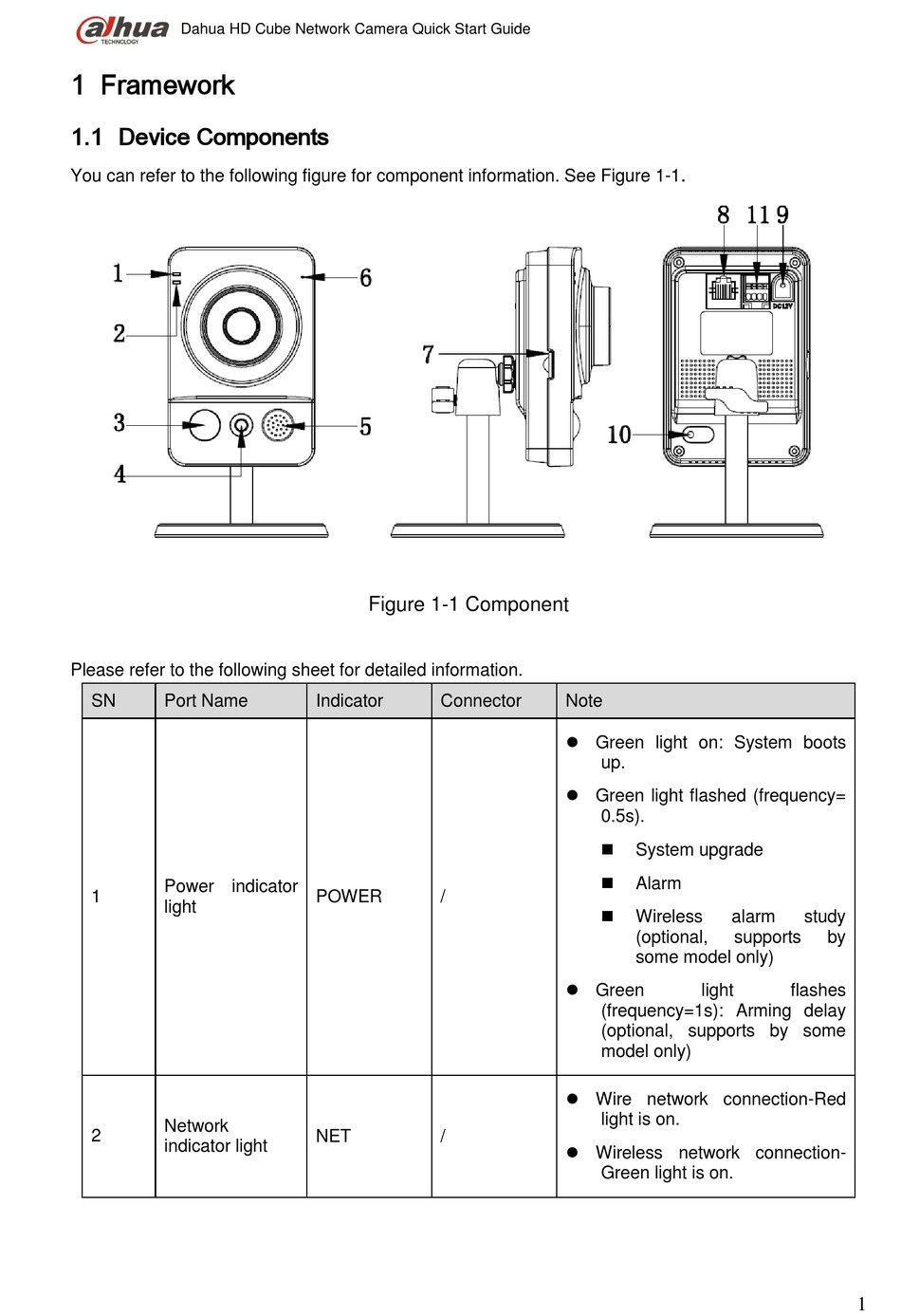

You can refer to the following figure for component information. See Figure 1-1
Please refer to the following sheet for detailed information.
SN Port Name
Power indicator
1
light
Network
2
indicator light
Figure 1-1 Component
Indicator Connector
POWER /
NET /
.
Note
 Green light on: System boots
up.
 Green light flashed (frequency=
0.5s).

System upgrade

Alarm

Wireless alarm
(optional, supports
some model only)
 Green
light
(frequency=1s): Arming delay
(optional, supports by some
model only)
 Wire network connection-Red
light is on.
 Wireless network connection-
Green light is on.
study
by
flashes
1
