Dahua HD Cube Network Camera Quick Start Guide

2 Device Installation

This series camera support two installation modes: wall mount and pendant mount. See Figure 2-1

and Figure 2-2.

Important

Please make sure the installation surface can min support the 3X weight of the camera and the

bracket.

Step 1

Paste the installation map on the installation surface such as wall, ceiling or the wood.

Step 2

Dig holes in the installation surface according to the installation map.

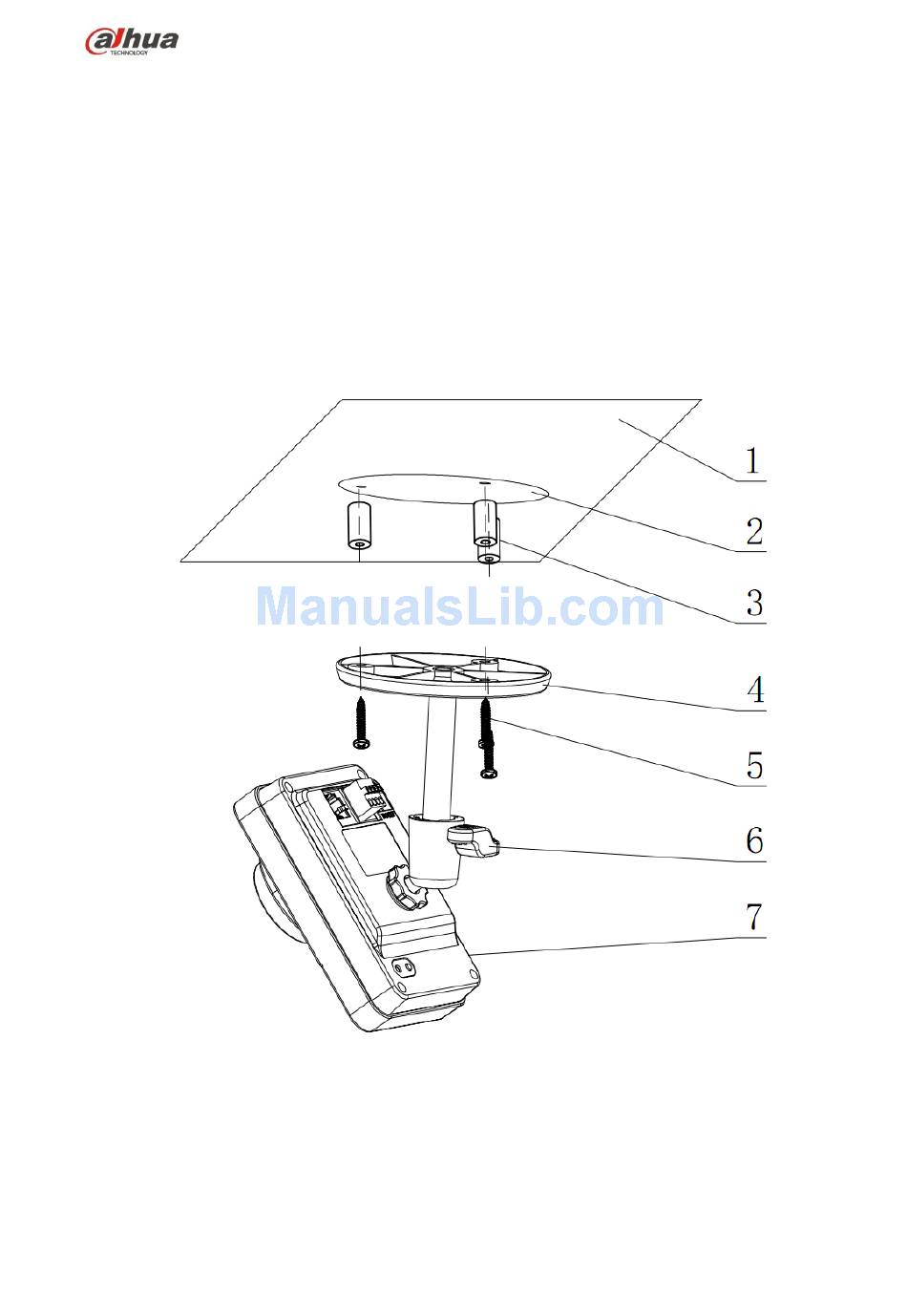

Figure 2-1 Installation 1

Step 3

Insert the expansion bolts from the accessories bag to the holes you just dug. If it is the wood surface

you can skip to the next step.

Step 4
