Summary of Contents for Douwe Egberts Cafitesse 110

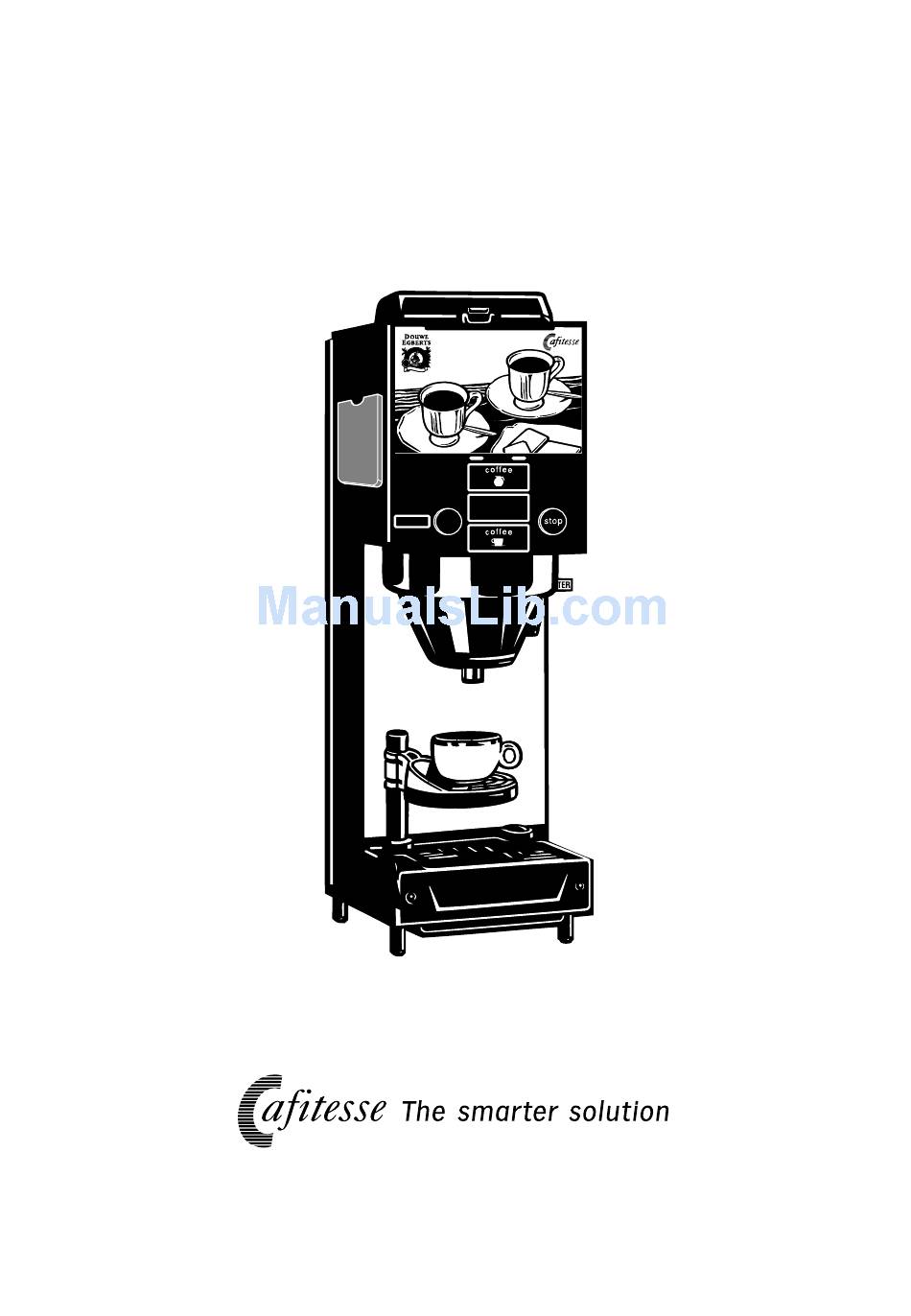

- Page 1 Quick Reference Cards Cafitesse 110 B-2157...
-
Page 2: Description Of Leds
Description of LEDs yellow LED (1) red LED (2) low temperature indication empty indication xxxxx STOP xxxxx Possible faults If the dispenser does not function correctly, check the following points before calling the service: FAULT CAUSE REMEDY - Dispenser too close to the Yellow LED (1) flashes - Move the dispenser wall... - Page 3 Daily Cleaning of Cafitesse 110 (Always clean after end of coffee services) Cleaning the components Remove the drip grid (1) and soak it in hot water containing special Cafitesse cleaning agent (15 min.). Rinse it with clear water, then dry the drip grid. (Fig. 1) Remove the drip tray.
- Page 4 Description of Dispenser Components Cooling compartment lid Glass cover and photo Card holder Empty indication Low temperature indication Stop button Operating panel Counter (option) Key switch (option) Hot water outlet Cup carrier Drip grid Main switch...
- Page 5 Weekly Cleaning of Cafitesse 110 (Always clean after end of coffee services) Cleaning the components Remove the cup carrier and soak it in hot water containing special Cafitesse cleaning agent (15 min.). Rinse it with clear water and dry it.
- Page 6 HACCP Guidelines for Cafitesse 110 Guidelines For correct operation of the dispenser, at least these guidelines must be observed. The operator is held responsible for the correct operation. -18°C HACCP guidelines Storage of Cafitesse products Store coffee and tea in a freezer at -18 °C.
- Page 7 CLEANING RECORD CARD CAFITESSE 110 Declaration: This Cafitesse 110 dispenser is cleaned in compliance with the corresponding cleaning instructions Signature Date Time Daily cleaning Weekly cleaning Monthly management check Date Signature Comment KEEP THIS CARD WITH THE CAFITESSE 110 DISPENSER...
- Page 8 Reference Card Cafitesse Cleaning Agent New bottle Use dosing cap and measuring cup of the empty bottle. Order a new set if these are damaged or missing. Remove the dosing cap. (A) Turn the dosing cap into the bottle. (B) Place the measuring cup over the dosing cap on the bottle.
