One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Universal Evaluation Board for Triple, High Speed Op Amps

FEATURES

Enables quick breadboarding/prototyping
User-defined circuit configuration
Edge-mounted SMA connector provisions
Easy connection to test equipment and other circuits
RoHS compliant

GENERAL DESCRIPTION

The Analog Devices, Inc., EB-O16CP-3Z universal evaluation
board is designed to help users evaluate triple, high speed op
amps offered in 16-lead LFCSP packages. The EB-O16CP-3Z is
a bare board (that is, there are no components soldered to the
board) that enables users to quickly prototype a variety of triple
op amp circuits, which minimizes risk and reduces time to market.

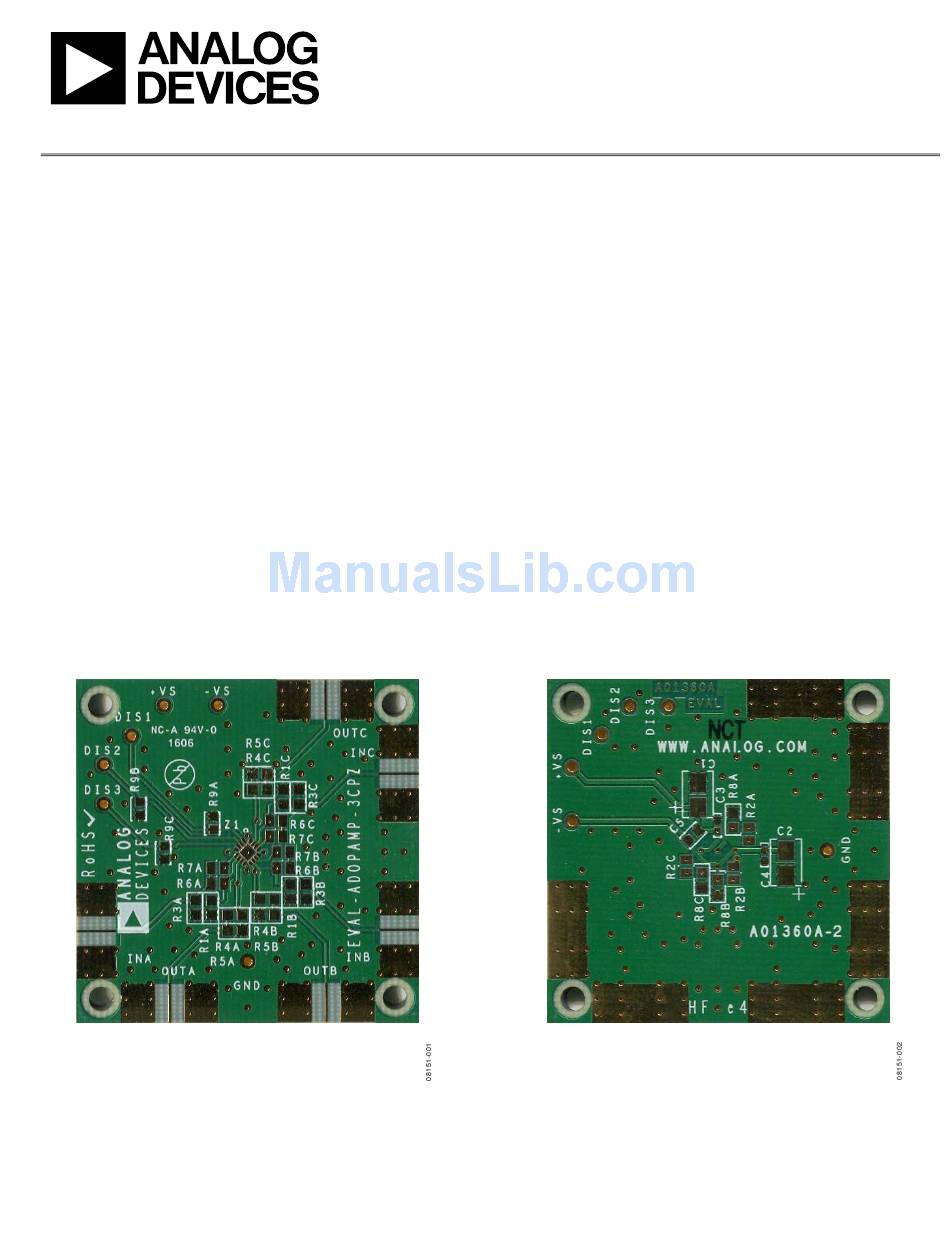

Figure 1 shows the component side of the bare evaluation board,
and Figure 2 shows the circuit side of the bare evaluation board.
NOTES
1. THE EVALUATION BOARD SILKSCREEN PART NUMBER
LABELING ON YOUR BOARD MAY BE DIFFERENT FROM
WHAT IS SHOWN HERE.
Figure 1. Component Side of Evaluation Board
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Offered in 16-Lead LFCSP Packages

EVALUATION BOARD, COMPONENT SIDE AND CIRCUIT SIDE

Evaluation Board User Guide
The 2-layer evaluation board accepts SMA edge-mounted con-
nectors on the inputs and outputs for efficient connection to test
equipment or other circuitry. The ground plane, component
placement, and supply bypassing are designed to minimize
parasitic inductance and capacitance.
Figure 3 shows the evaluation board schematic. The PCB
assembly drawings are shown in Figure 4 and Figure 5. The
layout pattern for the PCB is shown in Figure 6 and Figure 7.
NOTES
1. THE EVALUATION BOARD SILKSCREEN PART NUMBER
LABELING ON YOUR BOARD MAY BE DIFFERENT FROM
WHAT IS SHOWN HERE.
Figure 2. Circuit Side of Evaluation Board
Rev. 0 | Page 1 of 8
UG-025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EB-O16CP-3Z and is the answer not in the manual?

Questions and answers

Related Manuals for Analog Devices EB-O16CP-3Z

Summary of Contents for Analog Devices EB-O16CP-3Z

  • Page 1: Features

    The Analog Devices, Inc., EB-O16CP-3Z universal evaluation board is designed to help users evaluate triple, high speed op amps offered in 16-lead LFCSP packages. The EB-O16CP-3Z is a bare board (that is, there are no components soldered to the board) that enables users to quickly prototype a variety of triple op amp circuits, which minimizes risk and reduces time to market.

  • Page 2: Table Of Contents

    UG-025 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Evaluation Board Schematic, Assembly Drawings, and Layout Patterns ....................3 General Description ................. 1 Ordering Infomration ...............5 Evaluation Board, Component Side and Circuit Side ....1 Bill of Materials ................5 Revision History ................

  • Page 3: Evaluation Board Schematic, Assembly Drawings, And Layout Patterns

    Evaluation Board User Guide UG-025 EVALUATION BOARD SCHEMATIC, ASSEMBLY DRAWINGS, AND LAYOUT PATTERNS Figure 3. Universal Evaluation Board Rev. 0 | Page 3 of 8...
  • Page 4 UG-025 Evaluation Board User Guide Figure 4. Component Side Assembly Drawing Figure 6. Component Side Layout Pattern Figure 5. Circuit Side Assembly Drawing Figure 7. Circuit Side Layout Pattern Rev. 0 | Page 4 of 8...

  • Page 5: Ordering Infomration

    Evaluation Board User Guide UG-025 ORDERING INFORMATION BILL OF MATERIALS Table 1. Quantity Reference Designator Description Package +VS, −VS, PD1/DIS1, PD2/DIS2, PD3/DIS3, GND Connectors C1, C2 10 μF 3528 C3, C4 Capacitor, user defined C0402 Capacitor, user defined C0603 INA, INB, INC, OUTA, OUTB, OUTC, SMA SMT SMA SMT R1A, R1B, R1C, R3A, R3B, R3C, R4A, R4B, R4C,...
  • Page 6 UG-025 Evaluation Board User Guide NOTES Rev. 0 | Page 6 of 8...
  • Page 7 Evaluation Board User Guide UG-025 NOTES Rev. 0 | Page 7 of 8...
  • Page 8 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
