ML-47 TWIG SET

PARTS IDENTIFICATION DIAGRAMS

Open the box and, very gently and carefully, pull out the three foam packages and lay on the floor.
Use a utility knife to cut tape strips that secure foam package tops to foam package bottoms. Lift off foam package top very slowly
and carefully. If you find that the foam package upside down, reverse it before attempting to separate the top and bottom foam trays.
It is of the utmost importance that you treat every package and every twig piece and assembly like you would an egg. Breakage is your
responsibility and is not covered by a Warranty Policy.

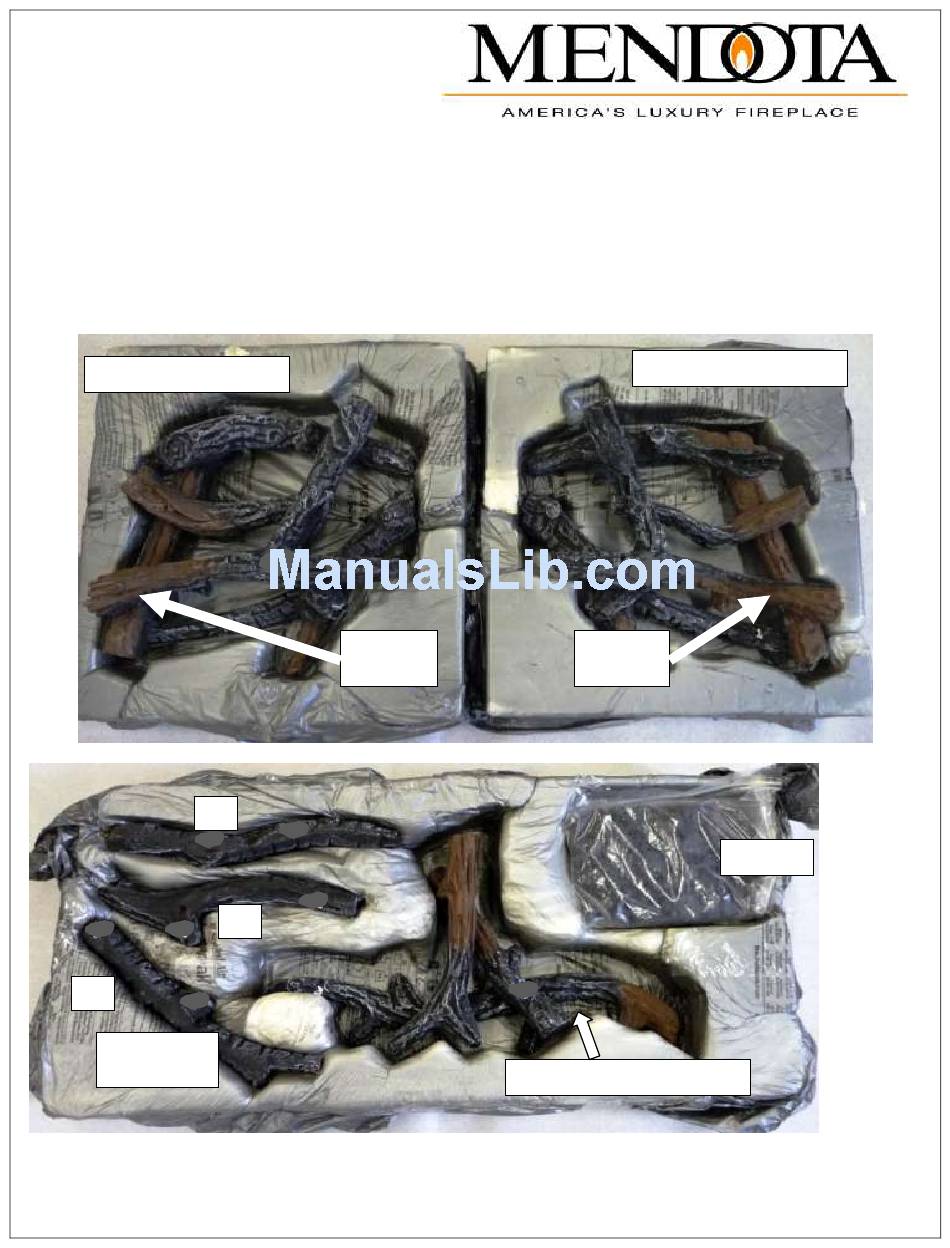

The diagrams, below, show all the parts included with this Twig Set. Right Side Twig Assembly has brown colored bark on the bottom
right corner and Left Side Assembly has brown colored bark on the bottom left corner
LEFT SIDE ASSEMBLY
1
3
TOP TWIGS
#1, 2 & 3
Page 1
BROWN
BARK
2
.
RIGHT SIDE ASSEMBLY
BROWN
BARK
MIDDLE TWIG ASSEMBLY
COALS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ML-47 TWIG SET and is the answer not in the manual?

Questions and answers

Summary of Contents for Mendota ML-47 TWIG SET

  • Page 1: Installation Instructions

    ML-47 TWIG SET INSTALLATION INSTRUCTIONS PARTS IDENTIFICATION DIAGRAMS Open the box and, very gently and carefully, pull out the three foam packages and lay on the floor. Use a utility knife to cut tape strips that secure foam package tops to foam package bottoms. Lift off foam package top very slowly and carefully.
  • Page 2 INSTALLATION INSTRUCTIONS: Caution: The log pieces are fragile. Exercise extreme care when opening the log set package and removing individual log pieces. Introduction The ML-47 Twig Log Set is designed and created to replicate a natural burnt twig pile. The colors selected include black shades, grey shades, brown shades and red shades.
  • Page 3 Installation Instruction 1. Install the burner floor plate (Burner Airbox) and one Panoramic Curved Liner inside the firebox per instructions included with the Panoramic Curved Liner Kit. 2. Place “Middle Twig Assembly” directly in the middle of the burner and its left rear end touching the rear wall of the Panoramic Curved Liner.
  • Page 4 4. Place “Right Side Assembly” on the right side of burner as shown, below. This assembly has legs that sit directly on top of the burner and floor plate. 5. The three assemblies shall be positioned relative to one another as depicted, below. Page 4...
  • Page 5 6. Place Individual Twig Pieces #1, 2 & 3, as shown below. Twig #1 sits on the flat floor in front of the front end of Middle Assembly. Twig #2 sits on top of flat floor at its left end and on top of Middle Assembly at its right end. Twig #3 sits on top flat floor at its right end and on top of Middle Assembly at its left end.
