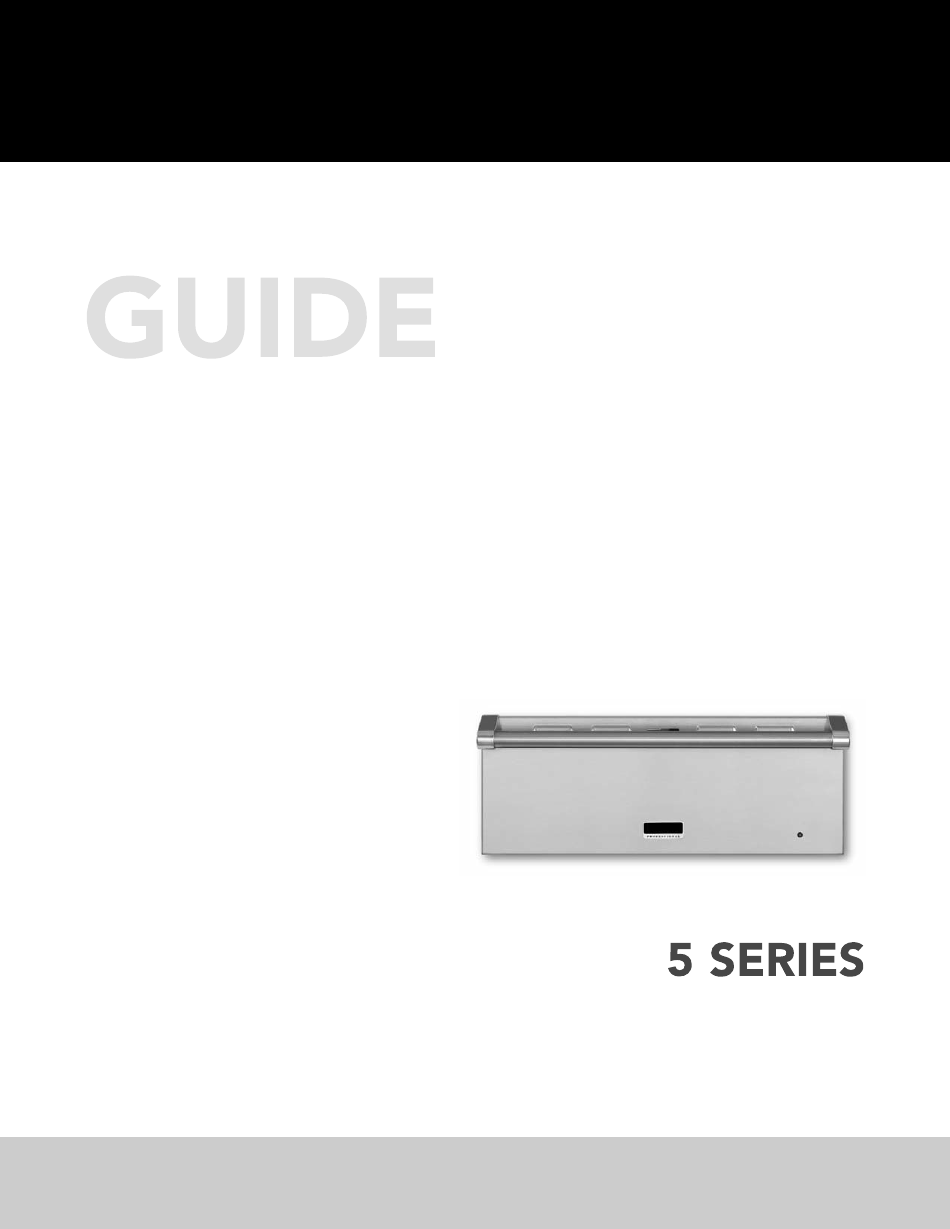

- Page 1 Installation Professional Built-In Electric Warming Drawers (Indoor and Outdoor Models) VEWD5 2 7 / CVEWD5 2 7 / VEWD530 / CVEWD530 VEWDO530 / CVEWDO530 / VEWDO536 / CVEWDO536...
-
Page 2: Table Of Contents
Table of Contents Warnings & Important Safety Instructions _______________________________________________3 Dimensions _________________________________________________________________________4 Specifications _______________________________________________________________________5 Cutout Dimensions (VEWD/VEWDO) ___________________________________________________6 Electrical Requirements ______________________________________________________________7 General Information__________________________________________________________________8 Installation (VEWD/VEWDO) __________________________________________________________9 Final Preparation ___________________________________________________________________10 Service & Registration_______________________________________________________________11... -
Page 3: Warnings & Important Safety Instructions
IMPORTANT – Read and Follow! • The installer must leave these instructions • Before beginning, please read these with the consumer who should retain for instructions completely and carefully. local inspector’s use and for future reference. Your safety and the safety of others is In Canada: Installation must be in accordance very important. -
Page 4: Dimensions
Dimensions - VEWD Custom VEWD527/530 - 1 / ( 2 6 4 ” VEWD527 VEWD530 Overall 26-1/2” 29-1/2” width A (67.3 cm) (74.9 cm) 8 - 3 1 / 3 ( 2 2 2 ” 4 ” - 1 / ( 5 9 4 ”... -
Page 5: Specifications
Dimensions Rear View VEWD/VEWDO 8-31/32” 120V Electrical Opening (22.8 cm) (When facing cabinet, opening is 2” located on right side.) (5.1 cm) 2” (5.1 cm) VEWD527 VEWD530/ VEWDO530/ Overall 24-7/8” 27-7/8” width C (63.2 cm) (70.8 cm) Specifications Description VEWD527... -
Page 6: Cutout Dimensions (Vewd/Vewdo)
Cutout Dimensions - VEWD/VEWDO Indoor VEWD527 VEWD530 Cutout width (A) 25-1/4” (64.1 cm) 28-1/4” (71.8 cm) Cutout depth (B) 23-1/2” (59.7 cm) 23-1/2” (59.7 cm) Cutout height (C) 9-1/4” (23.5 cm) 9-1/4” (23.5 cm) Flush Mount Option: Note: To install the warming drawer in a flush mount application, a flush mount accessory kit is required and sold separately. -
Page 7: Electrical Requirements
To avoid the risk of electrical wtih ground circuit. Maximum amp usage. shock, personal injury or death; verify electrical power is turned VEWD527/ VEWD530/ VEWDO536 off at the breaker box until the range is VEWDO530 installed and ready to operate, installation by an authorized installer only. -
Page 8: General Information
General Information • When installing this unit directly below READ AND FOLLOW ALL WARNING other units, only install with Viking AND CAUTION INFORMATION Range, LLC built-in products. WHEN INSTALLING THIS APPLIANCE. • Remove warming drawer carefully from carton. Remove all loose packaging and Moving, Handling and Unpacking accessories. -
Page 9: Installation (Vewd/Vewdo)
Installation - VEWD & VEWDO Pull out warming drawer Slide finger along right and left side until you reach the pan until fully extended. black hand latches (located at the front of the rails). Pull up on both the right and left latches and pull out drawer pan support. -
Page 10: Final Preparation
Installation - VEWD & VEWDO Push supply cord toward terminal Slide cavity assembly into the cabinet opening. block to relieve strain, reattach supply cord strain relief bracket over supply cord. Secure the warming drawer using four Replace drawer assembly. #8 mounting screws (four screws provided). Final Preparation •... -
Page 11: Service & Registration
Only authorized replacement parts may be used in performing service on the appliance. All servicing should be referred to a qualified technician. Contact Viking Range, LLC at 1-888-(845-4641), for the nearest service parts distributor in your area, visit online at vikingrange.com or write to:... - Page 12 Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For more product information, call 1-888-(845-4641) or visit our web site at vikingrange.com in the US of brigade.ca in Canada F20664F EN (101515)
