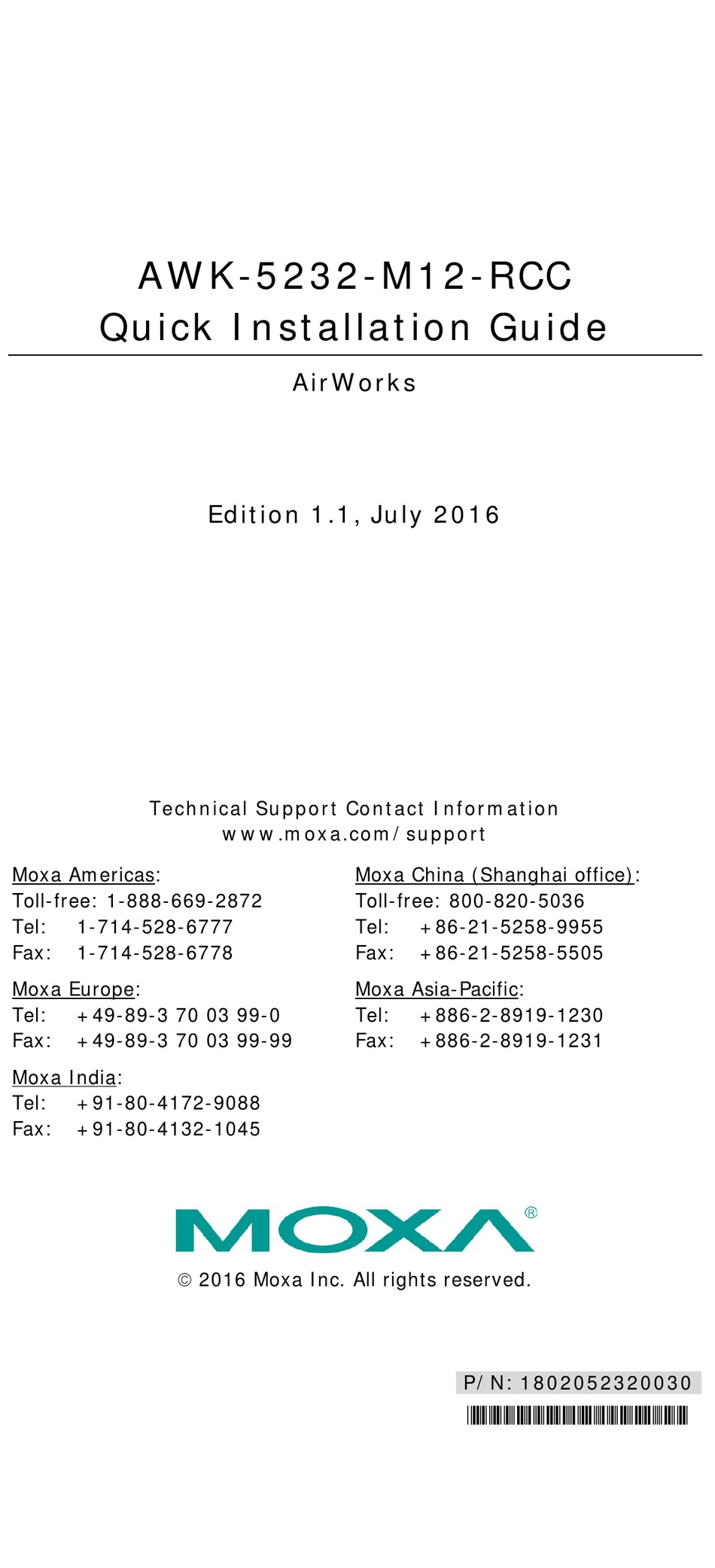

AWK-5232-M12-RCC Quick Installation Guide AirWorks Edition 1.1, July 2016 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax:... -
Page 2: Package Checklist

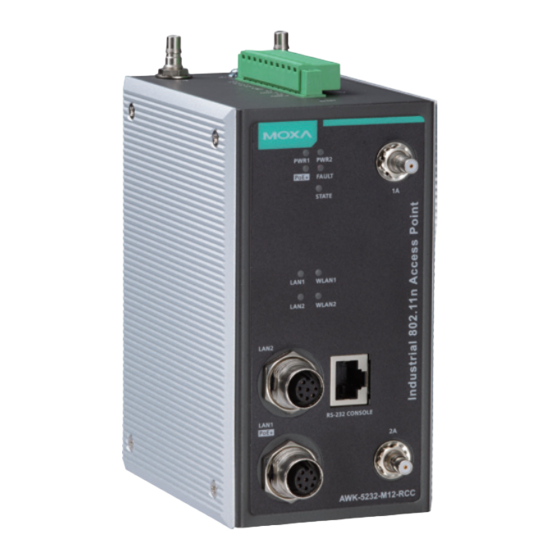

Overview The AWK-5232-M12-RCC dual-RF wireless AP/Bridge/Client meets the growing need for faster data transmission speeds and wider coverage by supporting IEEE 802.11n technology with a net data rate of up to 300 Mbps. The AWK-5232-M12-RCC is rated to operate at temperatures ranging from 0 to 60°C for standard models and -40 to 75°C for extended temperature models, and it is rugged enough for industrial applications. - Page 3 Step 4: Use the web-based manager to configure AWK-5232-M12-RCC Open your computer’s web browser and then type http://192.168.127.253 in the address field to access the homepage of the web-based management. Before the homepage opens, you will need to enter the username and password. For first-time configuration, enter the default username and password and then click on the Login button: Username: admin...
- Page 4 to Client mode and then configure the notebooks and AWK-5232-M12-RCCs properly. After setting up the testing environment, open a DOS window on notebook B. At the prompt, type ping IP address of notebook A and then press Enter key. A “Reply from IP address …” response means the communication was successful.
- Page 5 Mounting Dimensions (unit = mm) DIN-Rail Mounting The aluminum DIN-Rail attachment plate should be fixed to the back panel of the AWK-5232-M12-RCC when you take it out of the box. If you need to reattach the DIN-Rail attachment plate to the AWK-5232-M12-RCC, make sure the stiff metal spring is situated towards the top, as shown in the figures below.
- Page 6 Wall Mounting (optional) For transportation applications that require an EN50155 certification report, you should purchase the optional wall mount for the AWK-5232-M12-RCC, since the wall mount has passed EN50155 testing. The wall mount is also convenient for other applications that require mounting the AWK-5232-M12-RCC to a wall.
- Page 7 WARNING Safety First! Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowed for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment. You should also pay attention to the following items: •...
- Page 8 Wiring the Redundant Power Inputs The top two pairs of contacts of the 10-contact terminal block connector on the AWK-5232-M12-RCC’s top panel are used for the AWK-5232-M12-RCC’s two DC inputs. Top and front views of the terminal block connector is shown here. STEP 1: Insert the negative/positive DC wires into the V-/V+ terminals.
- Page 9 Cable Holder Installation (Optional) You can attach the cable holder to the bottom of the AWK-5232-M12-RCC. This helps to keep cabling neat and avoid accidents that result from untidy cables. STEP 1: Screw the cable holder onto the bottom of the AWK-5232-M12-RCC. STEP 2: After mounting the AWK-5232-M12-RCC and plugging in the LAN cable, tighten the cable along the device and wall.
-
Page 10: Led Indicators
RS-232 Connection The AWK-5232-M12-RCC has one RS-232 (8-pin RJ45) console port located on the front panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable to connect the Moxa AWK-5232-M12-RCC’s console port to your PC’s COM port. You may then use a console terminal program to access the AWK-5232-M12-RCC for console configuration. -
Page 11: Specifications
Color State Description WLAN2 Green/Amber Green On WLAN2 function is in Client mode. Blinking WLAN2’s data communication is Green running in Client mode. Amber On WLAN2 function is in AP/Bridge mode. Blinking WLAN2’s data communication is Amber running in AP/Bridge mode. WLAN2 is not in use. - Page 12 Operating Channels (central frequency) 2.412 to 2.462 GHz (11 channels) 5.18 to 5.24 GHz (4 channels) 2.412 to 2.472 GHz (13 channels) 5.18 to 5.24 GHz (4 channels) 2.412 to 2.472 GHz (13 channels, OFDM) 2.412 to 2.484 GHz (14 channels, DSSS) 5.18 to 5.24 GHz (4 channels for W52) Security •...
-
Page 13: Physical Characteristics
-69 dBm @ MCS15 20 MHz, -71 dBm @ MCS7 20 We do not support channel bonding under 2.4 Protocol Support General Protocols Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP AP-only Protocols ARP, BOOTP, DHCP, STP/RSTP (IEEE 802.1D/w) Interface Connector for External Antennas... - Page 14 ATTENTION The AWK-5232-M12-RCC is NOT a portable mobile device and should be located at least 20 cm away from the human body. The AWK-5232-M12-RCC is NOT designed for the general public. To deploy AWK-5232-M12-RCCs and establish a wireless network safely, a well-trained technician is required for installation. - 14 -...
