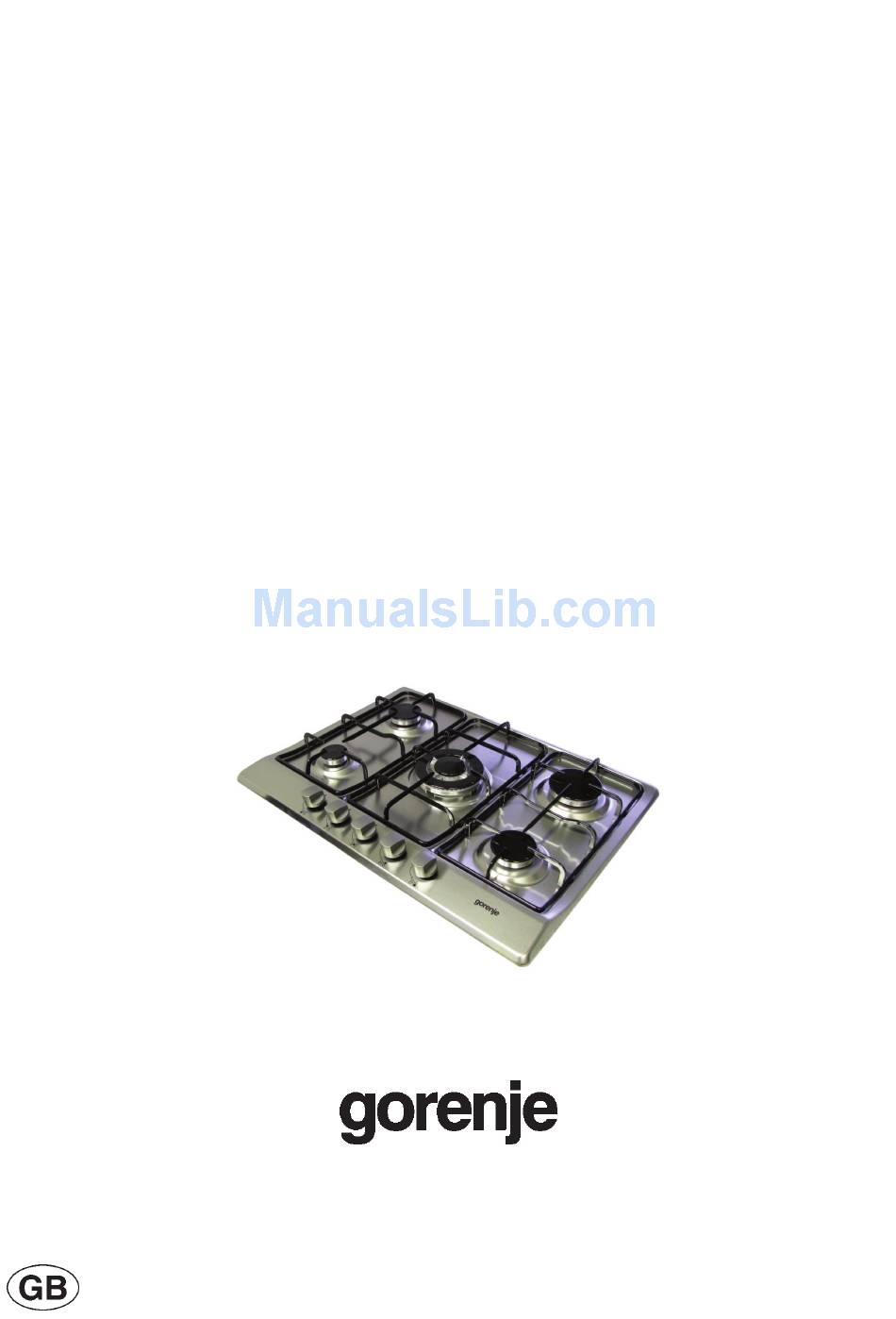

- Page 1 Instructions for the installation and advice for the maintenance G760AX1 - 246148 Instructions Manual G760AX1 - 246148 COD. 04037GBGOA - 26.01.2009...
- Page 2 DESCRIPTION OF THE HOT PLATES TYPE: G760AX1-246148 1 Ultra rapid gas burner of 3100 W 2 Rapid gas burner of 2800 W 3 Semirapid gas burner right front of 1400 W 4 Semirapid gas burner left back of 1750 W...
- Page 3 1) BURNERS - When the pan comes to the boil, set the knob to the reduced rate position (small flame fig. 1). A diagram is screen-printed above each knob on - Always place a lid on the pans. the front panel. This diagram indicates to which - Use only pan with a flat bottom.
- Page 4 Notes: Use of a gas cooking appliance produces heat and moisture in the room in which it is installed. The room must therefore be well ventilated by keeping the natural air vents clear (fig. 3) and by activating the mechanical aeration device (suction hood or electric fan fig. 4 and fig. 5). Intensive and lengthy use of the appliance may require additional ventilation.
- Page 5 CLEANING IMPORTANT: WARNINGS: Comply with the following instructions, before Always disconnect the appliance from the gas remounting the parts: and electricity mains before carrying out any - Check that burner head slots “T” (fig. 6) have cleaning operation. not become clogged by foreign bodies. 2) HOT PLATE - Check that enamelled burner cap “C”(fig.
-
Page 6: Installation
INSTALLATION TECHNICAL INFORMATION FOR THE 4) FIXING THE HOT PLATE INSTALLER The hot plate has a special seal which prevents liquid from getting into the cabinet. Strictly comply Installation, adjustments of controls and with the following instructions in order to correctly maintenance must only be carried out by a qualified engineer. -
Page 7: Room Ventilation
INSTALLATION I M P O RTA N T I N S TA L L AT I O N 7) GAS CONNECTION I N S T R U C T I O N S Before connecting the appliance, check that the values on the data label affixed to the underside The installer should note that the appliance that of the hot plate correspond to those of the gas... -
Page 8: Electrical Connection
INSTALLATION 8) ELECTRICAL CONNECTION When the appliance is connected straight to the electricity main: The electrical connections of the appliance - Install an omnipolar circuit-breaker between the must be carried out in compliance with the appliance and the electricity main. This circuit- provisions and standards in force. - Page 9 ADJUSTMENTS Always disconnect the appliance from the - Insert a small screwdriver “D” into hole “C” (fig. 12) electricity main before making any adjustments. and turn the throttle screw to the right or left until All seals must be replaced by the technician at the burner flame has been adequately regulated to the end of any adjustments or regulations.
-
Page 10: Replacing The Injectors
CONVERSIONS 10) REPLACING THE INJECTORS paragraphs 9. The technician must reset any seals on the regulating or pre-regulating devices. The burners can be adapted to different types of The envelope with the injectors and the labels gas by mounting injectors suited to the type of gas can be included in the kit, or at disposal to the in question. - Page 11 SERVICING Always disconnect the appliance from the Greasing the taps (see fig. 18 - 19) electricity and gas mains before proceeding If a tap becomes stiff to operate, it must be with any servicing operation. immediately greased in compliance with the following instructions: - Remove the tap.
- Page 12 SERVICING CABLE TYPES AND SECTIONS TYPE OF TYPE OF SINGLE - PHASE HOT PLATE CABLE POWER SUPPLY Gas hot plate H05 RR - F Section 3 x 0.75 mm ATTENTION!!! If the power supply cable is replaced, the installer should leave the ground wire longer than the phase conductors (fig.
- Page 13 TECHNICAL DATA ON THE DATA LABEL 5 BURNERS CATEGORY: 2H3+ BUTANE = 28 - 30 mbar PROPANE = 37 mbar NATURAL = 20 mbar Σ Qn Gas Natural = 10.05 kW LPG = 731 g/h Σ Qn VOLTAGE = 220 - 240 V ~ FREQUENCY = 50/60 Hz...
- Page 14 TECHNICAL DATA FOR THE APPLIANCE GAS REGULATION...
-
Page 15: Technical Assistance And Spare Parts
TECHNICAL ASSISTANCE AND SPARE PARTS Before leaving the factory, this appliance will have been tested and regulated by expert and specialized personnel in order to guarantee the best performances. Any repairs or adjustments which may be subsequently required may only be carried out by qualified personnel with the utmost care and attention.
