Section 19: Aileron Control System Installation - Model Tech Simply Magic Instructions For Final Assembly

SECTION 19: AILERON CONTROL SYSTEM INSTALLATION

(2) 3-3/8" Threaded Wires w/90º Bend
(2) Nylon Control Horns w/Backplates
(4) M2 x 12 Machine Screws
# 1 Phillips Head Screwdriver
Needle Nose Pliers
Excel Modeling Knife
Electric Drill

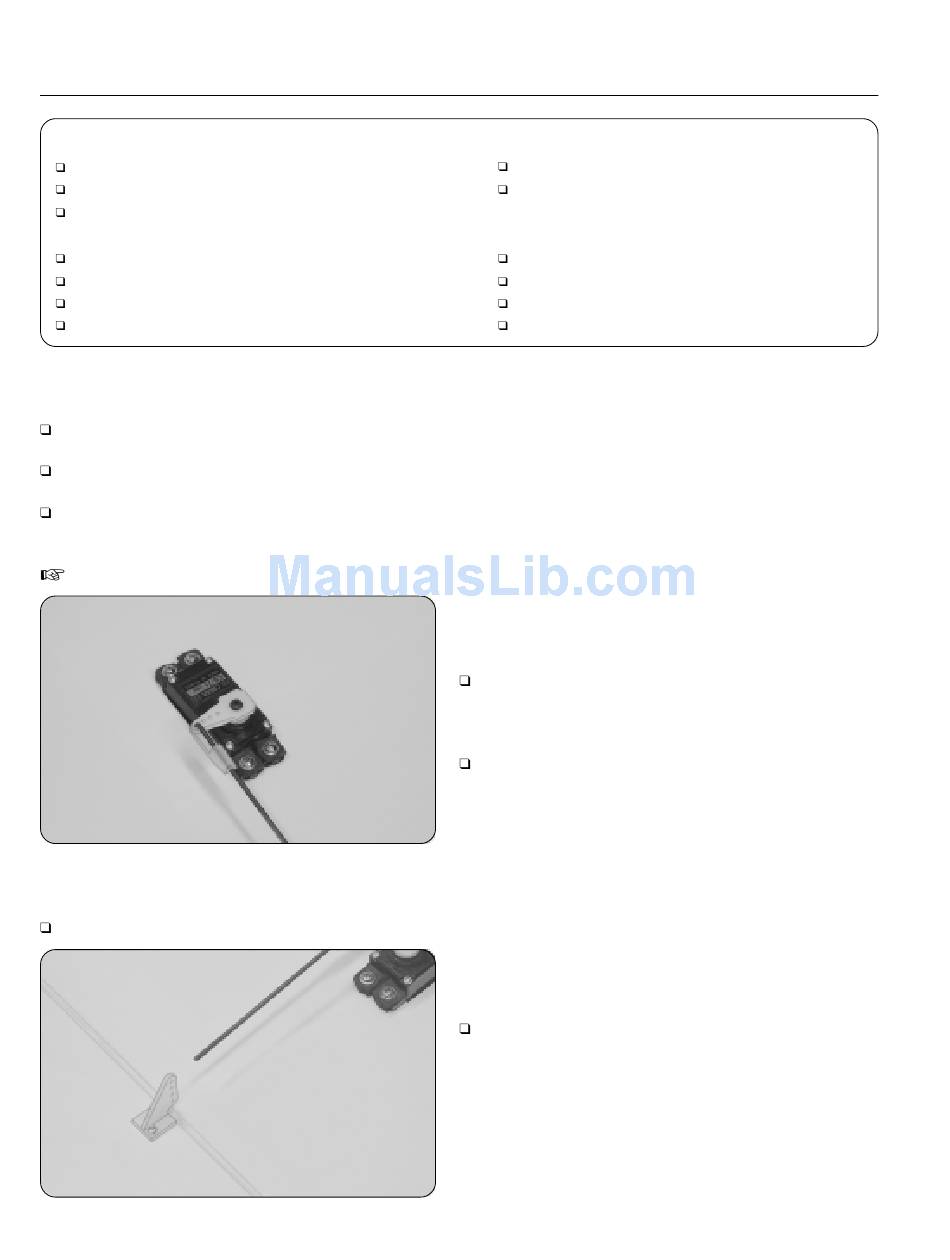

Step 1: Installing the Aileron Pushrod Wires
Using a modeling knife, cut away all but one arm from a large "4-point" servo horn.
Enlarge the fourth hole out from the center of the servo arm using a 5/64" diameter drill bit.
Install the 90º bend in one 3-3/8" long aileron pushrod wire into the hole that you just enlarged, using the snap keeper
provided. When installing the snap keeper, make sure it "snaps" firmly into place over the pushrod wire.
The pushrod wire should be on top of the servo arm.
Step 2: Installing the Control Horns & Clevises
Use a couple of pieces of masking tape to hold the aileron centered.
30
Visit our website at http://modeltech.globalhobby.com or for Customer Service at http://globalservices.globalhobby.com
YOU'LL NEED THE FOLLOWING PARTS FROM THE KIT:
YOU'LL NEED THE FOLLOWING TOOLS AND SUPPLIES:
(2) Nylon Clevises
(2) Nylon 90º Snap Keepers
5/64" Drill Bit
Ruler
Pencil
Masking Tape
Center the aileron servo and install the servo arm
assembly making sure the servo arm is centered and points
toward the wing tip.
Install and tighten the servo arm retaining screw.
Mount the control horn to the aileron, directly behind the
pushrod wire, using two M2 x 12 machine screws. Make sure
the control horn is parallel to the hinge line and that the clevis
attachment holes are lined up over the hinge line. The
centerline of the control horn should be approximately 5-1/8"
out from the inside edge of the aileron.
