Service Menus

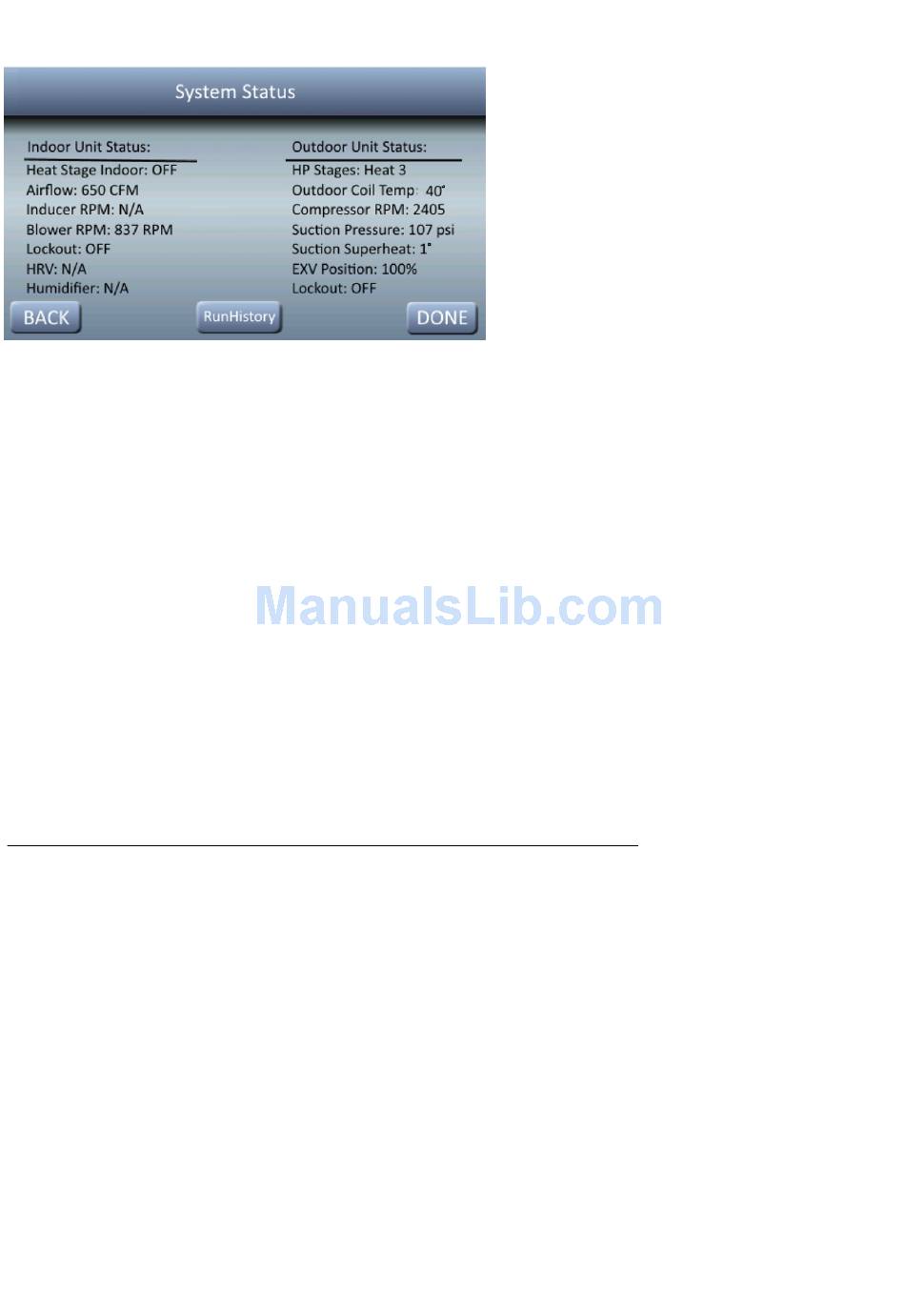

Status

The Status screens will show all of the current operating pa-
rameters of each installed piece of equipment.

Heat Stage (Furnace):

Displays stage of heat that the furnace is currently delivering.
OFF, LOW, HIGH
% capacity (modulating furnace only)

Electric Heat (Fan Coil):

Displays stages of electric heat that the fan coil is currently
delivering.
OFF, LOW, MED, HIGH
Airflow CFM (select equipment models, only):
Cubic Feet per Minute of air the blower is currently deliver-
ing.

Inducer RPM (Modulating furnaces only):

Inducer motor RPM value.
