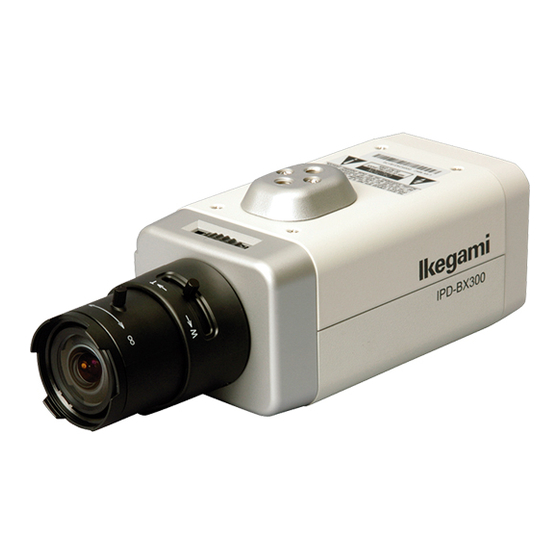

Instruction Manual (Introduction Part) Network Camera IPD-BX300 OUTDOOR USE WARNING WARNING─TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. - Page 2 Thank you very much for choosing Ikegami network camera. In order to leverage its capability for the maximum extent, please read the “Instruction Manual” thoroughly. Safety Precautions (Be sure to follow all the contents.) To Use the Product Safely Before start using the product, thoroughly read this “To Use the Product Safely” and the “Instruction Manual”...
- Page 3 Usage Note Warning ● Do not remove the case and rear panel of the device! There are sections with high voltage inside, which causes electric shock. Consult your dealer or sales person for inspection, servicing, and repair of inside of the device.
- Page 4 Installation Warning ● Do not install the device on an unstable location! The device may be dropped or fallen over, causing injury. ● Do not place a heavy object on the power supply cord! Do not place this device on the power supply cord! The cord may get damaged, causing fire or electric shock.
- Page 5 Measures Taken in Abnormal Conditions Warning ● When the device is dropped or when the case is damaged, turn off the power switch and disconnect the power supply plug! If the device is continuously used without taking appropriate actions, fire or electric shock may be caused.
- Page 6 ● Do not locate the power supply cord near the heat generating device! The cord coating may melt, causing fire or electric shock. ● When disconnecting the power supply plug, do not pull out by holding the power supply cord! The cord may get damaged, causing fire or electric shock.
- Page 7 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 8: Table Of Contents
Table of Contents Introduction Standard Configuration ....................... 8 About the Instruction Manual ....................8 Caution on Handling......................8 Disclaimer..........................9 Protection of Privacy Information ..................9 Cautions of Network Connection..................9 Limiting the Applications of the Device................9 Names and Functions of Sections Connection Camera Power Supply .......................11 Example of Connection ..................... -
Page 9: Introduction
For the detailed operations and settings of the device, please download the manual from the following URL. http://www.ikegami.co.jp/en/products/download/security.html 1.3 Caution on Handling ● Do not use this device at a place, where the device may get poured with water, or a humid place. -
Page 10: Disclaimer
System failure, accident, and trouble caused by the connection with other maker’s equipment b. Accident and trouble caused by wrong use or negligence c. Disassembly and repair that are not authorized by Ikegami d. Abusive use of the monitored video, which was taken with this device, by the third party and damage and injury caused by such abusive use e. -
Page 11: Names And Functions Of Sections
2 Names and Functions of Sections ① Lens mount Various CS mount lens can be used. ② Flange focus fixing screw Adjust the camera flange focus and then fix with these screws. ③ Flange focus adjustment mechanism Adjust the flange focus when the focus cannot be adjusted by using the focus ring at the lens side. ④... -
Page 12: Connection
⑧ Default button Pressing this button for approximately five seconds returns to the factory default values. ⑨ Reset button Press this button when restarting the camera. ⑩ Power indicator When the power is supplied to the camera, the red LED lights up. ⑪... -
Page 13: Example Of Connection
3.2 Example of Connection Example of connection between this device and the network recorder (NVR) IPD-BX300 Ethernet cable (Category 5 or higher) HDMI monitor IPD-BX300 Ethernet cable (Category 5 or higher) Model INR-1008P INR-1008P or NR-1016P 3.3 IP Address When the IP camera is used, setting of the IP address is necessary. -
Page 14: Logging In
3.4 Logging In 1. Start up the browser (Internet Explorer, etc.) and in the address bar, enter the IP address of the network camera to change the setting. 2. Enter the user name and the password. User name :admin Password :admin 3. -
Page 15: Specifications/Exterior
5 Specifications/Exterior 5.1 Specifications (1) Imaging element 1/3 type CMOS sensor (2) Scanning method Progressive scan (3) Synchronizing method Internal synchronization: Crystal-lock (4) Analog video output 1.0 Vp-p/75Ω (for angle adjustment) (5) S/N ratio 50 dB (p-p/rms) or higher (6) Lowest object illuminance (Color) 0.6Lx/F1.2 (Electron sensitivity OFF, VBS output 50%) (Black and white) 0.07Lx/F1.2 (Electron sensitivity OFF, VBS output 25%) (7) WDR function... -
Page 16: Exterior
(27) Input/output connector - ETHERNET :RJ-45 (Auto-MDI/MDIX) - VIDEO OUT :BNC (for angle adjustment) - MIC/ALARM :8P block terminal block 5.2 Exterior... - Page 17 << Memo >>...
- Page 18 << Memo >>...
- Page 20 37 Brook Avenue, Maywood, N.J. 07607, U.S.A. Phone: (201) 368-9171, FAX (201) 569-1626 www.ikegami.com ■ Ikegami Electronics (Europe) GmbH Ikegami Strasse 1, D-41460 Neuss, Germany Phone: 02131-123-0, FAX 02131-102820 www.ikegami.de ■ Ikegami Electronics U.K. Office: Unit E1, Cologne Court, Brooklands Close, Windmill Road, Sunbury-on-Thames, Middlesex, TW16 7EB, U.K.
