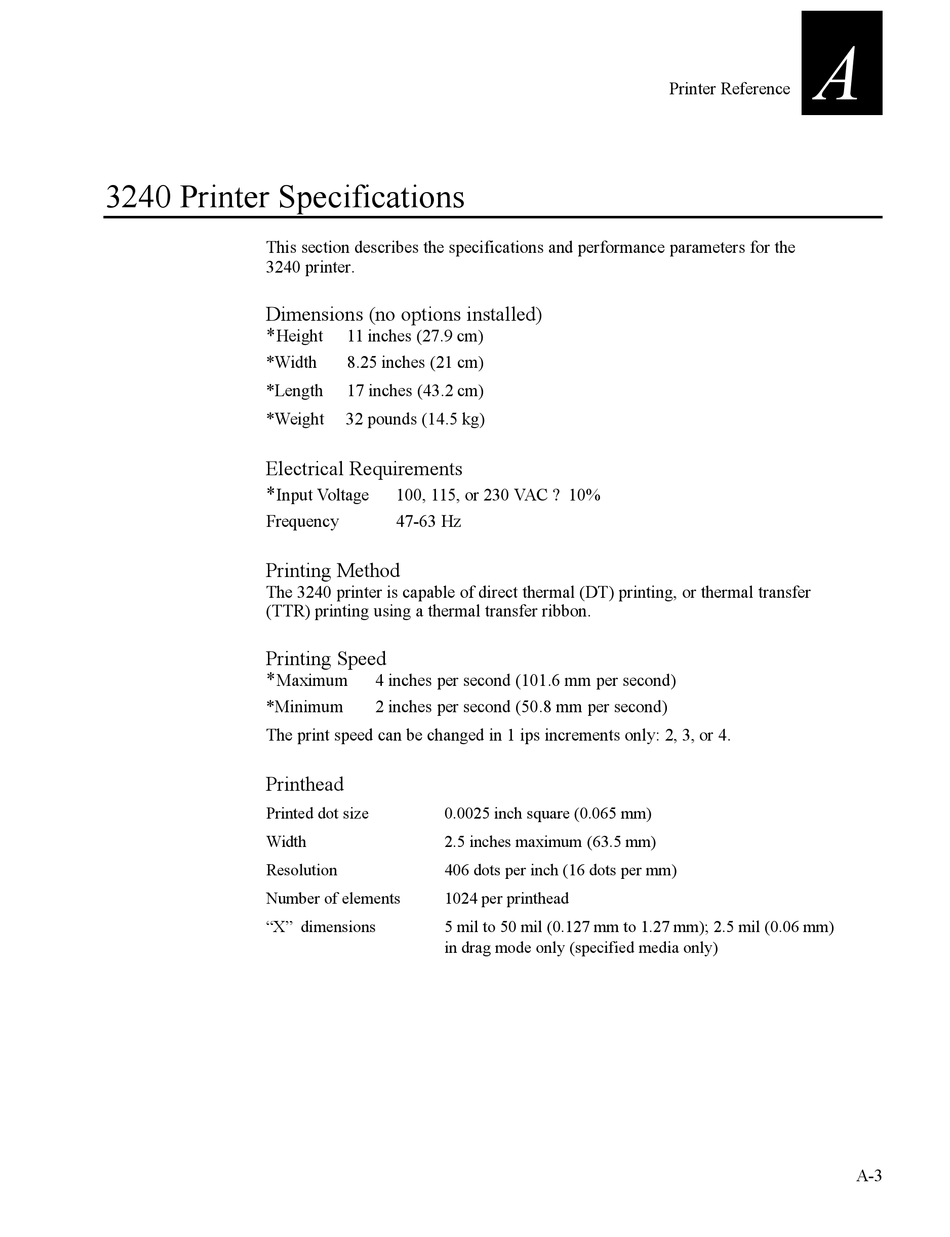

3240 Printer Specifications

This section describes the specifications and performance parameters for the
3240 printer.
Dimensions (no options installed)
*
Height
*Width
*Length
*Weight
Electrical Requirements
*
Input Voltage
Frequency
Printing Method
The 3240 printer is capable of direct thermal (DT) printing, or thermal transfer
(TTR) printing using a thermal transfer ribbon.
Printing Speed
*
Maximum
*Minimum
The print speed can be changed in 1 ips increments only: 2, 3, or 4.
Printhead
Printed dot size
Width
Resolution
Number of elements
"X" dimensions
11 inches (27.9 cm)
8.25 inches (21 cm)
17 inches (43.2 cm)
32 pounds (14.5 kg)
100, 115, or 230 VAC  10%
47-63 Hz
4 inches per second (101.6 mm per second)
2 inches per second (50.8 mm per second)
0.0025 inch square (0.065 mm)
2.5 inches maximum (63.5 mm)
406 dots per inch (16 dots per mm)
1024 per printhead
5 mil to 50 mil (0.127 mm to 1.27 mm); 2.5 mil (0.06 mm)
in drag mode only (specified media only)
A
Printer Reference
A-3
