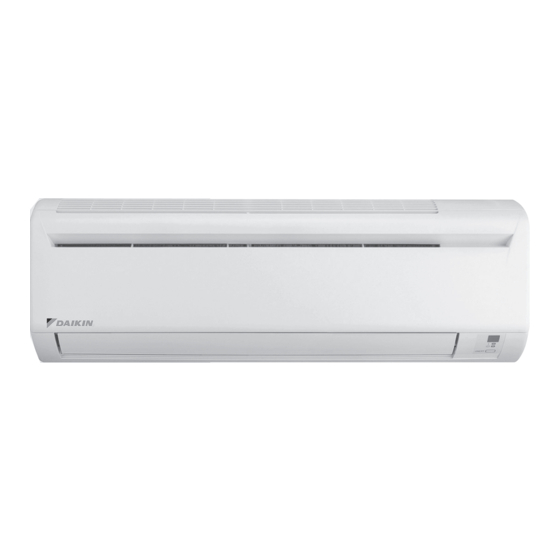

Nomenclature Nomenclature Indoor FT(Y) 10 J X V1 Power Supply V1: 1 phase 50 Hz 220-240V Production X: OYLM Product Series J: J Series F: F Series Capacity 10: 10000 Btu/hr Model FT: Wall Mounted (Cooling Only) FTY: Wall Mounted (Heatpump) Outdoor R(Y) 09 C X V1 Power Supply...
Application Information Application Information Operating Range Ensure the operating temperature is in allowable range. Cooling Outdoor DB (°C) The use of your air conditioner outside the range of working temperature and humidity can result in serious failure. Indoor WB (°C) Heating Outdoor WB (°C)
Application Information Installation Guideline Sharp edges and coil surfaces are potential injury hazard. Avoid from contact with them. Installation Diagram Indoor unit Caulk pipe hole Cut thermal insulation pipe 30mm or more from ceiling gap with putty. to an appropriate length and wrap it with tape, making Front panel sure that no gap is left in the...
Page 13
Application Information Installation of Orifi ce Pipe Orifice Pipe Outdoor Unit Indoor Unit Flare nut 3/8" (Female) Orifice Pipe, connecting Flare joint 3/8" (Male) Note: This installation is only for FT30F/R28C & FT30F/R30D The orifi ce pipe must be installed in the correct direction as shown above. Improper direction may cause failure to the operating system.
Page 14
Application Information B. Outdoor unit orifi ce pipe installation (where installation space is limited) Step 4 Orifice Pipe Step 3 Step 2 Step 1 If the orifi ce pipe cannot be connected directly to the liquid valve due to space constraint, it can be connected in between of the liquid pipe.
Application Information Cable Size FT10JXV1 FT15JXV1 FT20JXV1 FT25JXV1 Model Unit R09CXV1 R15CXV1 R18CXV1 R25CXV1 Power supply cable size Number of wire Interconnection cable size Number of wire Recommended fuse FT30FXV1 Model Unit R28CXV1 R30DXV1 R30DXY1 Power supply cable size Number of wire Interconnection cable size Number of wire Recommended fuse...
Application Information Refrigerant Piping Piping Length and Elevation When the pipe length becomes too long, both the capacity and reliability drop. As the number of bends increases, system piping resistance to the refrigerant fl ow increases, thus lowering the cooling capacity, and as the result the compressor may become defective.
Engineering & Physical Data Engineering Data - R22 MODEL (Heatpump) INDOOR UNIT FTY30JXV1 MODEL OUTDOOR UNIT RY28CXV1 RY30DXV1 Btu/h 27000 30000 NOMINAL COOLING CAPACITY 7913 8790 Btu/h 27000 30000 NOMINAL HEATING CAPACITY 7913 8790 NOMINAL TOTAL INPUT POWER (COOLING) 2650 2990 NOMINAL TOTAL INPUT POWER (HEATING) 2600...
Performance Data Performance Data Calculation Steps Interpolation method can be used to get the total Solution: cooling capacity, TC and sensible cooling capacity, Based on the Performance Table, SC and power input, PI at those temperatures which 1. Refer to the Indoor DB column, are not stated out in the table.
Page 26
Performance Data (b) Indoor Condition: 25°C DB, 16°C WB By Interpolation Method Outdoor Condition: 35°C DB 25°C – 24°C – 3.51kW ⇒ Outdoor temperature 27°C – 24°C 3.52kW – 3.51kW 35°C ⇒ x = 3.51kW Similarly, = 2.71kW 3.51 2.57 1.29 = 1.29kW 3.52...
Outline & Dimension Model: R(Y)28CXY1 For R/RY28C Only Dimension Model R(Y)28CXY1 855 730 328 513 182 44 93 149 101 113 603 126 164 17 47 32 23 73 75 Note: Dimension in mm Model: R(Y)30DXV1 / R30DXY1 MADE IN MALAYSIA Dimension Model R(Y)30DXV1 /...
Wiring Diagram Wiring Diagram Cooling Only Indoor Unit Outdoor Unit Model: FT10/15JXV1 Model: R09/15CXV1 BLACK WHITE BROWN BLACK (LIVE) RED (FAN CAP) WHITE (NEUTRAL) CN_STP CN_FAN FB CN_FAN COMP CN_PGRM CN_WIR CN_DSP NOTE : FM : FAN MOTOR AS : AIR SWING MOTOR DISPLAY BOARD TH1 : INDOOR COIL THERMISTOR COMP N1...
Wiring Diagram Indoor Unit Outdoor Unit Model: FT20/25JXV1 Model: R18/25CXV1 BLACK WHITE BROWN BLACK (LIVE) RED (FAN CAP) WHITE (NEUTRAL) CN_STP CN_FAN FB CN_FAN COMP CN_PGRM CN_WIR CN_DSP NOTE : FM : FAN MOTOR AS : AIR SWING MOTOR DISPLAY BOARD TH1 : INDOOR COIL THERMISTOR COMP N1 TH2 : ROOM THERMISTOR...
Wiring Diagram Indoor Unit Outdoor Unit Model: FT30FXV1 Model: R28CXV1 MAIN BOARD DISPLAY BOARD INDOOR COIL THERMISTOR ROOM THERMISTOR SWITCH BOARD COMP CAPACITOR FAN MOTOR BLUE BLUE ORANGE (LO) BROWN (MED) YELLOW (HI) COMP N2 NOTATION FM : FAN MOTOR 240VAC AS : AIR SWING MOTOR...
Wiring Diagram Indoor Unit Outdoor Unit Model: FT30FXV1 Model: R30DXV1 MAIN BOARD DISPLAY BOARD INDOOR COIL THERMISTOR ROOM THERMISTOR SWITCH BOARD COMP CAPACITOR FAN MOTOR BLUE BLUE ORANGE (LO) BROWN (MED) YELLOW (HI) COMP N2 NOTATION FM : FAN MOTOR AS : AIR SWING MOTOR PART NO.
Wiring Diagram Indoor Unit Outdoor Unit Model: FT30FXV1 Model: R30DXY1 MAIN BOARD DISPLAY BOARD INDOOR COIL THERMISTOR ROOM THERMISTOR SWITCH BOARD COMP CAPACITOR FAN MOTOR BLUE BLUE ORANGE (LO) BROWN (MED) YELLOW (HI) COMP N2 NOTATION FM : FAN MOTOR AS : AIR SWING MOTOR PART NO.
Wiring Diagram Heatpump Indoor Unit Outdoor Unit Model: FTY09/15JXV1 Model: RY09/15CXV1 BLACK WHITE BROWN BLACK (LIVE) RED (FAN CAP) WHITE (NEUTRAL) CN_STP CN_ CN_FAN FAN FB COMP NOTATION CN_ODCOIL FM : FAN MOTOR AS : AIR SWING MOTOR Z1C : FERRITE CORE TH1 : INDOOR COIL THERMISTOR BLUE GREEN/YELLOW...
Wiring Diagram Indoor Unit Outdoor Unit Model: FTY20/25JXV1 Model: RY20/25CXV1 BLACK WHITE BROWN BLACK (LIVE) RED (FAN CAP) WHITE (NEUTRAL) NOTATION FM : FAN MOTOR AS : AIR SWING MOTOR BLUE TH1 : INDOOR COIL THERMISTOR TH2 : ROOM THERMISTOR Z1C : FERRITE CORE DISPLAY BOARD GREEN/YELLOW...
Wiring Diagram Indoor Unit Outdoor Unit Model: FTY30FXV1 Model: RY30DXV1 DISPLAY BOARD SWITCH BOARD CAPACITOR FAN MOTOR L COMP BLUE YELLOW (HI) ROOM THERMISTOR BROWN (MED) ORANGE (LO) INDOOR COIL THERMISTOR YELLOW/GREEN TO OUTDOOR THERMISTOR 4WV OF COMP PART NO. 08 02 4 052645 POWER SUPPLY 4 W V COMP...
Service & Maintenance Service & Maintenance • Disconnect from main supply before servicing the air conditioner. • The unit is designed to give long life operation with minimum maintenance required. However, it should be regularly checked and the following items should be given due attention. Components Maintenance Procedures Period...
Service & Maintenance Pre Start Up Maintenance (After Extended Shutdown) Inspect thoroughly and clean indoor and outdoor units. Clean or replace air fi lters. Clean condensates drain line. Clean clogged indoor and outdoor coils. Check fan imbalance before operation. Tighten all wiring connections and panels. Check for refrigerant leakage.
Troubleshooting Troubleshooting Indicator Lights IR Signal Receiver When an infra red remote control operating signal has been transmitted, the signal receiver on the indoor unit will respond as below to confi rm acceptance of the signal transmission. ON to OFF 1 Long Beep OFF to ON 2 Short Beep...
Page 56
Troubleshooting LED Indoor Lights: Normal Operation and Fault Conditions for Cooling / Heatpump Unit Error Normal Operation / Action Code Fault Indication COOL/HEAT (GREEN/RED) Cool mode Green Heat mode Auto mode in Heating operation Auto mode in Cooling operation Green Time on Sleep mode on Fan mode on...
Troubleshooting Phase Sequencer The unit with Scroll Compressor only can rotate in one direction. For this reason, a protective device (phase sequencer) is fi tted to prevent incorrect wiring of the electrical phases. When the three phases are not connected correctly, the phase sequencer operates, and the unit will not start. This device is located in the control box of the outdoor unit.
Troubleshooting Error Code / Fault Condition When a malfunction of the air conditioner unit is detected, immediately switch off the main power supply before proceeding with the following troubleshooting procedures. The following are common fault conditions and simple troubleshooting tips. If any other fault conditions which are not listed occur, contact your nearest local dealer.
Page 59
Troubleshooting Diagnostic Guidelines By means of pressure readings: Data Pressure Probable cause Circuit High side • 1. Overcharged with refrigerant. Low side • 2. Non-condensable gases in refrigerant circuit (e.g. air). 3. Obstructed air-intake / discharge. 4. Hot air short circuiting in outdoor unit. •...
