The MS-4C monitor speakers are versatile – they can sit upright OR you can take advantage
of the angled cabinet and tilt them backwards (see Figure 5).
Speaker Orientation for Stereo Listening
Positioning your speakers correctly in a studio setup is critical to their performance.
Reflection is the most likely acoustic problem you will have to deal with.
As shown in Figure 7, where you place the speakers in relation to a mixer console can
modify the sound wave and hence alter how that sound is perceived.
Actual product(s) may differ from illustrations/photographs used

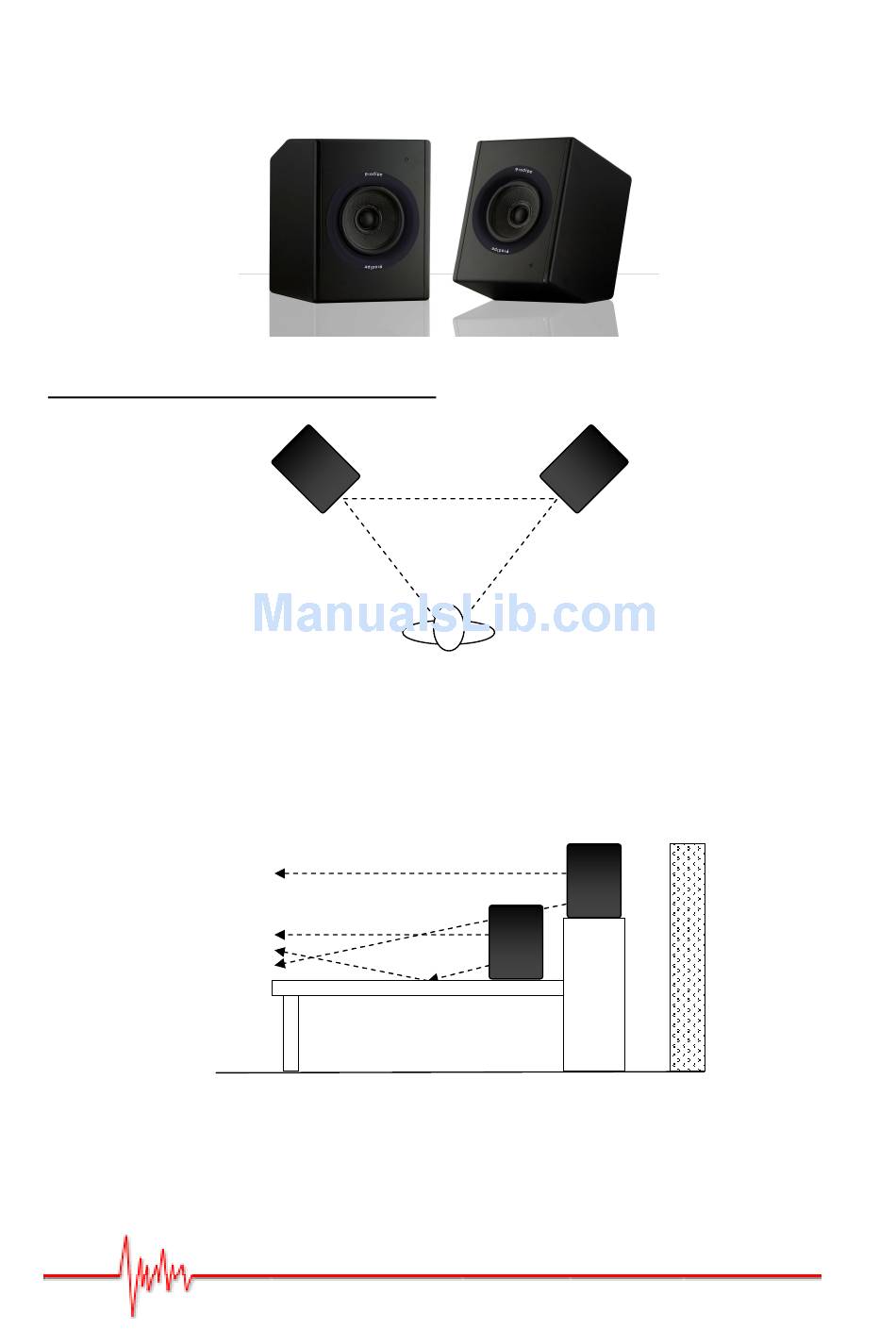

Figure 5
Equilateral
Triangle
Stereo Listening Position
Figure 6
Reflection
Figure 7
