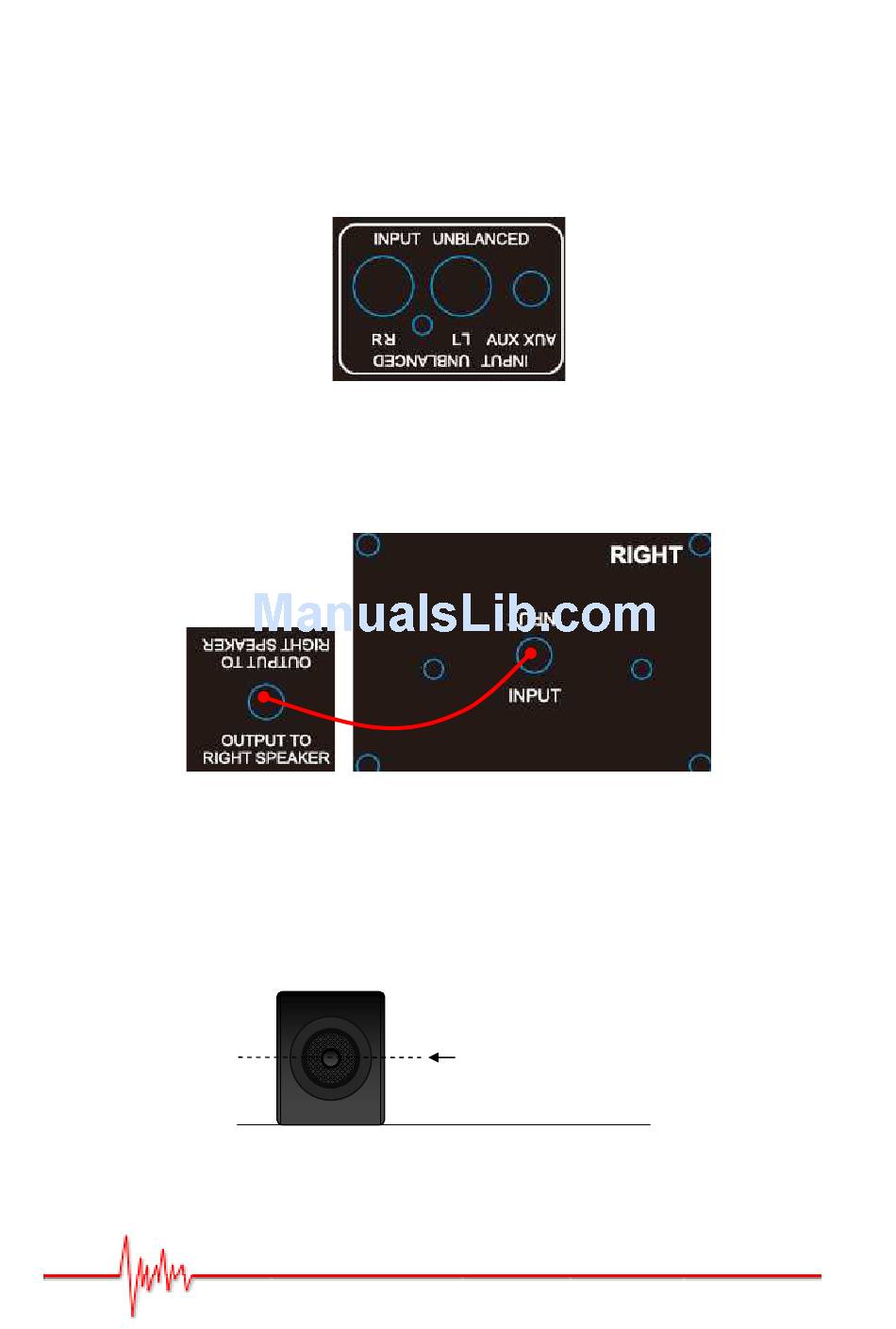

4 – Audio input/output sockets
The active speaker features two types of unbalanced input on the rear panel: RCA L/R and a
3.5mm stereo mini jack into which you can plug your audio equipment (MP3 player, PC, DVD
players, digital keyboards, etc.).
The mono mini jack output on the left active speaker connects to the mono mini jack input
on the right passive speaker as follows:
5 – Speaker Orientation
The optimum listening height for the MS-4C speakers corresponds to the horizontal line
which passes through the centre of the woofer/tweeter.
Actual product(s) may differ from illustrations/photographs used
Figure 2 – Active speaker RCA inputs and mini-jack
Copyright © 2012 IPE Music
Figure 3
Optimum listening height
Figure 4
-2-
