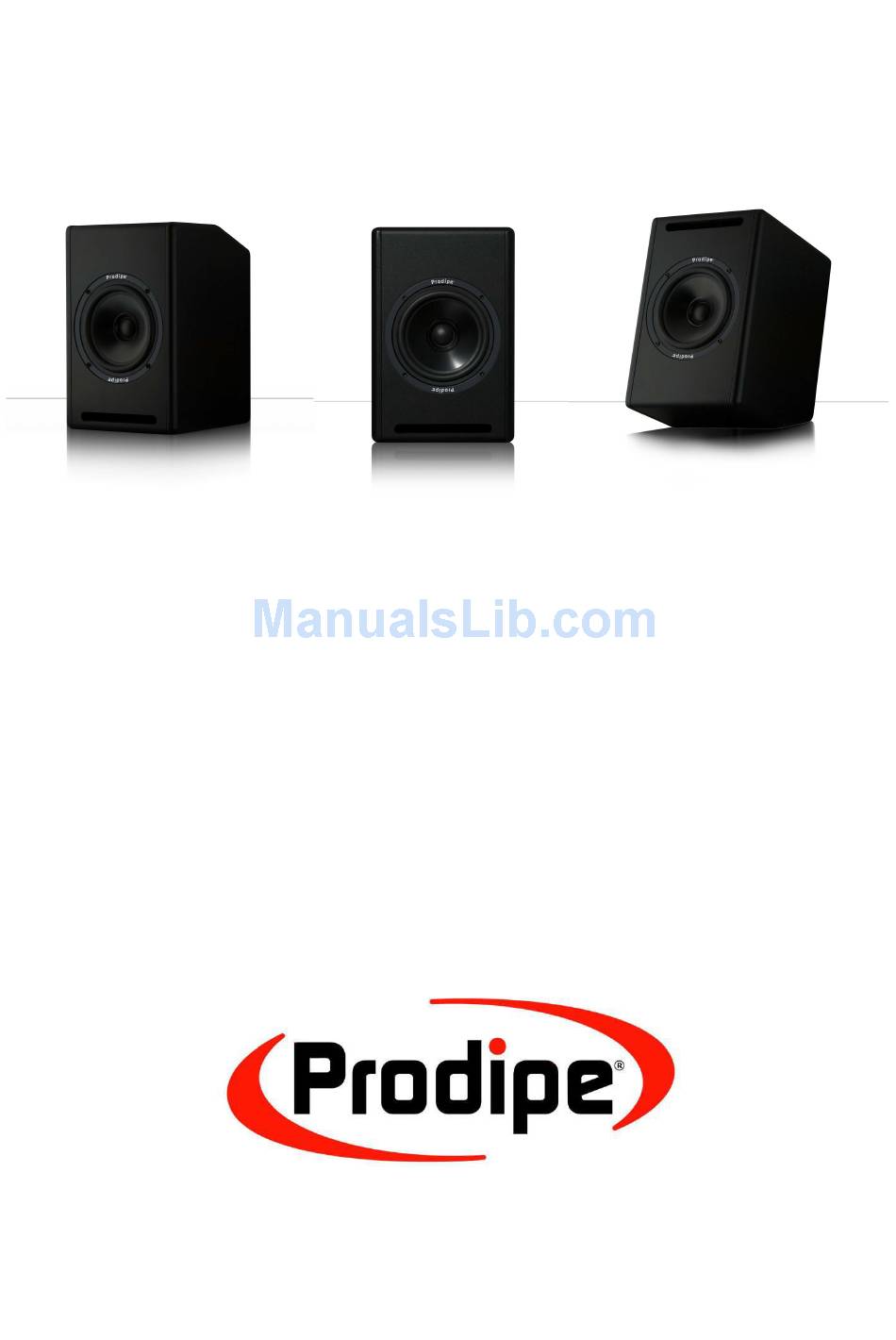

- Page 1 U S E R M A N U A L S t u d i o M o n i t o r s TDC5 – TDC6 – TDC8...
-
Page 2: Safety Information
Safety Information Thank you for purchasing this digital appliance. To ensure perfect operation and security, please read the manual carefully and retain it for future reference. Precautions The lightning flash with the arrowhead symbol in an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage”... -
Page 3: Table Of Contents
Contents 1 – Introduction ..........................2 2 – Connections ..........................2 3 – Settings ............................3 4 – Audio input/output sockets ....................4 5 – Speaker Orientation ......................4 6 – Specifications .........................6... -
Page 4: Introduction
, turn the Prodipe speaker POWER switch to ON - the LED should light up. Note that: when powering off, the Prodipe speakers should be switched off first (switch to OFF and LED goes out). Important: the choice of voltage via the AC SELECT switch depends on your power supply. -
Page 5: Settings
3 - Settings Various settings are available on the back panel of the speakers: Figure 2 - Back Panel VOLUME The gain can be adjusted using the VOLUME control switch on the rear panel of the speakers (see Figure 3). It can be set between -30dB and +6dB. -
Page 6: Audio Input/Output Sockets
Figure 5 – TRS, XLR, RCA inputs 5 – Speaker Orientation Optimum Listening Height Figure 6 The Prodipe studio monitors can be placed upright or at an angle. Figure 7 Actual product(s) may differ from illustrations/photographs used Copyright © 2012 IPE Music... - Page 7 Speaker Orientation for Stereo Listening Equilateral Triangle Stereo Listening Position Figure 8 Positioning your speakers correctly in a studio setup is critical to their performance. Reflection is the most likely acoustic problem you will have to deal with. As shown in Figure 8, where you place the speakers in relation to a mixer console can modify the sound wave and hence alter how that sound is perceived.
-
Page 8: Specifications
6 - Specifications Frequency Response (+/- 3db) 60Hz - 20kHz 50Hz - 20kHz 40Hz - 20kHz 1” (25 mm) 1” (25 mm) 1” (25 mm) High Frequency Driver Magnetically shielded Magnetically shielded Magnetically shielded Silk dome Silk dome Silk dome 5.25”... - Page 9 IPE Music 20, rue Clément ADER Z.A. Les Gloriets 85340 OLONNE SUR MER France www.prodipe.com Actual product(s) may differ from illustrations/photographs used Copyright © 2012 IPE Music...
