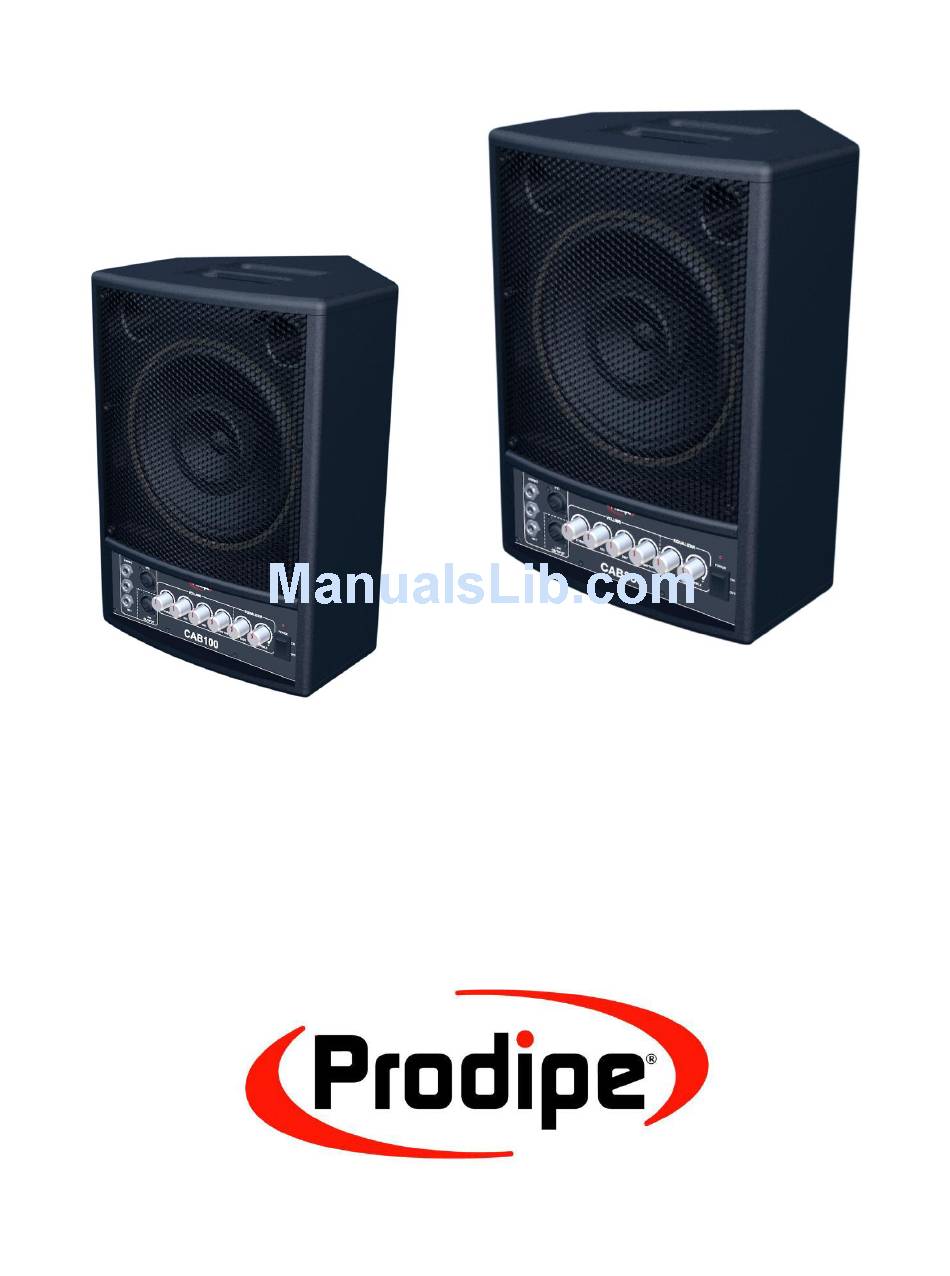

  • Page 1 U S E R M A N U A L S o u n d S y s t e m S p e a k e r s CAB100 – CAB200...
  • Page 2: Safety Information

    Safety Information Thank you for purchasing this digital appliance. To ensure perfect operation and security, please read the manual carefully and retain it for future reference. Precautions The lightning flash with the arrowhead symbol in an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage”...
  • Page 3: Table Of Contents

    Contents 1 – Introduction ..........................1 2 – Connections ..........................1 3 – Settings ............................3 4 – Audio Input/Output Sockets ....................3 5 – Speaker Orientation ......................4 6 – Specifications .........................5...
  • Page 4: Introduction

    4. Check the voltage , turn the speaker POWER switch  to ON - the red LED  should light up. Note that: when powering off, the Prodipe speaker should be switched off first (switch  to OFF and red LED  goes out).
  • Page 5 Figure 2 Actual product(s) may differ from illustrations/photographs used Copyright © 2012 IPE Music...
  • Page 6: Settings

    3 – Settings Various settings are available on the front panel of the speakers: Figure 3 VOLUME  STEREO: controls the volume of the STEREO L and R inputs  MIC: adjusts the volume of the MIC input  INST: adjusts the volume of the INST input ...
  • Page 7: Speaker Orientation

    The CAB 100 and the CAB 200 also feature a LINK male XLR output socket so that you can supplement the power by adding another speaker such as another CAB 100 or CAB 200. IMPORTANT: This output does not control the stereo of the combined L and R inputs. 5 –...
  • Page 8: Specifications

    6 – Specifications CAB100 CAB200 Frequency Response 40Hz -20kHz (+/-3dB) 35Hz -20kHz (+/-3dB) 3” (75 mm) 3” (25 mm) High Frequency Driver Magnetically shielded Magnetically shielded Fibre cone Fibre cone 10” (250 mm) 12” (300 mm) Low Frequency Driver Magnetically shielded...
  • Page 9 IPE Music 20, rue Clément ADER Z.A. Les Gloriets 85340 OLONNE SUR MER France www.prodipe.com Actual product(s) may differ from illustrations/photographs used Copyright © 2012 IPE Music...
