Summary of Contents for Prodipe Pro Ribbon 5

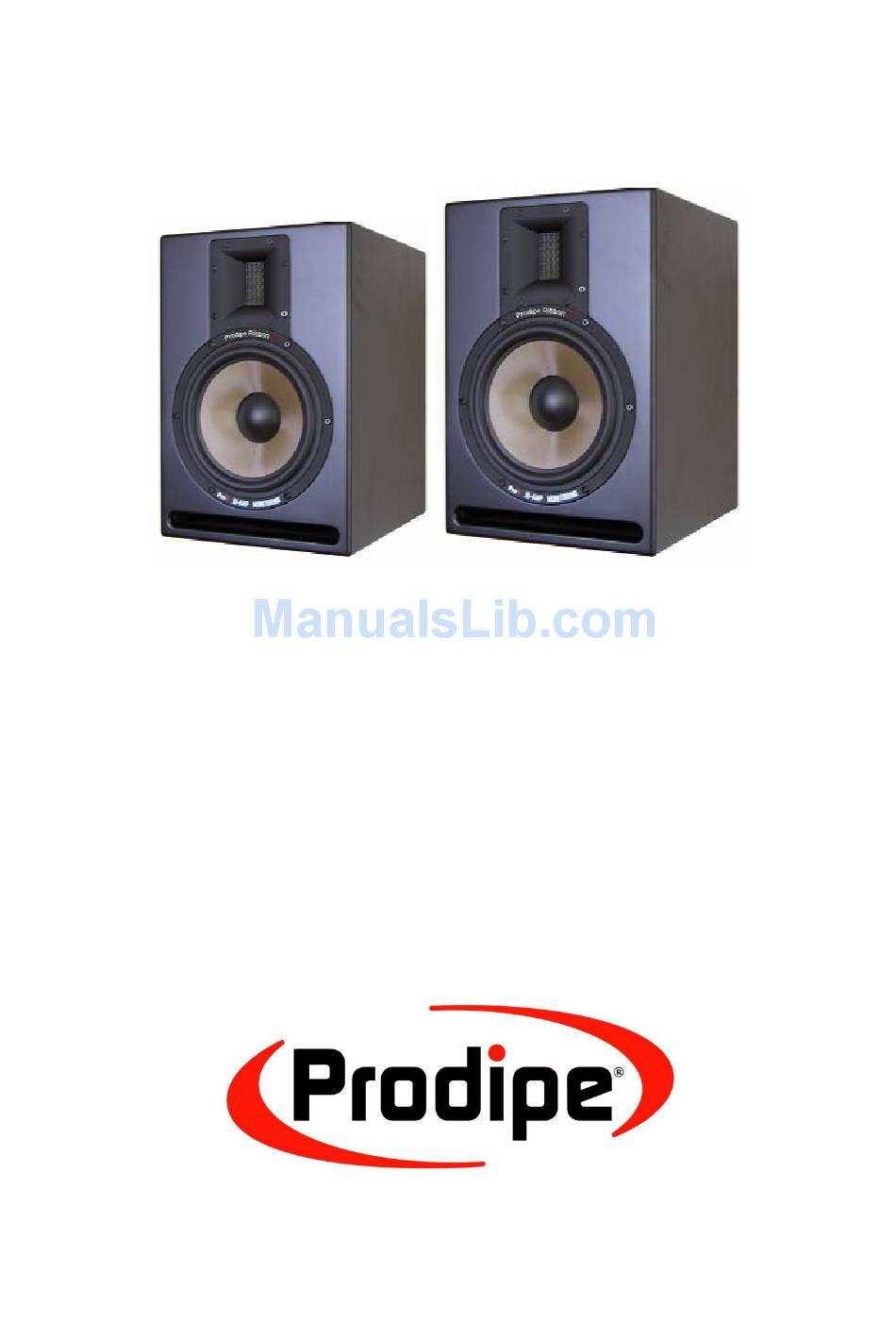

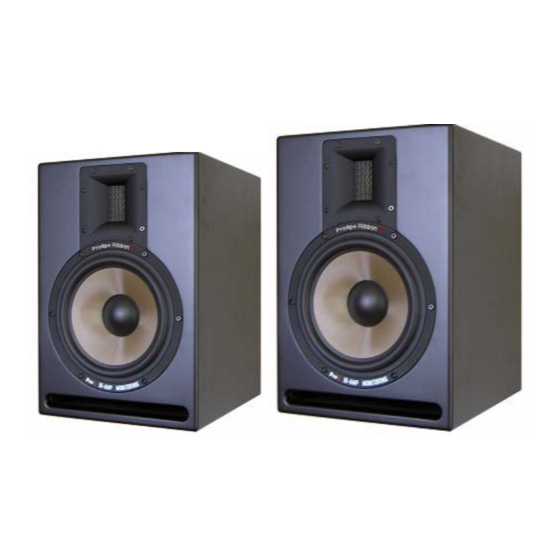

- Page 1 U S E R M A N U A L S t u d i o M o n i t o r s with ribbon tweeter Pro Ribbon – Pro Ribbon...
-
Page 2: Safety Precautions
Precaution Thank you for purchasing this digital appliance. To ensure perfect operation and security, please read the manual carefully and retain it for future reference. Safety Precautions The lightning flash with the arrowhead symbol in an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage”... -
Page 3: Table Of Contents
Contents 1 - Introduction........................1 2 - Connections......................... 3 3 - Settings ..........................4 4 - Audio Inputs/Outputs ....................5 5 - Monitor Layout ........................5 6 - Specifications........................7... -
Page 4: Introduction
1 – Introduction We would like to thank you for having chosen our PRODIPE products. Safety Precautions For your security and for the correct implementation of this product, please read the safety precautions on the inside cover page. Caution, if you want to reduce the risk of being electrocuted, do not remove the rear panel on this product. - Page 5 Figure 1 – Rear Panel for the Pro Ribbon 5 /Pro Ribbon 8 Copyright © 2008 IPE Music Page 2...
-
Page 6: Connections
, switch on the Prodipe monitors by putting switch in the ON position and the blue LED will light up. Note that: when you want to shut everything down, the Prodipe monitors must be switched off first (Switch in the OFF position and the blue LED off). -
Page 7: Settings
3 - Settings There are different settings on the rear panels of your monitors: VOLUME You can adjust the gain setting at the back of the monitor using the changeover switch in Figure 3. It can be set from -30dB to +6dB. Figure 3 ADJUSTING THE HIGH FREQUENCIES (HF LEVEL) You can adjust the high frequencies at the back of the monitor (Figure 4). -
Page 8: Audio Inputs/Outputs
4 – Audio Inputs/Outputs The XLR and TRS connectors are balanced whilst the RCA connectors are unbalanced. Figure 5 – TRS, XLR, RCA inputs for Pro Ribbon 5 and Pro Ribbon 8 5 – Monitor Layout The Prodipe studio monitors can be placed in a vertical or horizontal position. - Page 9 Figure 8 Positioning for 5.1 Surround Pro10S 5/8 R 5/8 R 5/8 R 0° 30° 30° 110° 110° Listening position Pro 5/8 R Pro 5/8 R Figure 9 We have provided the angles and the distance ratios for your information based on studies from sound engineers.
-
Page 10: Specifications
6 - Specifications Pro Ribbon 5 Pro Ribbon 8 Frequency Response 50Hz -30kHz 45Hz -30kHz 1” x 2" 1” x 2" High Frequency Driver Ribbon tweeter Ribbon tweeter 5” (150 mm) 8” (220 mm) Low Frequency Driver Glass Aramid Composite Cone... - Page 11 Notes : ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ Copyright © 2008 IPE Music Page 8...
- Page 12 Copyright © 2008 IPE Music...
