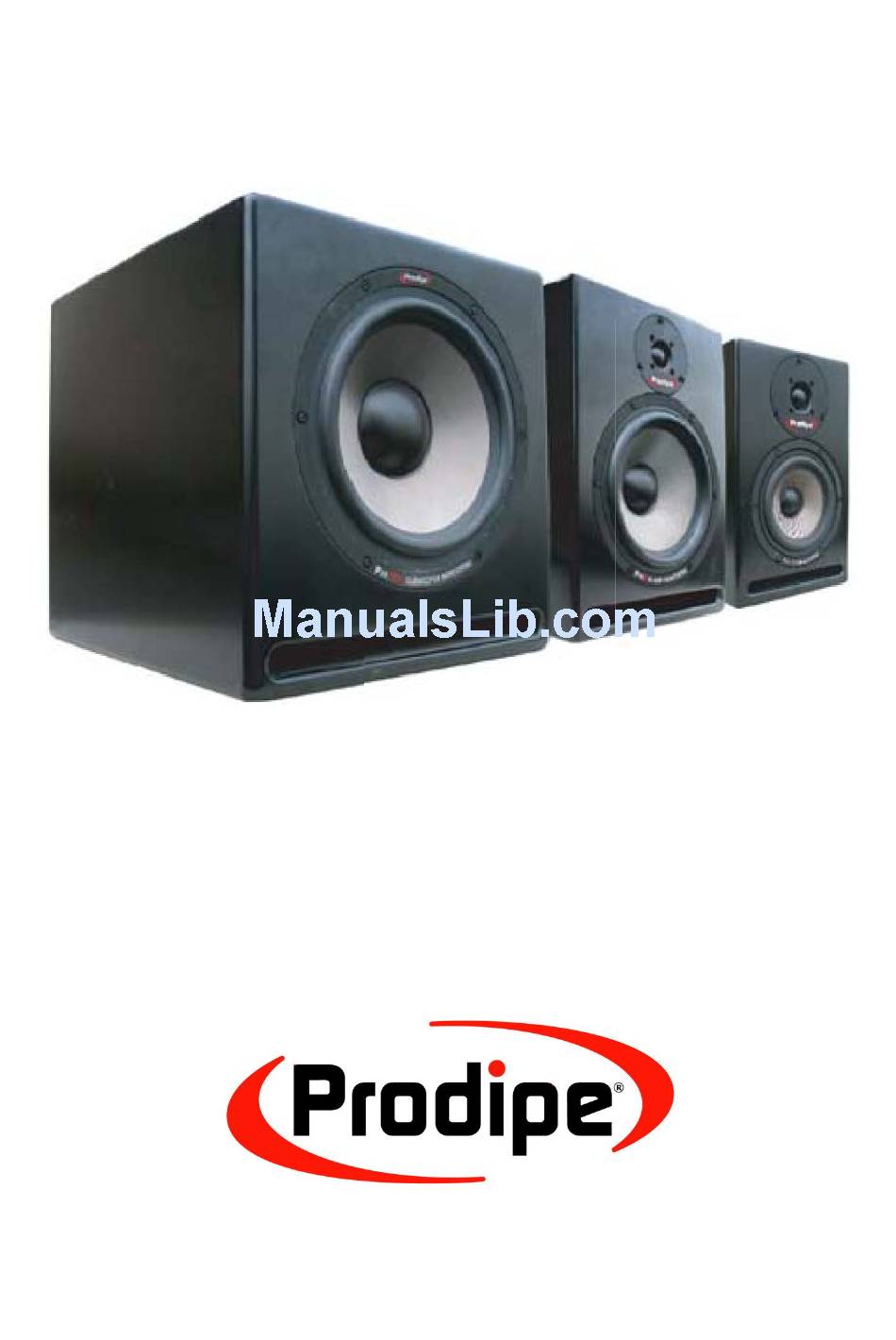

- Page 1 U S E R M A N U A L S t u d i o M o n i t o r s Pro10s – Pro8 – Pro5...
-
Page 2: Safety Precautions
Precaution Thank you for purchasing this digital appliance. To ensure perfect operation and security, please read the manual carefully and retain it for future reference. Safety Precautions The lightning flash with the arrowhead symbol in an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage”... -
Page 3: Table Of Contents
Contents 1 - Introduction........................1 2 - Connections......................... 2 3 - Settings ..........................3 4 - Audio Inputs/Outputs ....................4 5 - Monitor Layout ........................5 6 - Specifications........................7... -
Page 4: Introduction
1 – Introduction We would like to thank you for having chosen our PRODIPE products. Safety Precautions For your security and for the correct implementation of this product, please read the safety precautions on the inside cover page. Caution, if you want to reduce the risk of being electrocuted, do not remove the rear panel on this product. -
Page 5: Connections
, switch on the Prodipe monitors by putting switch in the ON position and the blue LED will light up. Note that: when you want to shut everything down, the Prodipe monitors must be switched off first (Switch in the OFF position and the blue LED off). -
Page 6: Settings
The possible values are +1dB, 0dB (flat), -1dB, or -2dB at around 2 kHz. Figure 4 FREQUENCY OF THE LOW-PASS FILTER – Pro10s only This 3-position changeover switch lets you select the cut-off frequency for the low-pass filter. It lets you determine the lowest frequency that will be passed through to the main monitors. -
Page 7: Audio Inputs/Outputs
The XLR and TRS connectors are balanced whilst the RCA connectors are unbalanced. Figure 7 – TRS, XLR, RCA inputs for Pro5 and Pro8 Figure 8 – RCA inputs/outputs for the Pro10s Subwoofer Figure 9 – TRS, XLR inputs/outputs for the Pro10s Subwoofer Copyright © 2005 IPE Music Page 4... -
Page 8: Monitor Layout
OUT LEFT OUT RIGHT MONO Input TRS, XLR or RCA Figure 10 – Connections 5 – Monitor Layout The Prodipe studio monitors can be placed in a vertical or horizontal position. Optimum listening height Figure 11 Positioning in Stereo Equilateral Triangle... - Page 9 As shown in Figure 13, the position of a monitor in relation to an audio mixer can change the sound waves and hence distort how you perceive your sound production. Figure 13 Positioning for 5.1 Surround Pro10S 30° 30° 110°...
-
Page 10: Specifications
6 - Specifications Pro5 Pro8 Pro10s Frequency Response 45Hz -22kHz 45Hz -22kHz 30Hz -150Hz 1” (25 mm) 1” (25 mm) High Frequency Driver Silk Dome Silk Dome 5” (150 mm) 8” (220 mm) 10" (273 mm) long excursion Low Frequency Driver... - Page 11 Copyright © 2005 IPE Music...
