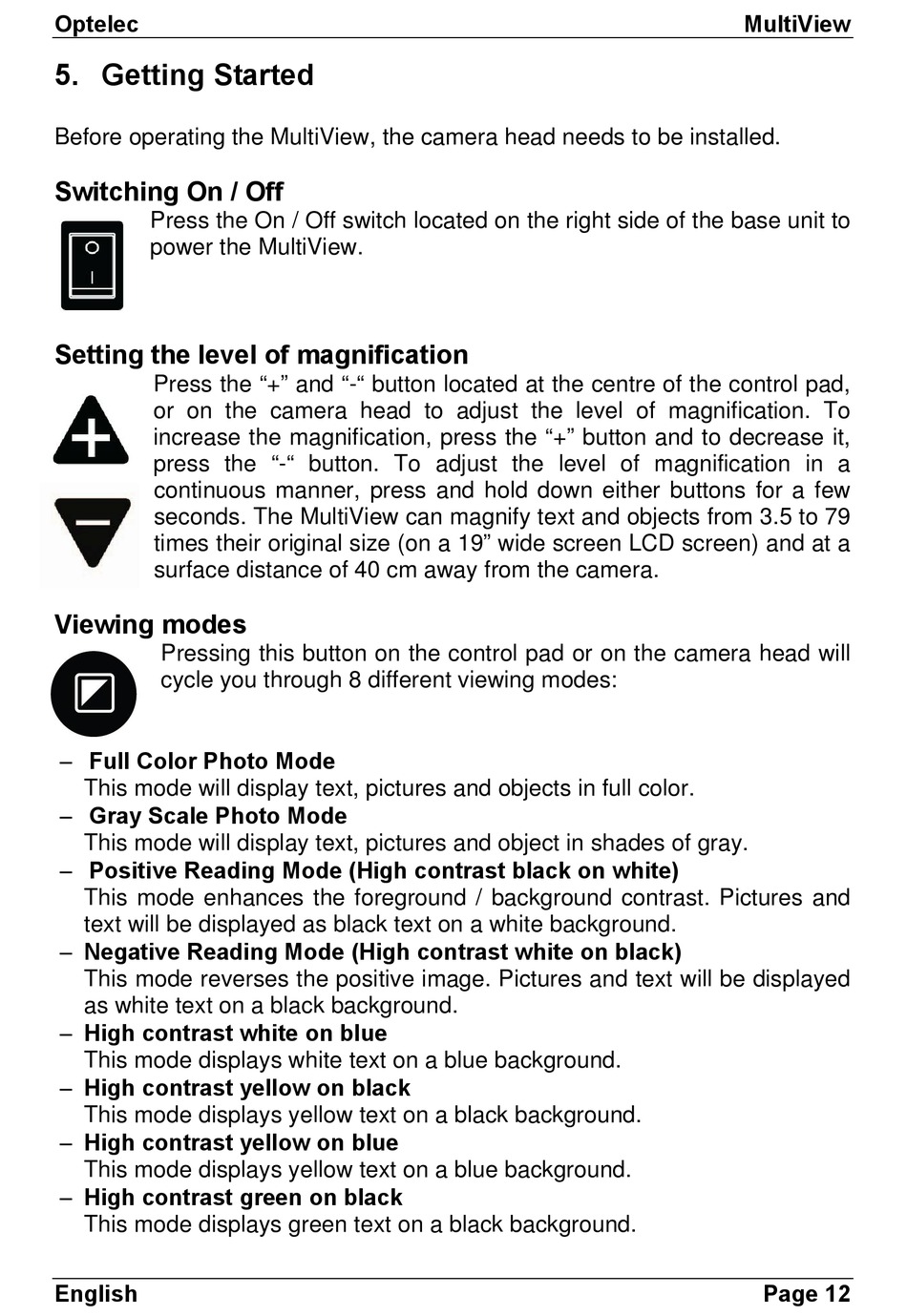

5. Getting Started

Before operating the MultiView, the camera head needs to be installed.

Switching On / Off

Press the On / Off switch located on the right side of the base unit to
power the MultiView.

Setting the level of magnification

Press the "+" and "-" button located at the centre of the control pad,
or on the camera head to adjust the level of magnification. To
increase the magnification, press the "+" button and to decrease it,
press the "-" button. To adjust the level of magnification in a
continuous manner, press and hold down either buttons for a few
seconds. The MultiView can magnify text and objects from 3.5 to 79
times their original size (on a 19" wide screen LCD screen) and at a
surface distance of 40 cm away from the camera.

Viewing modes

Pressing this button on the control pad or on the camera head will
cycle you through 8 different viewing modes:
 Full Color Photo Mode
This mode will display text, pictures and objects in full color.
 Gray Scale Photo Mode
This mode will display text, pictures and object in shades of gray.
 Positive Reading Mode (High contrast black on white)
This mode enhances the foreground / background contrast. Pictures and
text will be displayed as black text on a white background.
 Negative Reading Mode (High contrast white on black)
This mode reverses the positive image. Pictures and text will be displayed
as white text on a black background.
 High contrast white on blue
This mode displays white text on a blue background.
 High contrast yellow on black
This mode displays yellow text on a black background.
 High contrast yellow on blue
This mode displays yellow text on a blue background.
 High contrast green on black
This mode displays green text on a black background.
