  • Page 3 Optelec Compact 5 HD WEEE Notice The directive on Waste Electrical and Electronic Equipment (WEEE), w hich entered into force as European law on 13 February 2003, resulted in a major change in the treatment of electrical equipment at end-of-life.
  • Page 4 Optelec Compact 5 HD Compact 5 HD User Manual OPN: UDC-02101 Version 1.2 © 2011 Optelec, the Netherlands All rights reserved Optelec P.O. Box 399 2990 AJ Barendrecht The Netherlands Phone: +31 (0)88 678 34 44 E-mail: info@optelec.nl Internet: www.optelec.com...

  • Page 5: Table Of Contents

    Optelec Compact 5 HD Contents 1. Introduction About this manual What‟s in the box? 2. Getting started Using the Compact 5 HD in the closed or open position Cleaning the camera lens and mirror Buttons Switching the power on and off...
  • Page 6 Optelec Compact 5 HD Menu: Brightness Menu: Power Menu: Sound Menu: Light Menu: Color Menu: Reset Appendix A: Safety Appendix B: Technical information Appendix C: Warranty Conditions English Page 4...

  • Page 7: Introduction

    1. Introduction Congratulations on choosing the Compact 5 HD! Optelec‟s unique auto focus electronic video magnifier enables you to view and magnify printed text and images in high resolution HD quality in full color or one of the high contrast modes. The Compact 5 HD 5-inch display, combined with its low magnification of 1.5 times, gives you maximum overview, while providing...

  • Page 8: About This Manual

    Compact 5 HD If you have questions or suggestions concerning the use of this product, please contact your distributor or the Optelec headquarters using the contact information on the last page of this manual. Your feedback is greatly appreciated. We hope you enjoy working with your Compact 5 HD!

  • Page 9: Getting Started

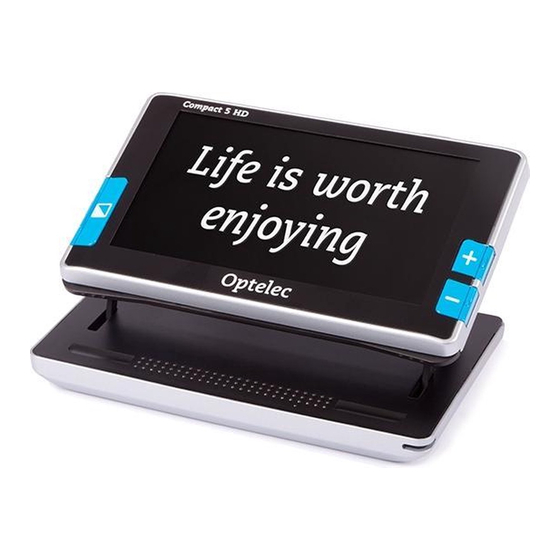

    2. Getting started The Compact 5 HD is placed correctly in front of you when the screen is facing up and the Optelec logo is in the centre at the bottom of the screen. Compact 5 HD closed Compact 5 HD open...
  • Page 10 Optelec Compact 5 HD The closed position is ideal for distance viewing and to quickly scan and view objects or documents. In the open position, the screen will be set in an ergonomic angle for reading and the camera will point downwards. The open position enables you to read longer texts, thanks to the integrated reading stand.
  • Page 11 Optelec Compact 5 HD Place your middle fingers against the black opening support located on the top corners of the lower part of the unit. English Page 9...
  • Page 12 Optelec Compact 5 HD Place your index fingers above your middle fingers against the top corners of the upper part of the unit. English Page 10...
  • Page 13 Optelec Compact 5 HD Place your thumbs against the black opening supports underneath the display on the bottom corners of the upper part of the unit. English Page 11...
  • Page 14 Optelec Compact 5 HD Open the unit by lifting the upper part with your thumbs and index fingers. English Page 12...

  • Page 15: Cleaning The Camera Lens And Mirror

    Optelec Compact 5 HD Cleaning the camera lens and mirror For an optimal quality image, it is recommended to ensure that the camera lens and object light mirror are kept clean. A dirty lens will result in a fuzzy image and may cause the auto focus camera to incorrectly focus.

  • Page 16: Buttons

    Optelec Compact 5 HD Buttons The Compact 5 HD has the following buttons: Mode Pressing the Mode button to the left of the screen allows you to select one of the viewing modes. Pressing this button for three seconds will turn off the object lighting.

  • Page 17: Switching The Power On And Off

    Optelec Compact 5 HD 5V DC IN jack The 5V DC IN jack is located next to the power button on the left side of the Compact 5 HD. The power supply cable connects to this jack. Use only the indicated power supply that comes with the Compact 5 HD to power and charge the unit.

  • Page 18: Adjusting The Magnification

    Optelec Compact 5 HD When switching the Compact 5 HD on, it will take approximately 3 seconds before an image is displayed on the screen. The unit can also be switched on by opening the unit as described earlier (this is a default setting).

  • Page 19: Selecting A Viewing Mode

    Optelec Compact 5 HD Note: in the smallest magnification of 1.5 times, text lines may be displayed in a small curve. This will be most visible when reading small texts. This “fish eye” effect is caused by the ultra wide angle of the lens.

  • Page 20: Using The Snapshot Button

    Optelec Compact 5 HD Pressing the Mode button for 3 seconds will toggle the object lighting on or off. Switching modes will automatically turn the object lighting back on. Using the snapshot button The snapshot button allows you to take a temporary picture of a text or an image.
  • Page 21 Optelec Compact 5 HD Use the magnification buttons located to the right side of the screen to change the magnification of the displayed image. Press the Mode button to change the viewing mode. Press the snapshot button again to unfreeze the image. It is now possible to take a new snapshot.

  • Page 22: Charging The Battery

    Optelec Compact 5 HD 3. Charging the battery Charging the Compact 5 HD The Compact 5 HD is delivered with a power supply and four country-specific power plugs, of which one is already mounted to the power supply. The power plugs are available in EU, US, UK and AU versions.

  • Page 23: Standby And Auto Power Off

    Optelec Compact 5 HD Standby and Auto Power Off The Compact 5 HD will automatically go into standby mode after two minutes if no button is pressed or image change is detected. Pressing any button will wake the unit up again. Four minutes after the Compact 5 HD goes into standby mode, the unit will automatically switch off.

  • Page 24: The Compact 5 Hd Menu

    Optelec Compact 5 HD 4. The Compact 5 HD Menu Shows the battery status and firmware version. Allows you to adjust the screen brightness. Allows you to configure the power settings. Allows you to switch the sound on or off.

  • Page 25: Activating The Menu

    Optelec Compact 5 HD Activating the menu To enter the menu, press the + and – buttons simultaneously for one second. Navigating the menu Use the + or – buttons to navigate between the menu items. The Mode button located to the left of the screen will activate the chosen menu item or confirm the selection.

  • Page 26: Menu: Information

    Optelec Compact 5 HD Menu: Information This menu item shows the battery status and the current firmware version of the unit. In this menu, it is not possible to make any changes. Activate the menu by pressing the + and – buttons simultaneously for one second.

  • Page 27: Menu: Brightness

    Optelec Compact 5 HD Menu: Brightness This menu item allows you to adjust the brightness of the display. Activate the menu by pressing the + and – buttons simultaneously for one second. Use the + button to move up and the – button to move down within the menu.

  • Page 28: Menu: Power

    Optelec Compact 5 HD Menu: Power This menu item contains four sub-menu‟s: Power off Sets the time before the Compact 5 HD is automatically switched off. By default, the power off time is set to 4 minutes. These 4 minutes are activated after the default standby time of 2 minutes.
  • Page 29 Optelec Compact 5 HD Open Enables or disables automatic power on upon opening the Compact 5 HD. By default, the Compact 5 HD will power on upon opening the unit. open Close Enables or disables automatic power off upon closing the Compact 5 HD. By default, the Compact 5 HD will not power off upon closing the unit.
  • Page 30 Optelec Compact 5 HD Sub-menu Power off To activate the Compact 5 HD power off time: Activate the menu by pressing the + and – buttons simultaneously for one second. Use the + button to move up and the – button to move down within the menu.
  • Page 31 Optelec Compact 5 HD Select the Standby option by using the + and – buttons to scroll through the options. Press the Mode button to confirm your choice. Select the time before the unit will go into standby by using the + button to increase and the –...
  • Page 32 Optelec Compact 5 HD Sub-menu Close To enable or disable the power off upon closing the Compact 5 HD: Activate the menu by pressing the + and – buttons simultaneously for one second. Use the + button to move up and the – button to move down within the menu.

  • Page 33: Menu: Sound

    Optelec Compact 5 HD Menu: Sound This menu item allows you to enable or disable the sounds (feedback tones). By default, the tones are enabled. Activate the menu by pressing the + and – buttons simultaneously for one second. Use the + button to move up and the – button to move down within the menu.

  • Page 34: Menu: Light

    Optelec Compact 5 HD Menu: Light This menu item allows you to enable or disable the object lights - located to the left and right of the camera - for distant viewing. By default, the object lights are enabled. Activate the menu by pressing the + and – buttons simultaneously for one second.

  • Page 35: Menu: Color

    Optelec Compact 5 HD Menu: Color The Compact 5 HD supports four high contrast modes. For each of these four modes, the foreground and background colors can be selected. Three of the high contrast modes can be disabled if just one high contrast mode is required.

  • Page 36: Menu: Reset

    Optelec Compact 5 HD Menu: Reset The Compact 5 HD can be reset to the factory default settings. Any settings that have been adjusted, will be restored to the factory defaults. Activate the menu by pressing the + and – buttons simultaneously for one second.

  • Page 37: Appendix A: Safety

     Do not expose the Compact 5 HD to excessive heat or direct sunlight to avoid the risk of fire.  Do not remove any parts of the Compact 5 HD. Contact an Optelec authorized service organisation in your area.

  • Page 38: Appendix B: Technical Information

    Optelec Compact 5 HD Appendix B: Technical information Magnification 1.5x - 18x Viewing modes Full color photo mode High contrast white on black High contrast black on white High contrast color combination 1 High contrast color combination 2 Focus Auto-focus...
  • Page 39 Optelec Compact 5 HD Operating conditions Temperature +10°C to 35°C / 50°F to 95°F Humidity < 70%, no condensation Storage & transportation conditions Temperature +10°C to 40°C / 50°F to 104°F Humidity < 95%, no condensation English Page 37...

  • Page 40: Appendix C: Warranty Conditions

    Optelec reserves the right to repair or replace any purchased Compact 5 HD with a similar or improved product. In no event shall Optelec or its suppliers be held liable for any indirect or consequential damages. The original user‟s remedies are limited to replacement of the Compact 5 HD.
  • Page 41 Optelec Compact 5 HD RoHS Compliance This product is in compliance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) and its amendments.
  • Page 42 Optelec Compact 5 HD WARNING: Federal Communications accessories, transducers Commission (FCC) Statement: cables, with exception This Equipment has been tested transducers and cables sold by the and found to comply with the limits manufacturer of the Compact 5 HD Class B...
  • Page 43 Optelec Compact 5 HD the user is encouraged to try to This device complies with Part 15 of correct the interference by one or the FCC Rules. Operation is subject more of the following measures: to the following two conditions: - Reorient or relocate the receiving antenna.

  • Page 44: Optelec Offices Worldwide

    T: +44 1923 23 13 13 T: +32 (0)50 35 75 55 T: +49 669 196 170 w ww.optelec.co.uk w ww.optelec.be w ww.optelec.de Optelec Corporate Headquarters Breslau 4 – 2993 LT Barendrecht – The Netherlands – T: +31 (0)88 678 3444 – www.optelec.com...
