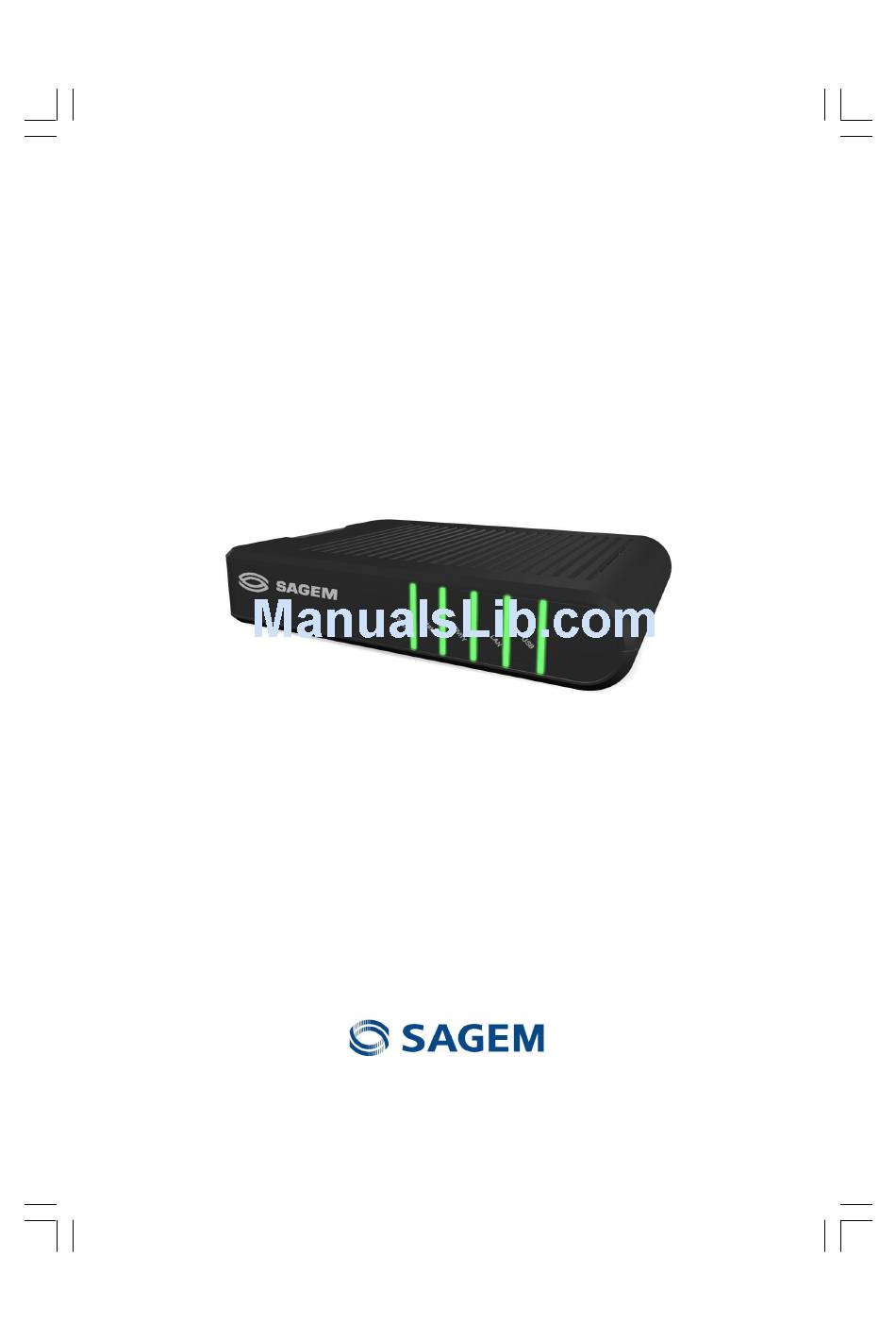

- Page 1 SAGEM F@st 1201 Quick Installation Guide...
-
Page 2: Table Of Contents
Contents Presentation ................1 Pack ....................2 Connections ................. 3 Installation from the CD-ROM ............. 4 Installation by Ethernet interface ..........6 Installation by USB interface ............7 Installation of an additional computer ........8 Troubleshooting ................9 Status of the LEDs on the front ........... 9 Modem/router supervision ............ -
Page 3: Presentation
SAGEM F@st™ 1201 Sagem Communication thanks you for choosing the SAGEM F@st 1201 Modem/ Router. We hope it will provide you with full satisfaction. In addition, it will provide you with access to all the services provided by your Internet Access Provider, as shown in the diagram below. -
Page 4: Pack
SAGEM F@st™ 1201 CONTENTS OF THE PACK Before you carry out the installation make sure that the pack contains the following elements: Contents of the pack... -
Page 5: Connections
SAGEM F@st™ 1201 CONNECTIONS Connecting your modem/router Make sure that the modem/router is not connected to your computer before you start the installation from the CD-ROM. Make the connection as shown in the diagram below. Connecting additional telephones Make the connections according to the diagram below. -
Page 6: Installation From The Cd-Rom
SAGEM F@st™ 1201 INSTALLATION FROM THE CD-ROM Make sure that the modem/router is not connected to your computer before you start the installation from the CD-ROM. insert the CD-ROM into the relevant drive; the opposite screen appears: click on Next to display a... - Page 7 SAGEM F@st™ 1201 The opposite screen appears when you click on Next. This screen lets you select the interface (Ethernet or USB) you want to use to connect your modem/router to your computer. The modem/router only connects to one type of interface.
-
Page 8: Installation By Ethernet Interface
SAGEM F@st™ 1201 Installation on the Ethernet port You selected «Use the Ethernet cable», click on Next. Follow the instructions provided by the installer screens by pluging in the modem supply, switching it on and connecting the ADSL line and then connect the modem/router to your computer using the Ethernet cable. -
Page 9: Installation By Usb Interface
SAGEM F@st™ 1201 Installation on the USB port You selected «Use the USB cable », click on Next. Follow the instructions provided by the installer screens by pluging in the modem supply, switching it on and connecting the ADSL line and then connect the modem/router to your computer using the USB cable. -
Page 10: Installation Of An Additional Computer
SAGEM F@st™ 1201 Installation of an additional computer Your modem/router is already connected. insert the CD-ROM into the relevant drive. Continue the installation up to the installation selection window and select «You want to install an additional computer», click on Next to continue the installation. The interface selection window opens. -
Page 11: Troubleshooting
SAGEM F@st™ 1201 TROUBLESHOOTING Users can locate the fault using the following sources: n Status of the LEDs on the front, n Information accessible by your modem/router’s built-in «DSL Router» HTTP controller, Modem/router supervision, «Diagnostics» tool. Status of the LEDs on the front... -
Page 12: Modem/Router Supervision
SAGEM F@st™ 1201 Modem/routeur supervision This is displayed permanently in a box at the top right of each window in the HTTP configuration tool. To access the configuration tool: n open your browser then enter in the address bar: the following URL... -
Page 13: Diagnostics» Tool
SAGEM F@st™ 1201 Buttons Update the data displayed on the screen Reboot your modem/router «Diagnostics» tool To access this tool: n open the configuration tool (see the modem/router supervision section). n select the «Status» heading then the «Diagnostics» menu in the relevant list located in the left of each window;... -
Page 14: Connection Status
SAGEM F@st™ 1201 The result of the tests carried out by your modem/router’s «DSL router» configuration tool is displayed in the «Diagnostics» window. These tests relate to the connections to the LAN, your DSL Service Provider and your Internet Service Provider (ISP). -
Page 15: Safety Instructions
SAGEM F@st™ 1201 SAFETY INSTRUCTIONS Environment • The modem/router should be installed and used inside a building. • The room temperature should not exceed 45°C. • The modem/router can be placed on a desktop or fixed vertically in its wall mounting. - Page 16 European Community directives 1995/5/CE as well as with the essential demands of the directives 89/336/CEE dated 03/05/1989 and 73/23/CEE dated 19/02/1973. t™ The CE compliance declaration for the SAGEM F@s 1201 is implemented within the framework of the R&TTE directive.
- Page 17 SAGEM F@st™ 1201 NOTES : _________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________...
- Page 18 _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ Registered trademarks SAGEM F@st™ is a registered trademark of Sagem Communication ® Mac OS is a registered trademark of Apple Computer, Inc. ® Windows is a registered trademark of Microsoft Corporation. Copyright document.
- Page 19 For futher information on our products, Please visit our Web site at: www.sagem.com 252 716 575 éd. 1 Siège social : 27, rue Leblanc - 75512 PARIS CEDEX 15 - FRANCE Tél. : +33 1 58 11 77 00 - Fax : +33 1 58 11 77 50 http://www.sagem.com...
