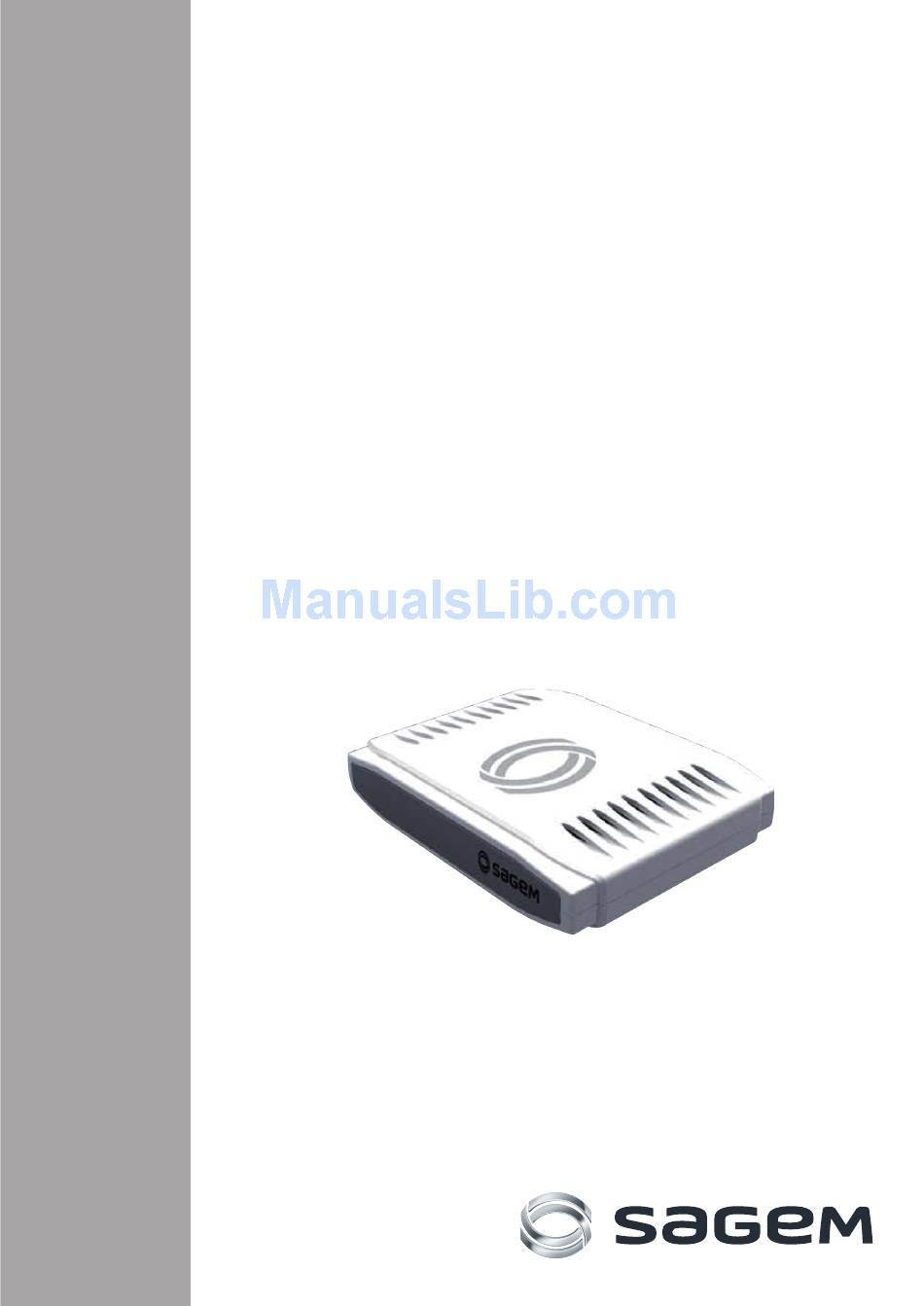

- Page 1 SAGEM F@st™ 1704 Quick Installation Guide...
-
Page 2: Sagem F@St Tm
France in the whole of the band until further notice. The CE declaration of conformity can be viewed in the support section of the Sagem Communications site www.sagem-communications.com, or it can be obtained from the following address:... -
Page 3: Table Of Contents
SAGEM F@st 1704 Contents 1. Contents of the pack ..................3 2. Safety instructions ..................4 2.1. Power supply source ......................4 2.2. Location conditions ........................ 4 2.3. Maintenance .......................... 4 2.4. Safety level ..........................4 3. Connection ..................... 5 3.1. -
Page 4: Contents Of The Pack
SAGEM F@st 1704 1. Contents of the pack Before you carry out the installation, make sure that the pack contains the following elements: Item Description SAGEM F@st 1704 router Mains adapter ADSL line cable used to connect your router to your telephone line... -
Page 5: Safety Instructions
SAGEM F@st 1704 2. Safety instructions Power supply source • Do not cover the router’s mains adapter. • The router comes with its own mains adapter. Do not use another adapter. • This class II adapter does not need to be grounded (earthed). The connection to the electrical network should comply with the indications given on the label. -
Page 6: Connection
SAGEM F@st 1704 3. Connection Connecting your router Important Make sure that the router is not connected to your computer before you start the installation from the CD-ROM. Make the connections as shown in the diagram below. Note A "UK" mains adapter can be provided in option according to the customer. -
Page 7: Installation From The Cd-Rom
SAGEM F@st 1704 4. Installation from the Installation by Wi-Fi interface CD-ROM You selected the Wireless interface (Wi-Fi), click on Next. Important Select the wireless connection mode (Wi-Fi). Make sure that the router is not connected to your computer before you start the installation from the CD- ROM. - Page 8 SAGEM F@st 1704 The Internet connection screen appears. Enter your connection ID and password, then click on Next. Note The Wi-Fi security key field only appears if a Wi-Fi security (WEP 128, WPA-PSK and WPA2-PSK) is assigned to your router. The length of this field depends on the selected security.
-
Page 9: Installation Of The Ethernet Port
SAGEM F@st 1704 Installation of the Ethernet Installation of an additional computer port Important You selected the Use the Ethernet cable, click on Next. Your router is already connected. Follow the instructions displayed on screen by plugging in the router supply, switching it on and... -
Page 10: Router Supervision
SAGEM F@st 1704 5. Router supervision You can monitor the router’s activity and status using the following sources: • status of the LEDs on the front panel of the router • using the router’s built-in «DSL Router» HTTP controller, available in the HTTP configuration tool... -
Page 11: Router Supervision
SAGEM F@st 1704 Router supervision The HTTP configuration tool lets you configure and monitor the router remotely. To access the HTTP configuration tool: Open your browser. Enter the router’s IP address or enter the following URL: http://myrouter In the login screen that appears, enter your username and password. - Page 12 SAGEM F@st 1704 Internet information The following table presents the possible states of the Internet field: Status Message Meaning Adsl Down ADSL line not connected or not activated Not configured The Internet account must be configured Router rebooting Router is rebooting...
-
Page 13: Advanced Router Configuration
SAGEM F@st 1704 6. Advanced router configuration Use the HTTP configuration tool to access advanced router settings and configure your equipment according to your needs. Example of an advanced Wi-Fi configuration:... -
Page 14: Troubleshooting
SAGEM F@st 1704 7. Troubleshooting Many sources of information are available to help you identify and resolve issues you may experience: • the LEDs on the front panel of the router (see Status of the LEDs on the front panel, page 9), •... -
Page 15: Restarting Your Router
SAGEM F@st 1704 Restarting your router To restart your router, use one of the following methods: • press the Power button located on the rear panel of the router, • click on the Reboot action of the HTTP configuration tool (see Router supervision, page 10). - Page 16 Sagem Communications SAS Broadband & Residential Terminals Business Unit Headquarters: 250, route de l'Empereur 92500 Rueil-Malmaison - FRANCE www.sagem-communications.com...
