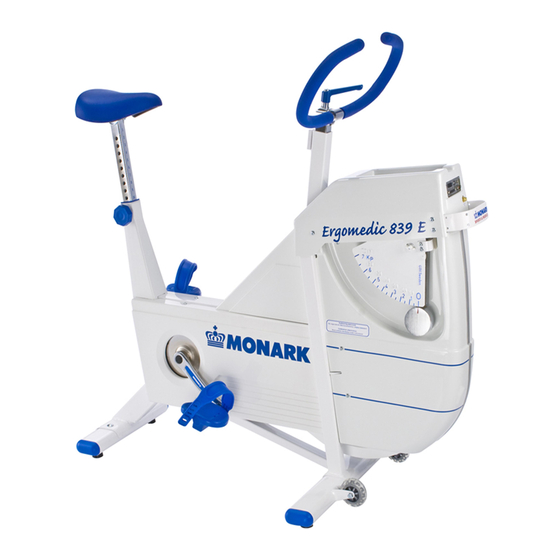

Monark 839 User Manual
  1. Manuals
  2. Brands
  3. Monark Manuals
  4. Exercise Bike
  5. 839
  6. User manual

Monark 839 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Monark 839 User Manual
MEC3V11n
Monark Exercise AB
Sweden
Eng. edit. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 839 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Monark 839

Summary of Contents for Monark 839

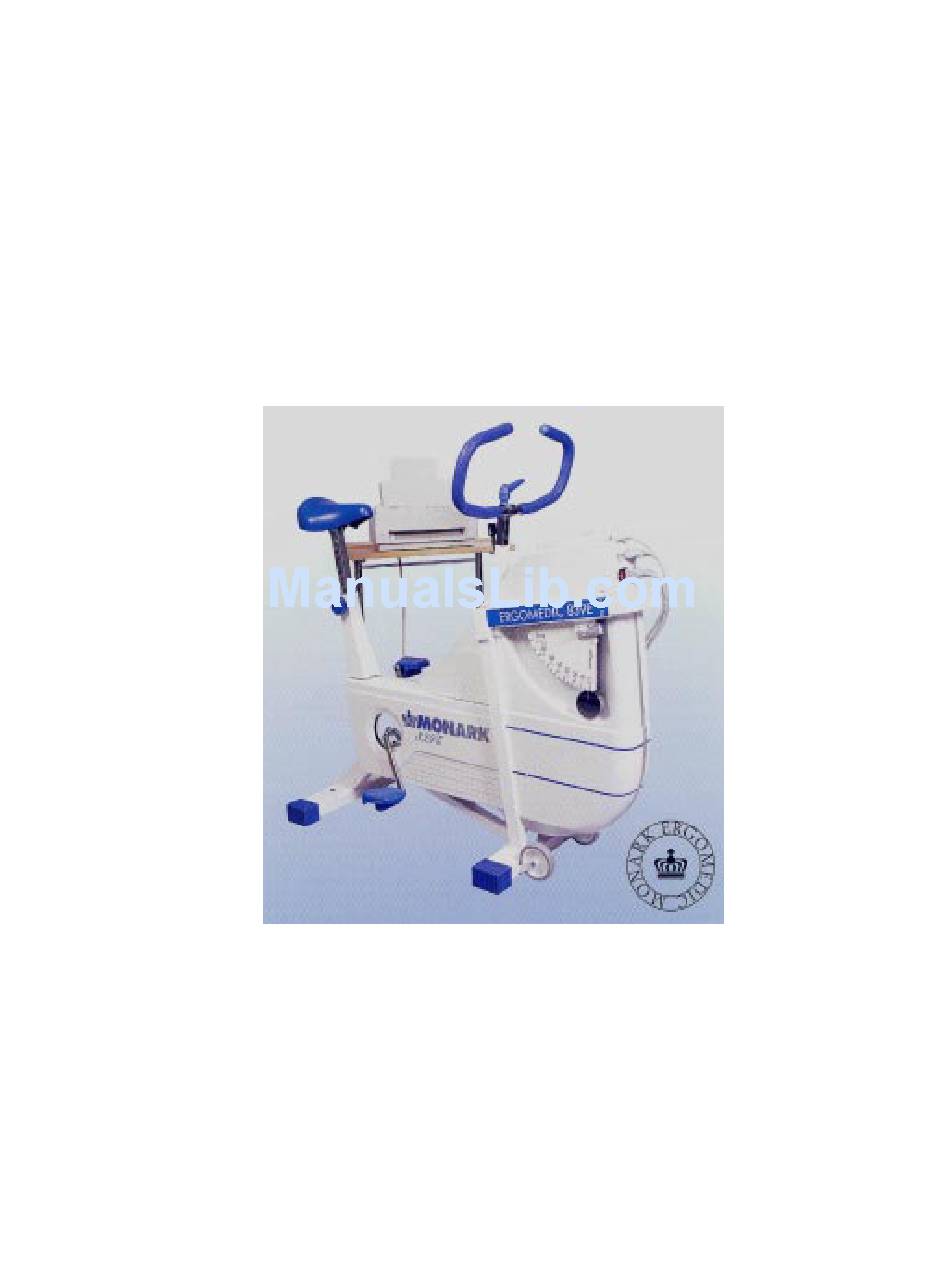

  • Page 1 Monark 839 User Manual MEC3V11n Monark Exercise AB Sweden Eng. edit. 1...
  • Page 3 MEC3V11Rn Terminal BT2V1 Edit. 1...

  • Page 5: Table Of Contents

    Overview, How To Use This Manual Specifications Where To Obtain Additional Information 2. Getting Started Final assembly Installing optional equipment Initial Operation 3. Testing With the 839 Ergometer Performance Validation Calibration Electronics Preparation for Testing Heart Rate detection Subject Supervision Reviewing Results 4.

  • Page 6: Warranty

    In the event of a defect in material or workmanship during the warranty period, Monark will repair or replace ( at its option ) the product. Monark will do so at its expense for the cost of materials but not for labour or ship- ping.

  • Page 7: Assembly Instruction

    PARTS BELOW ARE NOT ASSEMBLED. Pedal, pair Front support tube(with wheels) + two lock nuts Rear support tube + two bolts + two lock nuts Handlebar complete Computer control unit + cable Transformer + power cable Chest belt incl. transmitter HR receiver Tool kit: Instruction manual...
  • Page 8 The pedal marked R ( Right ) is to be assembled on the right hand side of the cycle ( the chain wheel side ). The pedal axle has a right hand thread and must be threaded onto the crank clockwise. Tighten firmly! The pedal marked L ( Left ) is to be assembled on the left hand side of the...

  • Page 9: Introduction

    INTRODUCTION OVERVIEW The Monark 839 Electronic Ergometer is a complex structure of mechanical equipment under the control of an elaborate computer system. The computer provides a fine element of control which was not possible to obtain using strictly mechanical devices.

  • Page 10: Specifications

    Golding LA, Myers CR, Sinning WE, The y´s way to physical fitness“, YMCA of the USA, Rosemont, IL, 1982. Astrand P-O, “Work Tests with the Bicycle Ergometer“, Monark AB, Varberg, Sweden. For more technical details, see the section entitled “Appendix: Reference“...

  • Page 11: Getting Started

    INITIAL OPERATION Although all 839 ergometers are 100% calibrated at the factory, the user may wish to verify this by performing the mechanical calibration of the pendulum weight. See section “Mechanical Reference, Cali- bration of Pendelum Weight”.

  • Page 12: Testing With The 839 Ergometer

    TESTING WITH THE 839 ERGOMETER PERFORMANCE VALIDATION The 839 is a mechanically weighted and braked ergometer, making performance validation a simple pro- cedure. The work performed on the ergometer is the product of the weight lifted times the numbers of revolutions (factored).

  • Page 13: General

    CALIBRATION ELECTRONICS Calibration is necessary to match the mechanics of the ergometer to the electronics of the computer. The following steps are required to recalibrate the electronics to the pendulum scale. 1. Check at the bottom of the flywheel that the brake belt is loose. If not move the pendulum up to 3 kp and hold it for a few seconds.

  • Page 14: Preparation For Testing

    PREPARATION FOR TESTING The versatility of the 839 Electronic Ergometer enable it to be utilised in a variety of testing environments. The precision and reproducibility of measurements made with the ergometer in conjunction with the ease of testing, allow it to be employed in clinical exercise stress facilities, corporate fitness programs and health clubs.

  • Page 15: Subject Supervision

    HEART RATE: ELECTRODE-BELT AND EAR PLETHYSMOGRAPH The subject’s heart rate can be monitored by chest belt telemetry system or by an ear clip which measures heart rate by light transmission through the ear. Only the system with chest belt electrodes is standard equipment.

  • Page 16: Reviewing Results

    The subject may also show difficulty in regulating the speed of the ergometer. The power will be properly regulated regardless of the speed, assuming that the protocol work type is not force and that the speed is maintained above the pedal low setting (default is 30 RPM). In addition , some subjects may become sensitive to the display on the handheld remote controller.

  • Page 17: Computer Reference

    COMPUTER REFERENCE TERMINAL MAIN DISPLAY (on the terminal) 1 Fitness test See also Menu System Overview. 2 Man./Work test 3 Seq. programs 4 Analog control KEYBOARD LAYOUT Used keys: Key 1 - 9: menu chice and numeric input Arrow key up/down: scroll function Dot key: decimal input Del.key: delete function Enter: enters input...
  • Page 18 The auto printout function must be enabled for the printer to operate outside fixed protocols. To change the time interval between successive printouts, see System menu. Sample Report: Monark Ergometer 839E. Åstrand - report:1 Page: 1 Name: ............... Test: ................
  • Page 19 V02. Please refer to the specific protocol description prior to attaching any significance to the reported value. The computer controller for the 839 Ergometer can preform different protocols in addition to strict manual operation. Four protocols have been preset and 2 are partly preset . Several preprogrammed protocols measure oxygen consumption at steady state: the Astrand, using a single workload, the YMCA, using multiple branching workloads (“YMCAs Way to Physical Fitness”...
  • Page 20 MENU SYSTEM...
  • Page 21 MENU SYSTEM 4 : 5...
  • Page 22 ASTRAND PROTOCOL The Astrand protocol is designed to determine maximal oxygen consumption by exercising the subject at a submaximal workload and measuring the steady state heart rate. The workload, in conjunction with the result- ant heart rate, is compared to the predicted relationship, adjusted for age and sex and a maximal oxygen con- sumption is computed.
  • Page 23 Predicted V02 Max (l/m) from Heart Rate & Workload (kpm/min) - Females...
  • Page 24 Prediced V02 Max (l/m) from Heart Rate & Workload (kpm/min) - Males 1050 1200 1350 1500...
  • Page 25 YMCA PROTOCOL - “Y´S WAY TO PHYSICAL FITNESS” The YMCA protocol is based on the “Y´s Way to Physical Fitness” bicycle test. The design is a submaximal test, using branching multiple workloads in which the next workload is determined by the steady state heart rate elicited by the previous level.
  • Page 26 BRUCE PROTOCOL Bicycle ergometers measure total oxygen consumption relatively independent of body weight. Since the sub- ject’s body weight is supported by the saddle, the total work performed is a function of only the resistive force and the pedal speed. At the same power setting, all subjects will have approximately the same oxygen con- sumption.
  • Page 27 NAUGHTON PROTOCOL The standard Naughton Protocol (reference 5) is a two minute incremental test. The test is extremely similar to the Bruce protocol with two simple exceptions: the stages are two minutes in duration instead of three and the incremental V02 between stages is linear (3.5 ml/kg/min). The stages represent discrete oxygen consumption levels generally referred to as “METS”.

  • Page 28: Testing - General

    MANUAL USE Begin to put in personal data like sex, weight, age and max. heart rate. Workload - Force setting The workload can be set in Newtons(N) or kp. Power is in this mode depending on the pedal rpm. Workload can be increased or decreased with keys 7/4, 8/4 and 9/5.
  • Page 29 Workload - HR related. The Heart Rate program is designed to adjust the workload in an attempt to maintain a desired heart rate. This is achieved by increasing the workload from zero, at the start, using incremental steps. How fast the power is adjusted is depending on howfar away the actual heart rate is from the desired heart rate.

  • Page 30: Work Test

    WORK TEST INCREMENTAL PROTOCOL The incremental protocol consists of a series of workloads which are constantly increasing with time. Under control of the incremental, the ergometer exercises the subject to a maximum workload. The rate at which the workload rises is presetable. The type of work: power or force may also be preset as desired.
  • Page 31 SEQUENS PROGRAMS - USER DEFINED PROTOCOLS The operator may custom design his own exercise protocols and store them in computer memory. This extra ordinary feature makes it possible to provide 10 additional protocols which may be setup as special purpose, readily avilable protocols.
  • Page 32 Edit an existing program. Press 2 Edit. Choose program number. Step through the program with the Enter key and make desired changes. Then go to workload setting and change to Stop (key 0) and then press Enter. NOTE! After editing an old or new program turn off the computer for correct dowload of data. Execute program Begin with 3 Seq.

  • Page 33: System Menu

    SYSTEM MENU 1 SETUP 1 Setup 2 Language 3 Exit SETUP: Pedal ref.: Metronome setting Default setting <65> rpm. Pulse alarm: on/off Optical pulse: on/off Pulse indication in the middle section of the rpm bar. Optical metronome: on/off NOTE! If both opti. pulse and optic metro. are set to on only optic pulse will be set to on.

  • Page 34: Service Menu

    SERVICE MENU (99 hidden) 1 Adjust pot. (potentiometer) If any service regarding the pendulum has been done the correct potentiometer position can be checked here. Follow display instructions. 2 Calibrate pot. After adjusting pot. a calibration shall be performed here. Also after setting to default in the service menu a calibration has to be done here.
  • Page 35 4:19...
  • Page 36 EXTERNAL INTERFACE The Monark Ergometer 839E can be controlled externally from a terminal or a computer. The control is performed over a serial line using ANSI/ISO/ASCII format commands. The interface is a 9 pin male D-sub connector, compatible with the RS232 standard, located on the front of the electronic.

  • Page 37: Mechanical Reference

    MECHANICAL REFERENCE CALIBRATION OF PENDULUM WEIGHT Remove the cover from the flywheel. Loosen the balancing spring from the brake belt. Check that the 0-index of the scale is in line with the index of the pendulum weight. Adjust if needed. NB. Wait until the flywheel is not moving any longer.

  • Page 38: Brake Belt, Contact Surface And Brake Belt

    Replace the brake belt and assemble the other parts in the reversed order according to the above. PENDULUM WEIGHT BEARING The bearing in the pendulum weight are lifetime greased and require normally no maintenance. If a problem arises, please contact your Monark dealer.

  • Page 39: Crank Bearing

    CHAIN 1/2" x 1/8" Check the lubrication and tension of the chain at regular intervals. In the middle of its free length the chain should have a minimum of 10 mm and a maximum of 25 mm (1 inch) of play. When the play in the chain is 25 mm (1 inch) or greater it should be tightened.

  • Page 40: Replacement Of The Freewheeling Sprocket

    Loosen the crank bearing stop nut on the left side of the unit using a special tool (part No 7099). Note: The stop nut has a left hand thread. Loosen the stop nut so that by turning the dust cap with magnet, the cone can be adjusted into a “play-free”...

  • Page 41: Flywheel Bearing

    FLYWHEEL BEARING The bearing in the flywheel are lifetime greased and required normally no maintenance. If a problem arises, please contact your Monark dealer. REPLACEMENT OF CRANK SENSOR OR DUST CAP WITH MAGNET Remove left pedal.

  • Page 42: Appendix

    Probable Cause/Corrective Action No Display Check that transformer is plugged into proper voltage AC outlet and that the power connector is plugged into the 839 controller. Display lights up but does Turn off power, wait 10 seconds and reapply power.

  • Page 43: Ymca

    Golding LA, Mayers cr, Sinning WE, “The Y´s way to physical fitness” YMCA of the USA, Rosemont, IL, 1982. Wilson PK, Bell CW, Norton AC, “Rehabilitation of the heart and lungs”, Beckman Instruments, 1980. Astrand P-O,”Work Test With the Bicycle Ergometer”, Monark-Cresent AB, Sweden...
