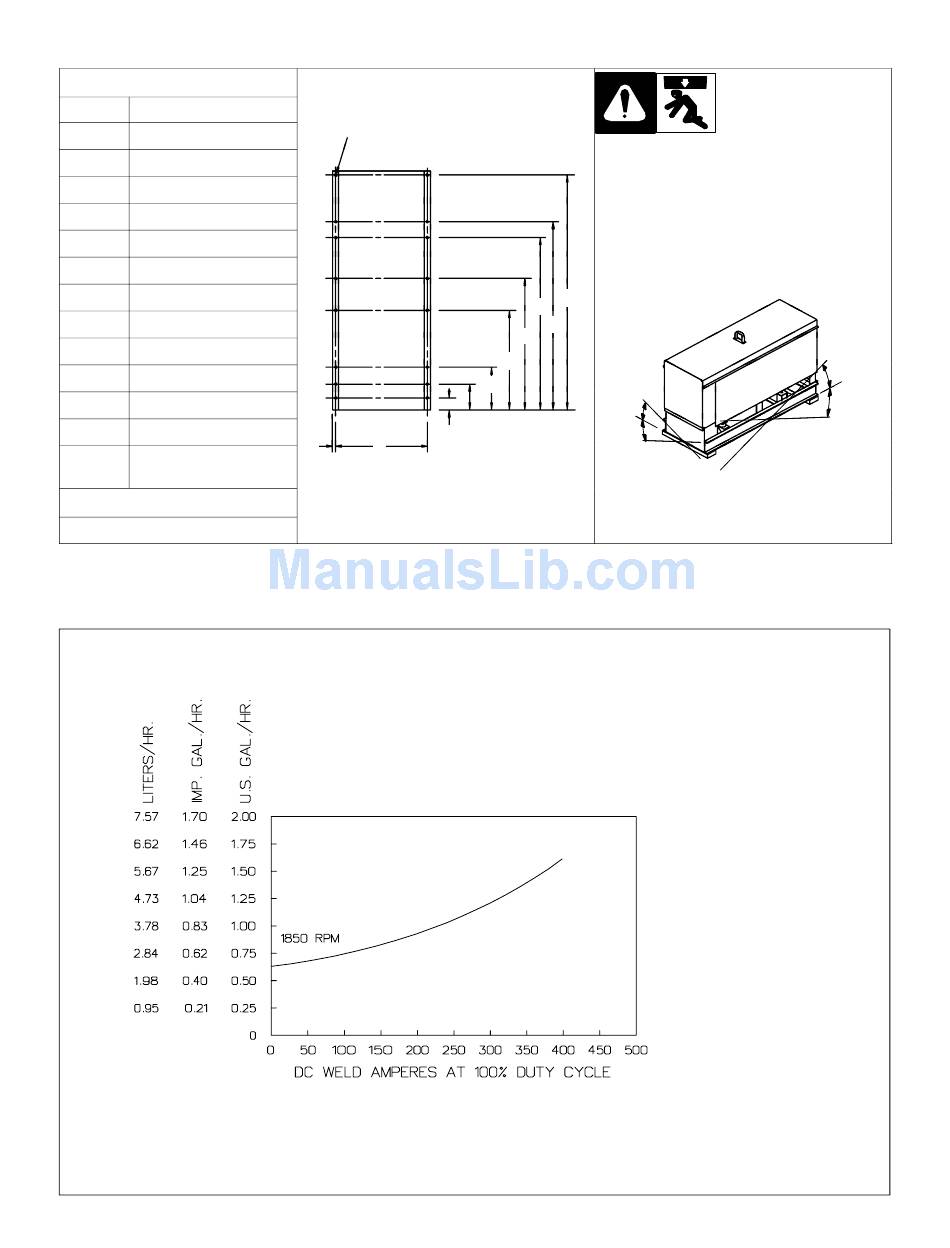

3-2. Dimensions, Weights, And Operating Angles

Dimensions
Height 47-5/8 in (1210 mm)
Width 31-1/4 in (794 mm)
Depth 60-1/2 in (1537 mm)
A 59-1/8 in (1502 mm)
B 47-1/4 in (1200 mm)
C 43-1/4 in (1099 mm)
D 32-3/4 in (832 mm)
E 24-15/16 in (633 mm)
F 10-1/2 in (267 mm)
G 6-1/2 in (165 mm)
H 2-7/8 in (73 mm)
J 29-7/8 in (759 mm)
K 11/16 in (24 mm)
21/32 in (17 mm) Dia.
L
16 Holes
Weight
1898 lb (861 kg)

3-3. Fuel Consumption

OM-463 Page 10
L
Engine End
G G
H H
K K
J J
Y Do not exceed operating angles while run- Y Do not exceed operating angles while run-
ning or engine damage will occur. ning or engine damage will occur.
Y Do not move or operate unit where it could Y Do not move or operate unit where it could
tip. tip.
A A
C C
B B
D D
E E
F F
°
20 20
°
20
ST-158 699
17.5 17.5
17.5
angles_1 3/96 angles_1 3/96
The curve shows typical fuel use
under weld or power loads.
Ref. ST-047 094-C
° °
°
