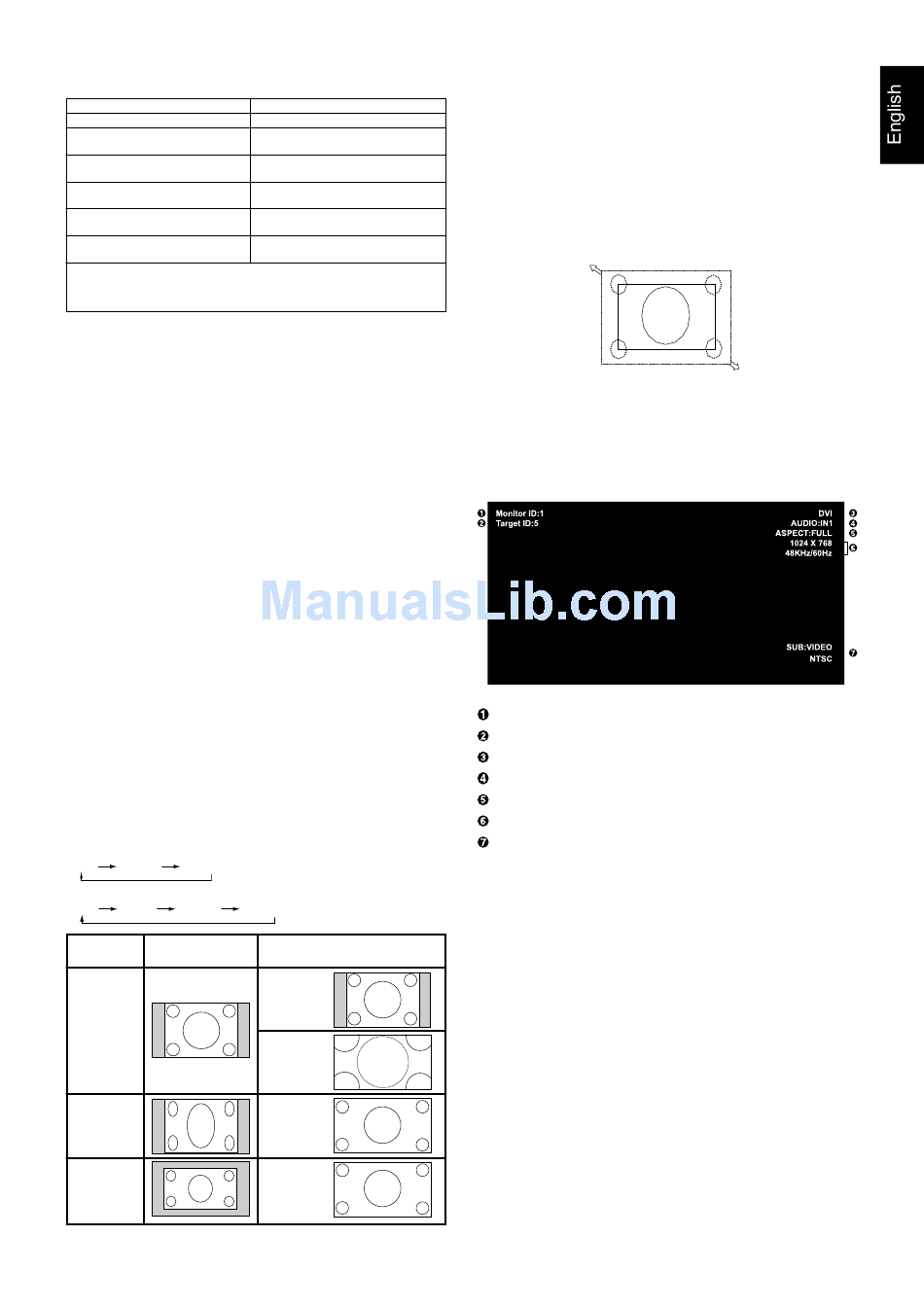

Power Indicator

Mode
Power ON
Power OFF (Eco Standby)*
1
3
Power consumption under 0.5W*
Power OFF (Standby)
3
Power consumption under 2W*
Power Save
Power consumption under 2W*
3
Power Standby when
"SCHEDULE SETTINGS" enabled
Diagnosis (Detecting failure)
*1 When in Eco Standby Mode RS-232C and LAN controls do not function.
*2 If "OFF" is selected in POWER INDICATOR (page 23), the LED will not
light when the LCD monitor is in active mode.
*3 "RS-232C" is selected in EXTERNAL CONTROL.

Using Power Management

The LCD monitor follows the VESA approved DPM Power
Management function.
The power management function is an energy saving
function that automatically reduces the power consumption
of the display when the keyboard or the mouse has not been
used for a fixed period.
The power management feature on your new display has
been set to the "ON" mode. This allows your display to enter
a Power Saving Mode when no signal is applied. This could
potentially increase the life and decrease the power
consumption of the display.
STANDBY mode is used when the display is connected to
an RS-232C cable or when using the INPUT DETECT
function.
ECO STANDBY uses less power, but the RS-232C and
INPUT DETECT functions are not available.

Selecting a video source

To view a video source:
Use the input button to set [VIDEO].
Use the COLOR SYSTEM menu to set [AUTO], [NTSC],
[PAL], [SECAM], [PAL60], [4.43NTSC], according to your
video format.

Picture Aspect

DVI, VGA, RGB/HV
FULL
ZOOM
NORMAL
HDMI, DVD/HD1, DVD/HD2, SCART, VIDEO1, VIDEO2, S-VIDEO, TV*
FULL
WIDE
ZOOM
Aspect ratio
Unchanged view*
of image
4:3
Squeeze
Letterbox
*
1
Grey areas indicate unused portions of the screen.
Status Indicator Light
Green*
2
Red
Amber
Amber Blinking
Green and Amber blink alternately
Red Blinking
(See Troubleshooting page 34)
NORMAL
1
Recommended selection
for picture aspect*
1
NORMAL
ZOOM
(DYNAMIC)
FULL
WIDE
NORMAL: Displays the aspect ratio the same as it is sent
from the source.
FULL: Fills entire screen.
WIDE: Expands a 16:9 letter box signal to fill entire screen.
ZOOM (DYNAMIC): Expands a 4:3 pictures to fill the entire
screen with non-linearity. Some of the outside image area
will be cut off due to expansion.
ZOOM
The image can be expanded beyond the active display area.
The image which is outside of active display area is not
shown.
ZOOM

Information OSD

The Information OSD provides information such as:
Monitor ID, Input Source, Picture Size, etc. Press the
DISPLAY button on the remote to bring up the Information
OSD.
ID number assigned to current monitor*
ID number assigned monitor to be controlled via RS-232C*
Input Name
Audio input mode
Picture aspect
Input Signal Information
Sub picture information
*3: "IR CONTROL" should be set "Primary" or "Secondary".
*4: "IR CONTROL" should be set "Primary".
*: The product you purchased may not have this feature.
English-17
