1. Determine the installation location
CAUTION: Installing your LCD display must be done by a
qualified technician. Contact your dealer for
CAUTION: MOVING OR INSTALLING THE LCD MONITOR
MUST BE DONE BY TWO OR MORE PEOPLE.
Failure to follow this caution may result in injury if
the LCD monitor falls.
CAUTION: Do not mount or operate the display upside
down, face up, or face down.
CAUTION: This LCD has a temperature sensor and cooling
fan. If the LCD becomes too hot, the cooling fan
will turn on automatically. If the LCD becomes
overheated while the cooling fan is running, a
"Caution" warning will appear. If the "Caution"
warning appears, discontinue use and allow the
unit to cool. Using the cooling fan will reduce the
likelihood of early circuit failure and may help
reduce image degradation and "Image
If the LCD is used in an enclosed area or if the
LCD panel is covered with a protective screen,
please check the inside temperature of the
monitor by using the "HEAT STATUS" control in
the OSD (see page 24). If the temperature is
higher than the normal operating temperature,
please turn the cooling fan to ON within the FAN
CONTROL menu within the OSD (see page 24).
IMPORTANT: Lay the protective sheet, which was wrapped
around the LCD monitor when it was
packaged, beneath the LCD monitor so as
not to scratch the panel.

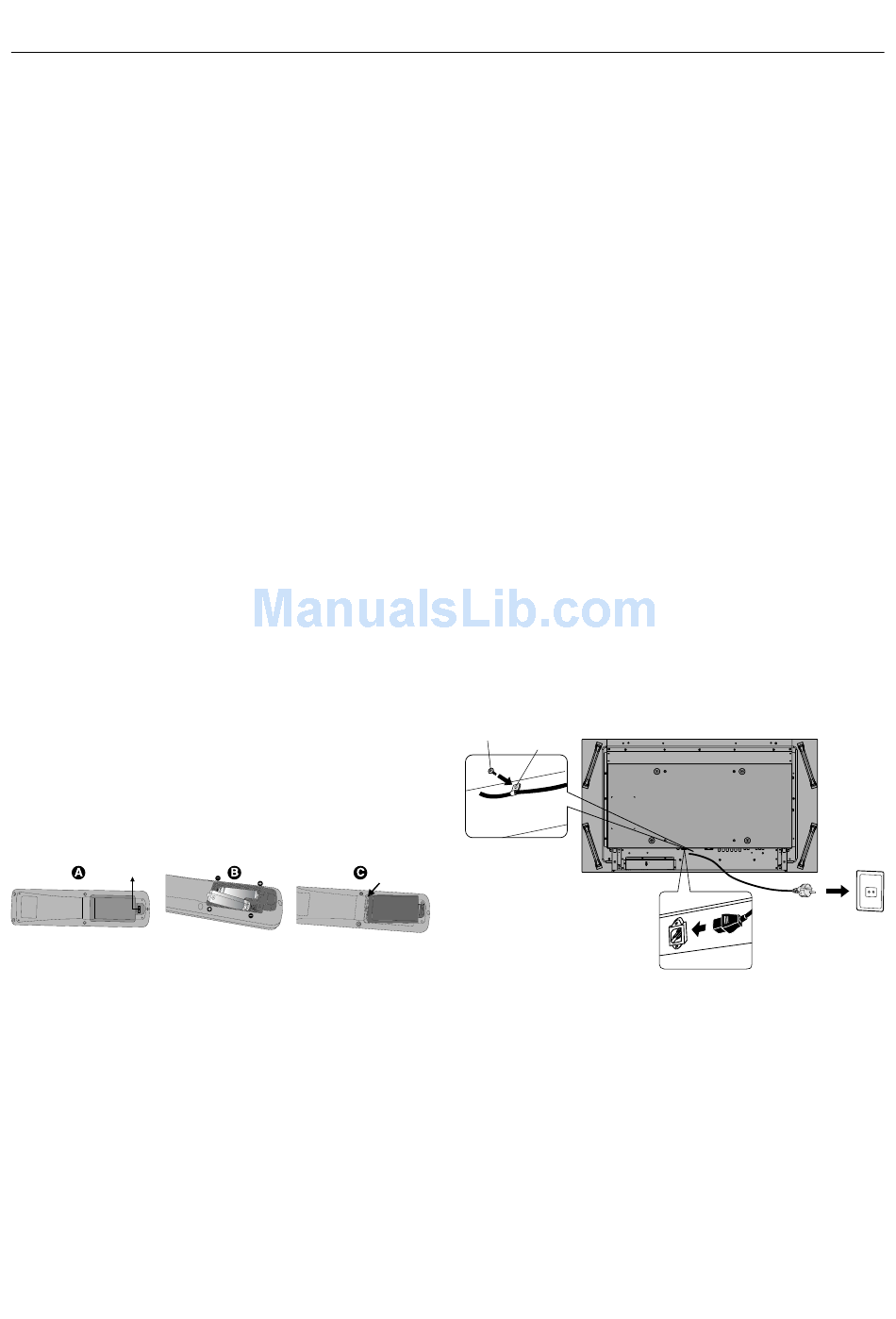

2. Install the remote control (Optional)
The remote control is powered by two 1.5V AA batteries.
To install or replace batteries:
A. Press and slide to open the cover.
B. Align the batteries according to the (+) and (–)
indications inside the case.
C. Replace the cover.
CAUTION: Incorrect usage of batteries can result in leaks
NEC recommends the following battery use:
Place "AA" size batteries matching the (+) and (-) signs
on each battery to the (+) and (-) signs of the battery
Do not mix battery brands.
Do not combine new and old batteries. This can shorten
battery life or cause liquid leakage of batteries.
Remove dead batteries immediately to prevent battery
acid from leaking into the battery compartment.
Do not touch exposed battery acid, it may injure skin.
NOTE: If you do not intend to use the Remote Control for a
long period of time, remove the batteries.
3. Connect external equipment
(See pages 14 and 15)
To protect the external equipment; turn off the main
power before making connections.
Refer to your equipment user manual for further
4. Connect the supplied power cord
The equipment should be installed close to an easily
accessible power outlet.
Please fasten power cord to the LCD monitor by
attaching the screw (silver) and clamp.
Fully insert the prongs into the power outlet socket.
A loose connection may cause image degradation.
NOTE: Please refer to the "Safety Precautions and
Maintenance" section of this manual for proper
selection of AC power cord.
