1. REMOVAL OF MECHANICAL PARTS
AND P.C. BOARDS

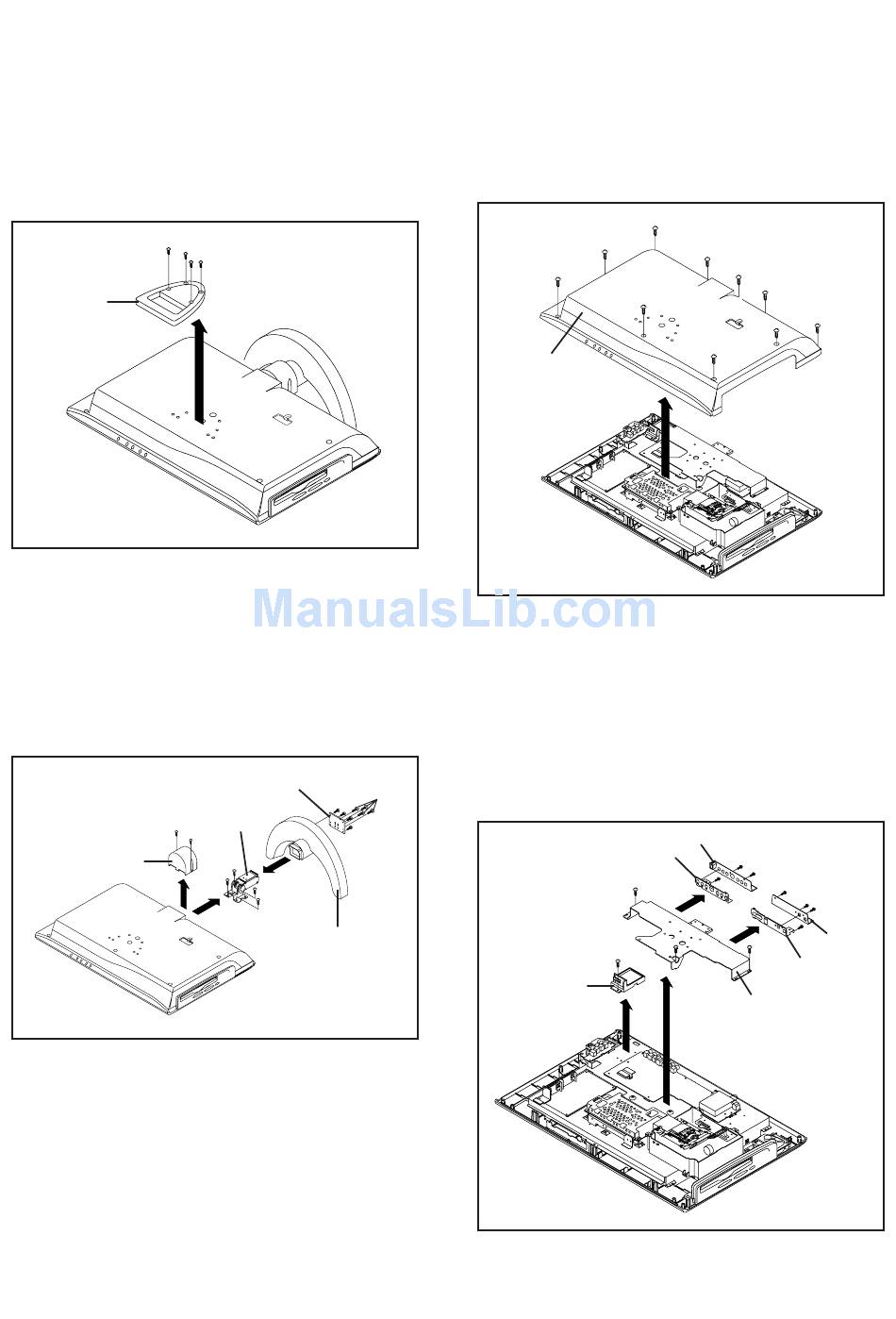

1-1: HANDLE (Refer to Fig. 1-1)
1.
Remove the 4 screws (1).
2.
Remove the Handle in the direction of arrow.
(1)
Handle
1-2: HINGE ASS'Y (Refer to Fig. 1-2)
1.
Remove the 2 screws (1).
2.
Remove the Hinge Cover in the direction of arrow (A).
3.
Remove the 4 screws (2).
4.
Remove the Stand Block in the direction of arrow (B).
5.
Remove the 4 screws (3).
6.
Remove the Hinge Ass'y in the direction of arrow (C).
7.
Remove the 4 screws (4).
8.
Remove the Stand in the direction of arrow (C).
(1)
Hinge Cover
(A)
DISASSEMBLY INSTRUCTIONS
(1)
(1)
(1)
Stand Angle Ass'y
(4)
(4)
Hinge Ass'y
(1)
(4)
(2)
(2)
(C)
(2)
(2)
(B)
Stand
1-3: BACK CABINET (Refer to Fig. 1-3)
1.
Remove the 8 screws (1).
2.
Remove the screw (2).
3.
Remove the screw (3).
4.
Remove the Back Cabinet in the direction of arrow.
Back Cabinet
Fig. 1-1
1-4: BACK ANGLE (Refer to Fig. 1-4)
1.
Remove the screw (1).
2.
Remove the AC-Cord Holder in the direction of arrow (A).
3.
Remove the screw (2).
4.
Remove the 4 screws (3).
5.
Remove the 2 screws (4).
6.
Remove the Jack Plate and Jack Shield in the direction
of arrow (B).
7.
Remove the 3 screws (5).
(3)
8.
Remove the Back Angle in the direction of arrow (C).
(4)
AC-Cord Holder
Fig. 1-2
B1-1
(1)
(1)
(1)
(1)
(2)
(1)
Jack Plate
Jack Shield
(5)
(B)
(5)
(1)
(A)
(C)
(3)
(1)
(1)
(1)
Fig. 1-3
(3)
(3)
(4)
(3)
(2)
(3)
(B)
(4)
Jack Plate
(5)
Jack Shield
Back Angle
Fig. 1-4
