Tilt and swivel

Grasp both sides of the monitor screen with
your hands and adjust the tilt and swivel as
desired (Figure TS.1).

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting
purposes:
1. Disconnect all cables.
2. Place monitor face down on a
non-abrasive surface
(Figure R.1).
3. Remove the hinge cover
(Figure R.1).
4. Remove the 4 screws
connecting the monitor to the
stand and lift off the stand
assembly (Figure R.2).
The monitor is now ready for
mounting in an alternate
manner.
5. Connect the AC cord and signal
cable to the back of the monitor (Figure R.3).
6. Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method.
NOTE: Handle with care when removing monitor stand.

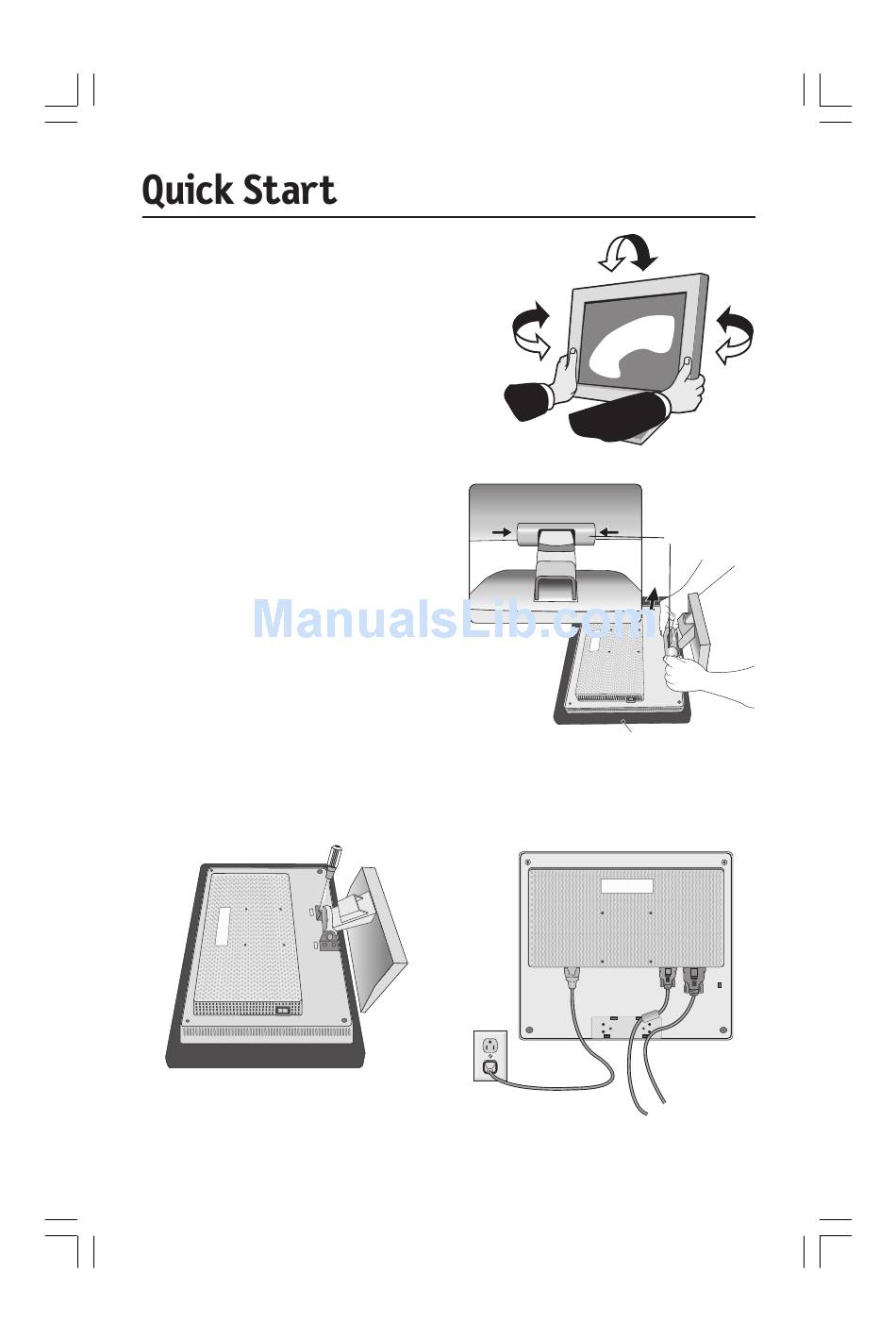

Figure R.2
