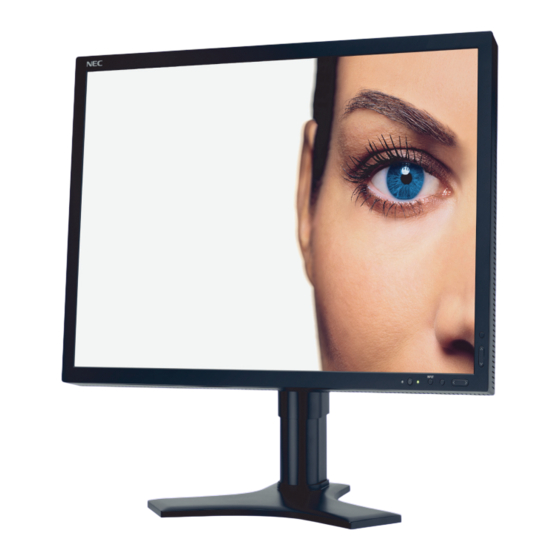

NEC MultiSync LCD1990SX User Manual
Nec monitor user's manual
Hide thumbs
Also See for MultiSync LCD1990SX:
- User manual (142 pages) ,
- Specifications (6 pages) ,
- Brochure & specs (6 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for NEC MultiSync LCD1990SX
Summary of Contents for NEC MultiSync LCD1990SX
- Page 1 MultiSync LCD1990SX User’s Manual...
-
Page 2: Table Of Contents
Index Warning, Caution ... English-1 Declaration ... English-1 Canadian Department of Communications Compliance Statement ... English-2 Declaration of Conformity ... English-2 Contents ... English-3 Quick Start ... English-4 Controls ... English-8 Recommended use ... English-13 Specifications ... English-15 Features ... English-16 Troubleshooting ... -
Page 3: Warning, Caution
U.S.A./Canada Voltage 120* *When operating the MultiSync LCD1990SX monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. NOTE: This product can only be serviced in the country where it was purchased. -
Page 4: Canadian Department Of Communications Compliance Statement
C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1. FCC Information Use the attached specified cables with the MultiSync LCD1990SX colour monitor so as not to interfere with radio and television reception. -
Page 5: Contents
Contents Your new NEC monitor box* should contain the following: • MultiSync LCD1990SX monitor with tilt/swivel/pivot/height adjust stand • Power Cord • Video Signal Cable (15-pin mini D-SUB male to DVI-A) • Video Signal Cable (DVI-D to DVI-D cable) •... -
Page 6: Quick Start
Please check Tilt, Rise and Lower monitor screen and screen rotation when you manage cables. Highest Stand Position DVI-I DVI-D DC-OUT D-SUB Figure C.1 NEC optional product attachment. Do not use this connector unless specified. Figure A.2 30˚ Tilt Power cord English-4 Macintosh Cable Adapter Figure B.1 (not included) Figure C.2... - Page 7 Figure C.3 7. Hold all cables firmly and place the cable cover onto the stand (Figure D.1). To remove the cable cover, lift the cover off as shown in Figure D.2. 8. Connect one end of the power cord to the AC inlet on the back of the monitor and the other end to the power outlet. NOTE: Please refer to Caution section of this manual for proper selection of AC power cord.
-
Page 8: Raise And Lower Monitor Screen
Raise and Lower Monitor Screen The monitor may be raised or lowered in either Portrait or Landscape mode. To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1). NOTE: Handle with care when raising or lowering the monitor screen. -
Page 9: Remove Monitor Stand For Mounting
Remove Monitor Stand for Mounting To prepare the monitor for alternate mounting purposes: 1. Disconnect all cables. 2. Place hands on each side of the monitor and lift up to the highest position. 3. Place monitor face down on a non-abrasive surface (Figure S.1). 4. -
Page 10: Controls
Controls OSD (On-Screen Display) control buttons on the front of the monitor function as follows: To access OSD menu, press MENU button. To change signal input, press the SELECT button. NOTE: OSD must be closed in order to change signal input. 1 AUTO DIMMING SENSOR Detects the level of ambient lighting allowing the monitor to make adjustments to various settings resulting in a more comfortable viewing experience. -
Page 11: Eco Mode
ECO MODE Decreases the amount of power consumed by reducing the brightness level. 1: Decreases the brightness by 25%. 2: Decreases the brightness by 50%. CUSTOM: Decreases the brightness level as determined by the user. Refer to the Advanced OSD menu for custom setting instructions. AUTO BRIGHTNESS There are three settings for Auto Brightness. -
Page 12: Color Control Systems
AUTO FINE (Analog input only) This function automatically and periodically adjusts the “FINE” setting for change in signal condition. This function adjusts approximately every 33 minutes. EXPANSION Sets the zoom method. FULL: The image is expanded to 1280 x 1024, regardless of the resolution. ASPECT: The image is expanded without changing the aspect ratio. -
Page 13: Off Timer
OFF TIMER Monitor will automatically power-down when the end user has selected a pre-determined amount of time. Before powering off, a message will appear on the screen asking the user if they want to delay the turn off time by 60 minutes. Press any OSD button to delay the turn off time. OFF MODE This function allows the monitor to enter into a power saving mode after a period of inactivity. -
Page 14: Hot Key
RESOLUTION NOTIFIER This optimal resolution is 1280 x 1024. If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at 1280 x 1024. HOT KEY You can adjust the brightness and contrast directly. When this function is set to ON, you can adjust the brightness with “Left”... -
Page 15: Recommended Use
NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. - Page 16 CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE • For optimum performance, allow 20 minutes for warm-up. • Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
-
Page 17: Specifications
NOTE: Technical specifications are subject to change without notice. MultiSync LCD1990SX Monitor Notes Active matrix; thin film transistor (TFT) liquid crystal display (LCD);... -
Page 18: Features
Allows for the monitor to be mounted on a wall or an arm using any third party compliant device. Visual Controller: Is a ground-breaking software family, developed by NEC Display Solutions, providing intuitive access to all monitor setting controls and remote diagnosis via the Windows interface, based upon the VESA standard, DDC/CI. Using a standard VGA or DVI signal cable, Visual Controller can either benefit single users or, with Visual Controller Administrator, can reduce the Total Cost of Ownership through remote network-wide maintenance, diagnosis and asset-reporting. -
Page 19: Troubleshooting
NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. -
Page 20: Appendix
Appendix If you need detailed information about the controls, please use the advanced menu. <How to use the advanced menu> • Turn off your monitor. • Turn on your monitor by pushing the “POWER” and “SELECT” button at the same time for at least one second simultaneously. - Page 21 Tag3 Auto Adjust Automatically adjusts the Image Position and H.Size settings and Fine settings. (Analog input only) Press “SELECT” to activate Auto Adjustment. Signal Adjust Determines when the auto adjustment is activated automatically. (Analog input only) The choices are “SIMPLE” and “FULL”. Press “Left” or “Right” to select. SIMPLE FULL O: Automatic Adjustment X: No Automatic Adjustment...
- Page 22 H.ZOOM The image is expanded from 1 to 3 times in the horizontal (H. EXPANSION) direction by 0.01 increments. (Available in Custom Expansion mode only) V.ZOOM The image is expanded from 1 to 3 times in the vertical (V. EXPANSION) direction by 0.01 increments.
- Page 23 Video Detect Selects the method of video detection when more than one computer is connected. Press “Left” or “Right” to select. FIRST: The video input has to be switched to “FIRST” mode. When current video input signal is not present, then the monitor searches for a video signal from the other video input port.
- Page 24 OSD Lock Out This control completely locks out access to all OSD control functions. When attempting to activate OSD controls while in the Lock Out mode, a screen will appear indicating the OSD controls are locked out. There are three types of OSD LOCK OUT: OSD LOCK OUT with BRIGHTNESS and CONTRAST control: To activate the OSD Lock Out function, press SELECT, then “UP”...
- Page 25 Screen Saver Use the SCREEN SAVER to reduce the risk of image persistence. MOTION (Default OFF): Screen image moves periodically in 4 directions in order to reduce the risk of image retention. Timing for MOTION can be set so the screen image moves in intervals from every 10 to 900 seconds.
- Page 26 TagC Schedule TagD Eco Mode Information TagE Information Programs the monitor’s working schedule. Schedule the power on and power off with hour and a day of the week. Also sets the input port. Using the “SCHEDULE” function allows you to set up to seven different scheduled time intervals when the LCD Monitor will be activated.
-
Page 27: Using The Auto Brightness Function
Using the Auto Brightness function The brightness of the LCD screen can be set to increase or decrease depending on the amount of ambient light within the room. If the room is bright, the monitor becomes correspondingly bright. If the room is dim, then the monitor will dim accordingly. -
Page 28: Tco'03
TCO’03 Some of the features of the TCO’03 Display requirements: Ergonomics • Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability. Energy •... -
Page 29: Manufacturer's Recycling And Energy Information
Manufacturer’s Recycling and Energy Information NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally- friendly products, and always strive to help define and comply with the latest independent standards from agencies such as ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).
