Tilt and swivel

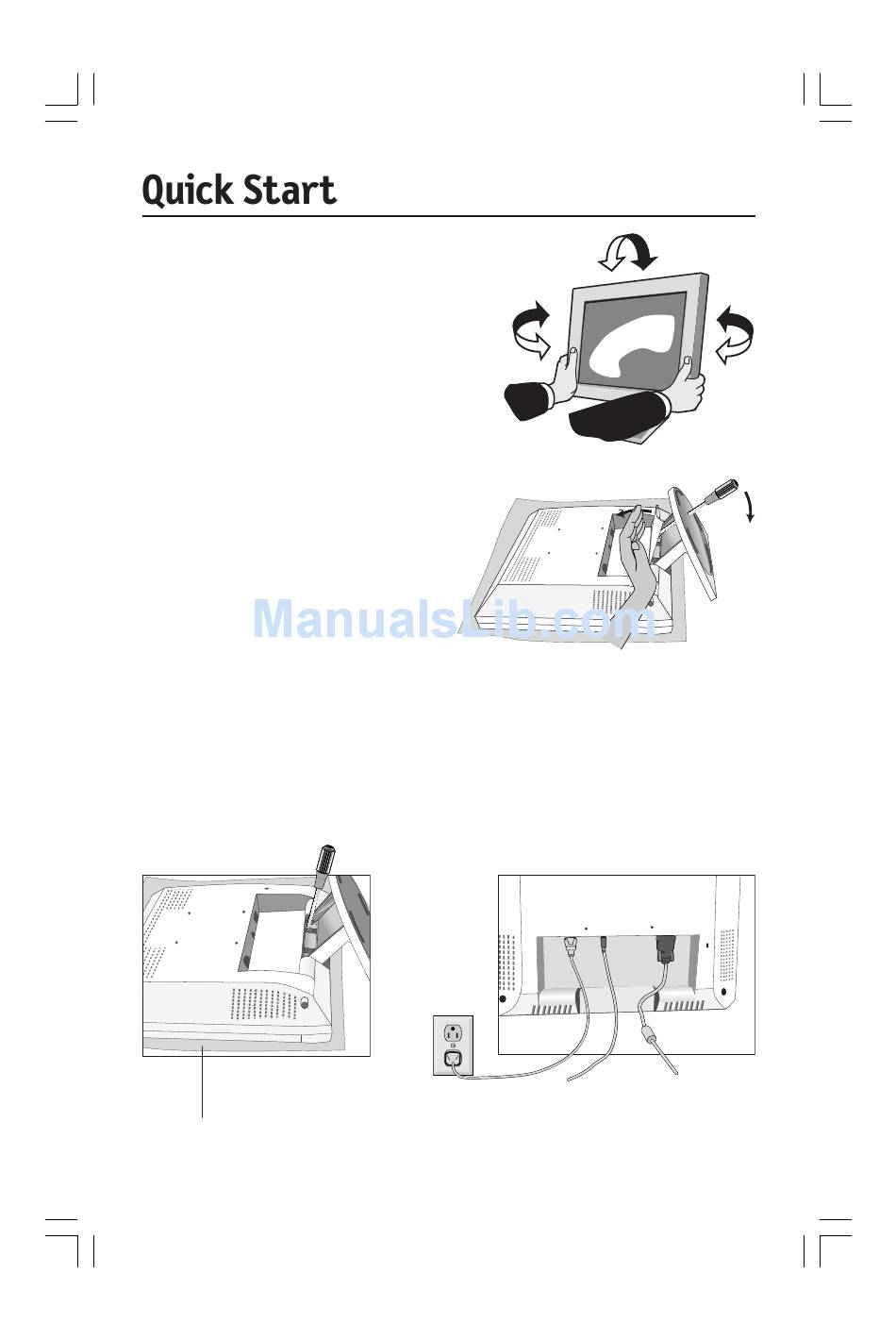

Grasp both sides of the monitor screen with
your hands and adjust the tilt and swivel as
desired (Figure TS.1).

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting
purposes:
1. Disconnect all cables.
2. Place monitor face down on a
non-abrasive surface. Insert a
screw driver (or similar object)
into the hole on the bottom of
stand. As shown in the picture,
hold the stand cover in hand and
lift up gradually by the stick and
then remove (Figure R.1).
3. Remove the 4 screws
connecting the monitor to the
stand and lift off the stand
assembly (Figure R.2).
The monitor is now ready for mounting in an alternate manner.
4. Connect the AC cord, signal cable and Audio cable to the back of the
monitor (Figure R.3).
5. Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method.
