Connecting a DVD Player with component out*

Connecting your DVD player to your LCD monitor will enable you to display DVD video.
Refer to your DVD player user's manual for more information.

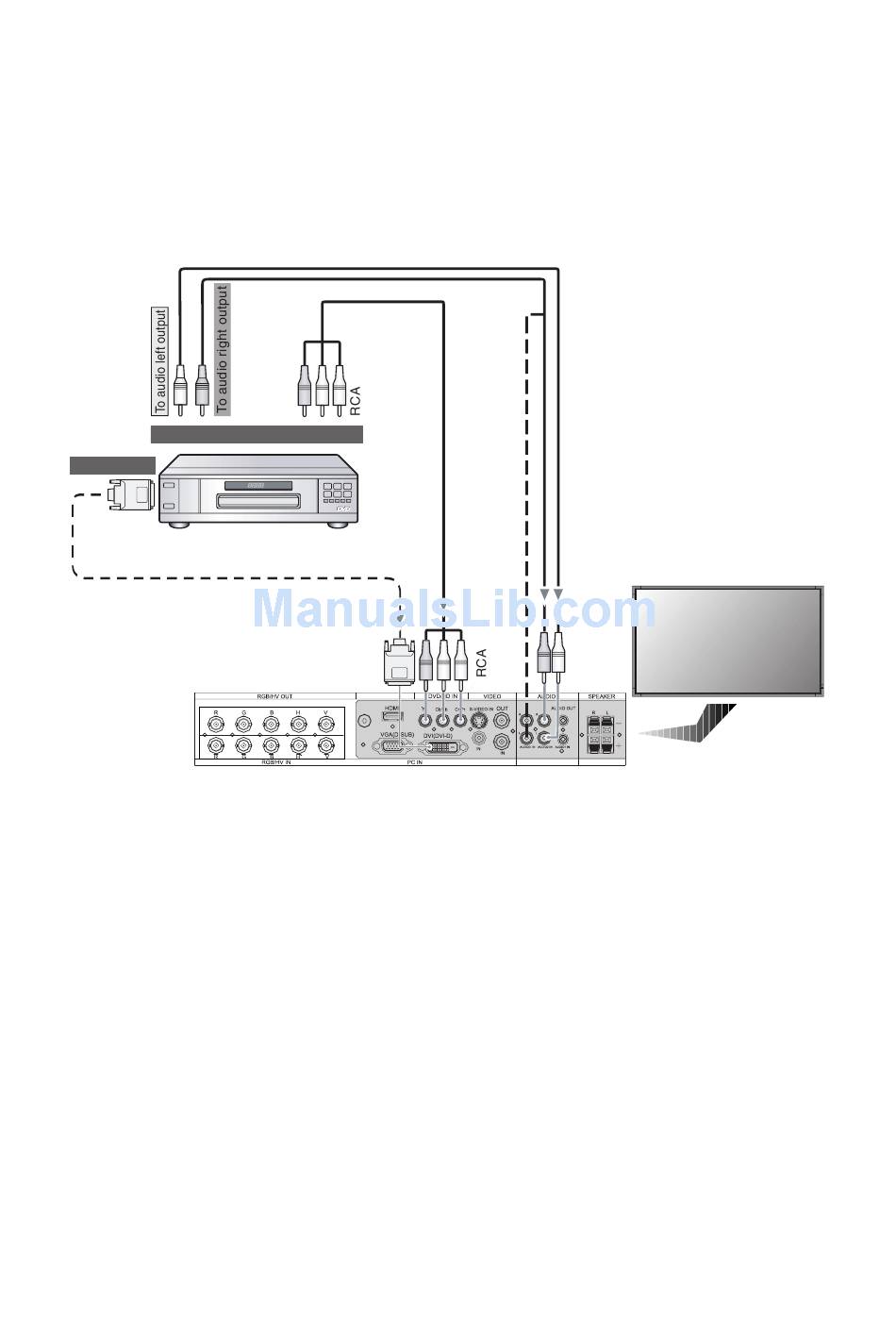

Connect the LCD Monitor to a DVD Player

• To connect the DVD/HD IN connector (RCA) on the LCD monitor, use an RCA connector cable (sold separately).
Some DVD players may have different connectors such as DVI-D connector.
Select [DVI/HD] mode from the "DVI MODE" menu. For mode selection, see "DVI MODE" on page 28.
AUDIO IN* 1, 2 and 3 can be used for audio input. To select audio source [IN1], [IN2] or [IN3] press the AUDIO INPUT
button.
To DVD Component video output
To DVI output
*: The product you purchased may not have this feature.
DVI-D connector
English-18
LCD monitor
