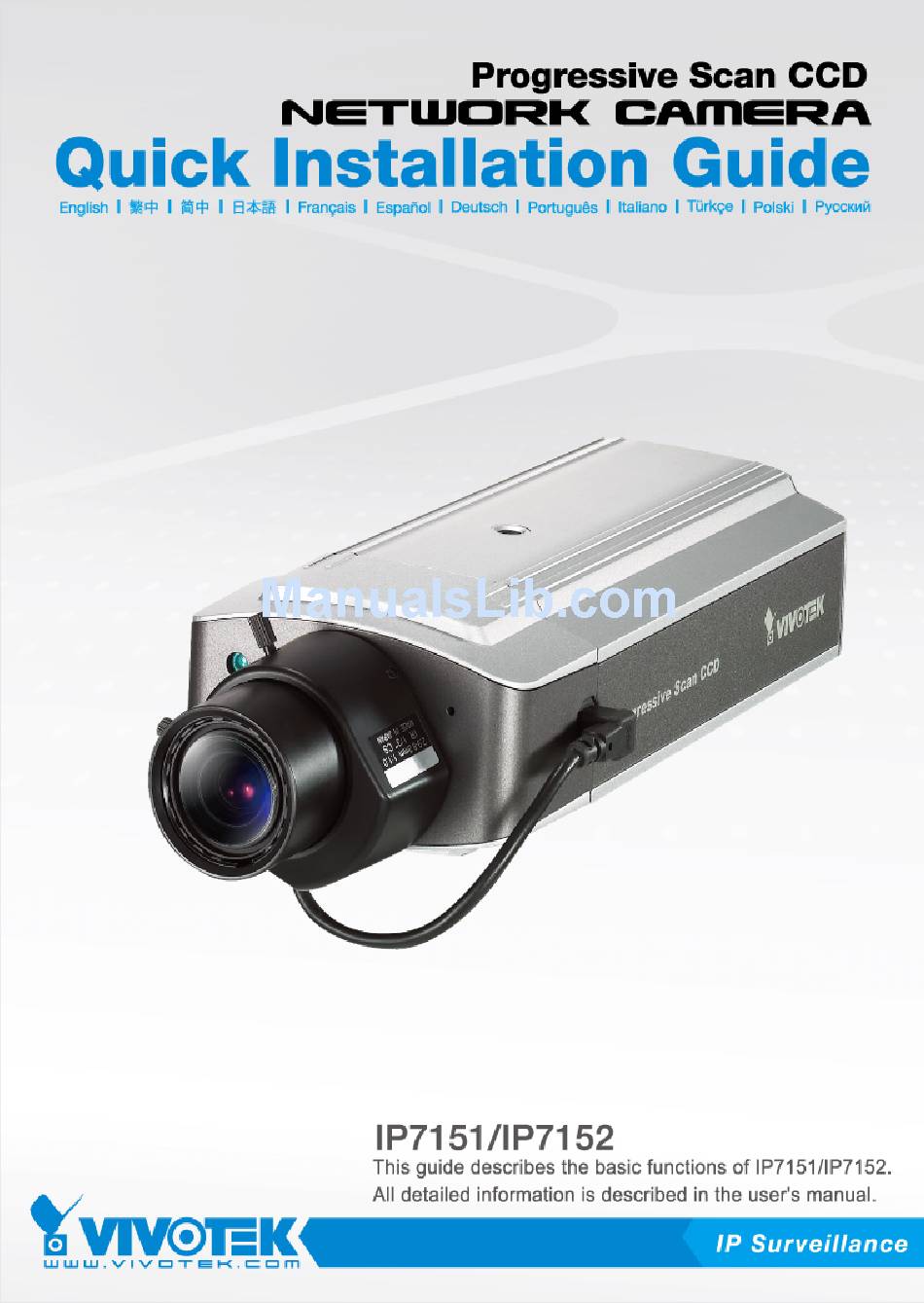

Vivotek IP7151 Quick Installation Manual

Vivotek IP7151 Quick Installation Manual

Progressive scan ccd network camera
Hide thumbs Also See for IP7151:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP7151 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivotek IP7151

Summary of Contents for Vivotek IP7151

  • Page 2: Warning Before Install

    Warning Before Install Power off the Network Camera Keep the Network Camera away as soon as it is found smoking or from water. If the Network Camera smelt unusual. is wet, power off immediately. Contact your distributor when such Contact your distributor when such cases happen.
  • Page 3 Do not touch the Network Camera Do not place the Network Camera on unsteady surfaces. when it's lightening. Do not disassemble the Network Do not drop the Network Camera. Camera. Do not insert any object into the Network Camera, such as needles. EN - ...

  • Page 4: Check Package Contents

    Check Package Contents IP7151 / IP7152 Power adapter Camera stand Lens Software CD Quick installation guide Warranty card Antenna (IP7152 only) EN - ...

  • Page 5: Physical Description

    Physical Description Front panel Antenna (IP75 only) Built-in MIC Light sensor Status LED Back panel Antenna (IP75 only) External/Internal MIC switch Audio out MIC in Ethernet 0/00 Power cord socket RJ5 socket General I/O Indented reset button terminal block Lens Focus controller Zoom controller EN - ...

  • Page 6: Mounting The Lens To The Camera

    Mounting the Lens to the Camera . Mount the lens by turning it clockwise onto the camera mount until it stops. If necessary, turn the lens counterclockwise slowly until it gets the best attitude. . Connect the lens cable plug to the camera connector. .

  • Page 7: General Connection (Without Poe)

    Network Deployment General Connection (without PoE) General Connection (without PoE) . Connect the camera to a hub via Ethernet cable. . Connect the supplied power cable from the camera to a power outlet. Ethernet hub EN - ...
  • Page 8 Power over Ethernet (PoE) (IP7151 only) Power over Ethernet (PoE) (IP7151 only) When using a PoE-enabled hub The camera is PoE-compliant, allowing transmission of power and data via single Ethernet cable. See the following illustration to connect the camera to a PoE- enabled hub via Ethernet cable.

  • Page 9: Assigning Ip Address

    "Next" button to continue the program. Installation Wizard 2 . The program will search the Vivotek Video Receivers, Video Servers or Network Cameras on the same LAN. . After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the bottom of your device to connect the Internet Explorer to the Network Camera.

  • Page 10: Retrieving Images

    Retrieving Images For further setup, please refer to user's manual on the software CD. EN - ...
  • Page 11 Configure the Wireless Connection (IP7152 only) . Check the SSID currently set on your wireless access point (AP). 2. Go to IP7152's Configuration > Wireless LAN. . Type in the SSID consistent with the setting on your AP. . Select the Wireless mode as "Infrastructure".

This manual is also suitable for:

Ip7152
