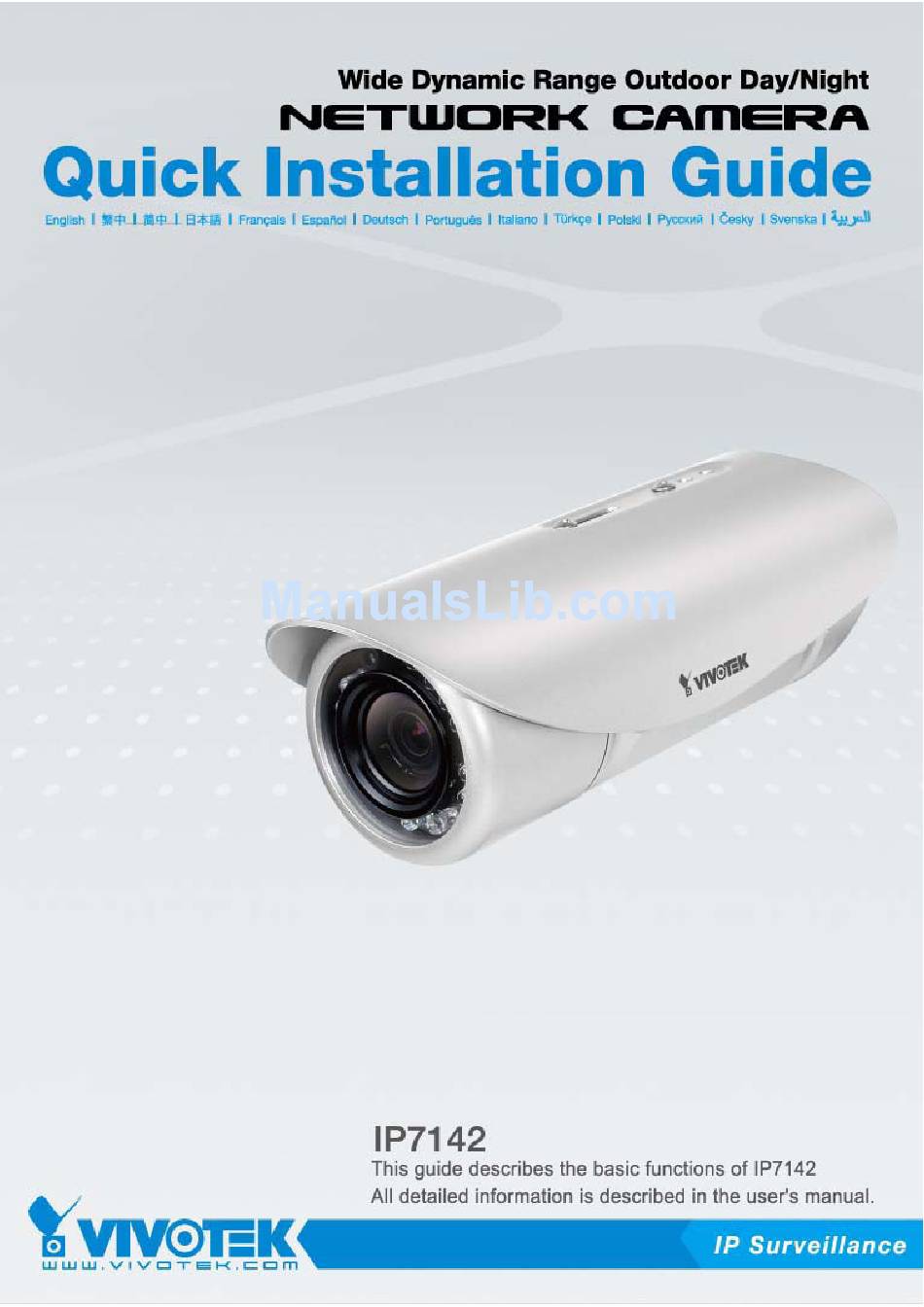

Vivotek IP7142 Quick Installation Manual

Vivotek IP7142 Quick Installation Manual

Wide dynamic range outdoor day/night
Hide thumbs Also See for IP7142:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Quick Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP7142 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivotek IP7142

Summary of Contents for Vivotek IP7142

  • Page 2: Warning Before Install

    Warning Before Install Power off the Network Camera Refer to your user's manual for the as soon as it is found smoking or operating temperature. smelt unusual. Contact your distributor when such cases happen. Do not touch the Network Camera Do not place the Network Camera when it's lightening.

  • Page 3: Package Contents

    Package Contents IP7142 Sun Shield Camera stand Screws Silica gel Power adapter Quick installation guide RJ45 female/female coupler Software CD Warranty card EN-2...

  • Page 4: Physical Description

    Physical Description Front panel Light sensor Lens IR LED Reset button Status LED Connectors General I/O terminal block Ethernet 10/100 RJ45 plug Audio out (green) Microphone in (pink) Power cord socket (black) Earth EN-3...

  • Page 5: Hardware Installation

    Hardware Installation 1. Open the lens cover. 2. Secure the Network Camera to the wall/ceiling by the supplied camera stand. EN-4...

  • Page 6: Network Deployment

    Network Deployment General Connection (without PoE) 1. If you have external devices such as sensors and alarms, make connections from general I/O terminal block. N . C . : No Connector 4 8 5 B : RS485- N.C. 485B 4 8 5 A : RS485+ 485A AC24V 2.
  • Page 7 Power over Ethernet (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via single Ethernet cable. See the following illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable. PoE switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and...

  • Page 8: Assigning Ip Address

    "Next" button to continue the program. Installation Wizard 2 3. The program will search the VIVOTEK Video Receivers, Video Servers or Network Cameras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the side of the camera lens or S/N number on the label of carton to connect the Internet Explorer to the Network Camera.

  • Page 9: Ready To Use

    Ready to Use 1. Access to the Network Camera from the Internet. 2. Retrieve live video through web browsers or recording software. For further setup, please refer to user's manual on the software CD. 3. Unscrew the zoom controller to adjust the zoom factor.
  • Page 10 5. Put the supplied silica gel into the Network Camera and tighten the lens cover. (Please replace the silica gel with a new one if you open the lens cover after installation.) Note If you want to use the supplied sun sheild for outdoor environments, please follow the steps below to install: 1.
