Sony XM-DS1300P5 Service Manual

Hide thumbs

Advertisement

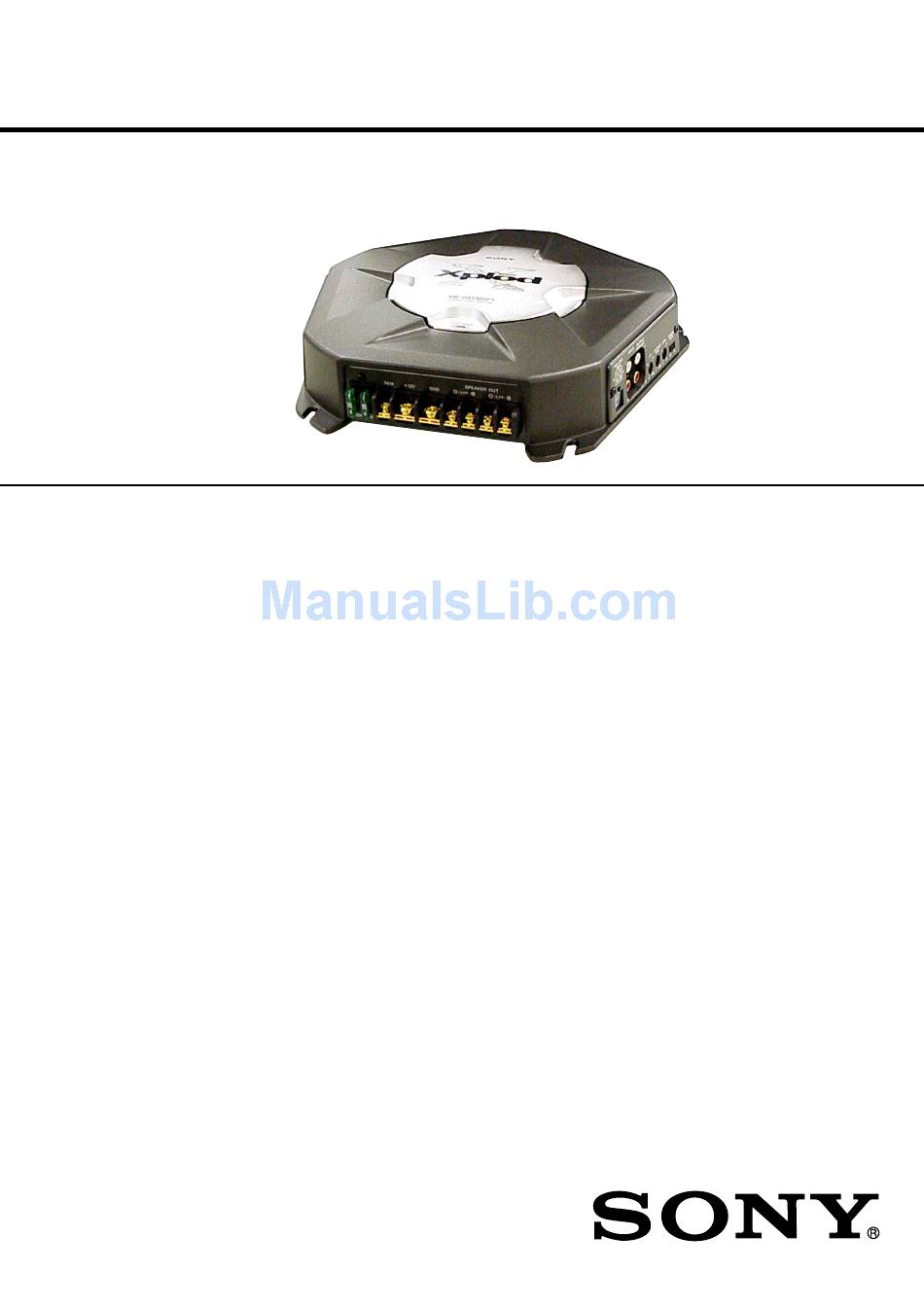

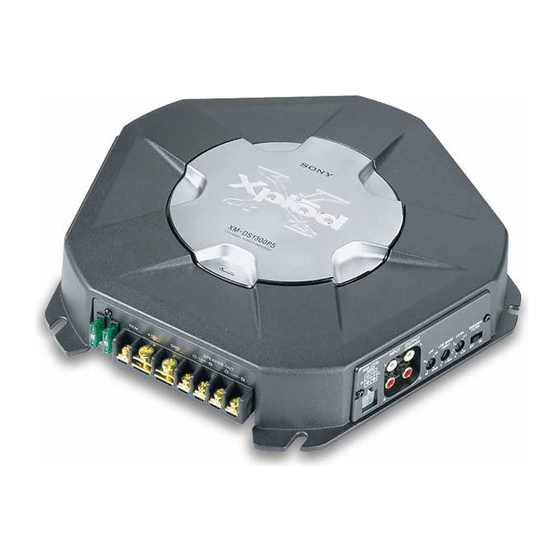

SERVICE MANUAL

Ver 1.0 2003. 12
AUDIO POWER SPECIFICATIONS (US MODEL)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
200 watts minimum continuous average power into 4 ohms,
20 Hz to 300 Hz with no more than 0.2% total harmonic
distortion per Car Audio Ad Hoc Committee standards.
Other Specifications
Circuit system
Class D Technology
Pulse power supply
Inputs
RCA pin jacks
High level input connector
Outputs
Speaker terminals
Through out pin jacks
Suitable speaker impedance
2 – 8 Ω
Maximum outputs
400 W (at 4 Ω)
800 W (at 2 Ω)
Rated outputs (supply voltage at 14.4 V)
200 W (20 Hz – 300 Hz, 0.2% THD, at 4 Ω)
400 W (20 Hz – 300 Hz, 0.6% THD, at 2 Ω)
+0.5
Frequency response
5 – 300 Hz (
–3
Harmonic distortion
0.06% or less (at 100 Hz, 4 Ω)
Input level adjustment range
0.3 – 6.0 V (RCA pin jacks)
1.2 – 12.0 V (High level input)
Sony Corporation
9-961-897-01
2003L04-1
e Vehicle Company
© 2003. 12
Published by Sony Engineering Corporation
XM-DS1300P5
SPECIFICATIONS
dB)
Sub-sonic filter
15 Hz, –12 dB/oct
Low-pass filter
50 – 300 Hz, –12 dB/oct
Low boost
0 – 10 dB (40 Hz)
Power requirements
12 V DC car battery
(negative ground)
Power supply voltage
10.5 – 16 V
Current drain
at rated output : 50 A (at 2 Ω)
Remote input : 2 mA
Dimensions
Approx. 295 × 57 × 290 mm
× 2
× 11
(11
5/8
1/4
projecting parts and controls
Mass
Approx. 2.8 kg (6 lb. 3 oz.) not incl. accessories
Supplied accessories
Mounting screws (5)
High level input cord (1)
Protection cap (1)
Design and specifications are subject to change without
notice.
Notes on Chip Component Replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.
MONAURAL POWER AMPLIFIER
US Model
Canadian Model
in.) (w/h/d) not incl.
1/2
1
