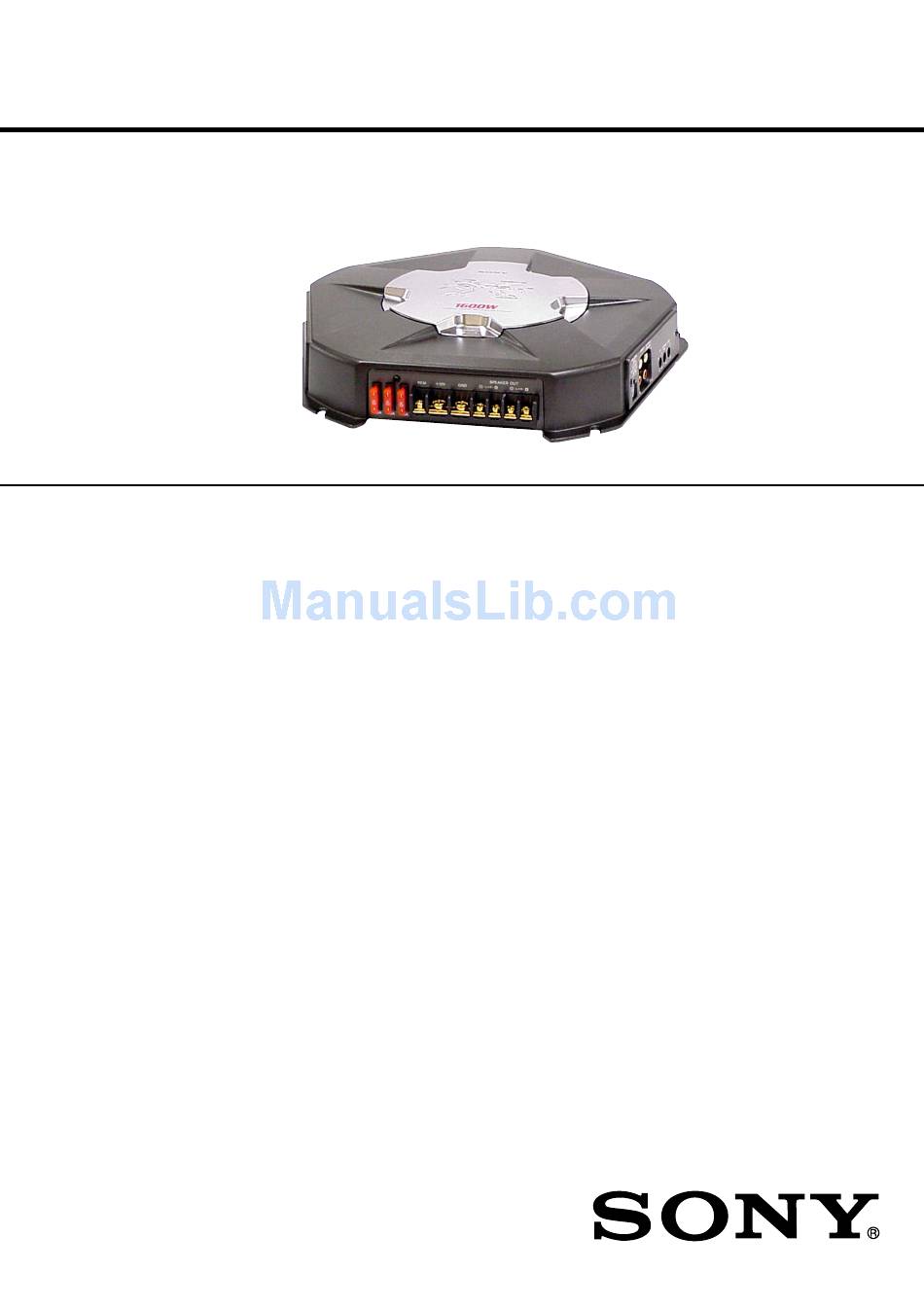

Sony XM-D1000P5 Service Manual

Monaural power amplifier
Hide thumbs

Advertisement

SERVICE MANUAL

Ver 1.1 2003. 09
AUDIO POWER SPECIFICATIONS (US MODEL)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
500 watts minimum continuous average power into 4 ohms,
20 Hz to 300 Hz with no more than 0.2% total harmonic
distortion per Car Audio Ad Hoc Committee standards.
Other Specifications
Circuit system
Class D Technology
Pulse power supply
Inputs
RCA pin jacks
High level input connector
Outputs
Speaker terminals
Through out pin jacks
Suitable speaker impedance
2 – 8 Ω
Maximum outputs
1,000 W (at 4 Ω)
1,600 W (at 2 Ω)
Rated outputs (supply voltage at 14.4 V)
500 W (20 – 300 Hz, 0.2% THD, at 4 Ω)
900 W (20 – 300 Hz, 0.6% THD, at 2 Ω)
+0.5
Frequency response
5 – 300 Hz (
–3
Harmonic distortion
0.06% or less (at 100 Hz, 4 Ω)
Input level adjustment range
0.3 – 6.0 V (RCA pin jacks)
1.2 – 12.0 V (High level input)
Sony Corporation
9-877-039-02
2003I04-1
e Vehicle Company
© 2003. 09
Published by Sony Engineering Corporation
XM-D1000P5
SPECIFICATIONS
dB)
Low-pass filter
50 – 300 Hz, –12 dB/oct
Low boost
0 – 10 dB (40 Hz)
Power requirements
12 V DC car battery
(negative ground)
Power supply voltage
10.5 – 16 V
Current drain
at rated output : 90 A (at 2 Ω)
Remote input : 2 mA
Dimensions
Approx. 347 × 57 × 339 mm
(13
× 2
× 13
3/4
1/4
projecting parts and controls
Mass
Approx. 3.8 kg (8 lb. 6 oz.) not incl. accessories
Supplied accessories
Mounting screws (5)
High level input cord (1)
Protection cap (1)
Design and specifications are subject to change without
notice.
Notes on Chip Component Replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be
damaged by heat.
MONAURAL POWER AMPLIFIER
US Model
Canadian Model
AEP Model
UK Model
E Model
in.) (w/h/d) not incl.
3/8
1
