Anolis arcsource wall 3 User Instructions

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

The products generate colored light by means of high power LEDs.The products were designed for exterior
use and they are ideal for locations where signaling,directional or effect lighting is required.

1. Attention

Consider the respective national norms during the installation!
Do not install the unit near naked flames.
Avoid using the unit in locations subject to possible impacts.
Do not attempt to dismantle or modify the unit.
Do not install the module in badly ventilated location
Avoid looking directly into the LED light beam at close range.

2. Installation

This fixture can be arranged in any position orientation. Body of stainless steel tube is mounted on 75mm
diameter mounting base.

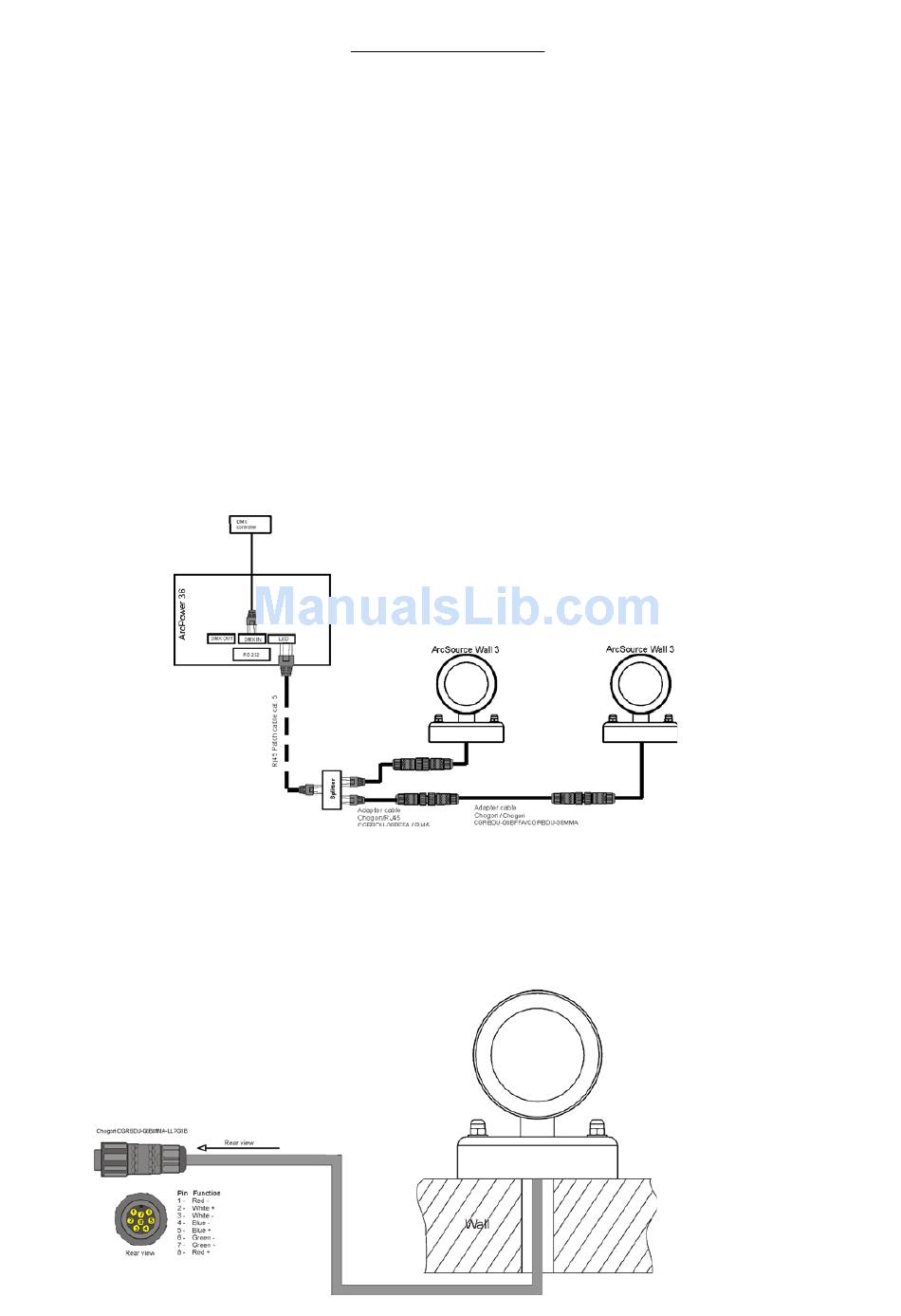

The ArcSource Wall unit should be connected to the ArcPower driver (see ArcPower 36/72/44/360/ 6x6/6x2
user manual for full details of mains power requirements and DMX operation).
Use a cable splitter if more than one LED module has to be connected to the one LED output of the driver,
the connection between the ArcPower driver and the splitter is a standard RJ45 patch cable category 5 wired
:.

3. Connection

ArcSource Wall 3 / Twin Wall 3
User instructions
ArcSource Wall 3, ArcSource Twin Wall 3


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the arcsource wall 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Anolis arcsource wall 3

Summary of Contents for Anolis arcsource wall 3

  • Page 1 User instructions ArcSource Wall 3, ArcSource Twin Wall 3 The products generate colored light by means of high power LEDs.The products were designed for exterior use and they are ideal for locations where signaling,directional or effect lighting is required. 1. Attention Consider the respective national norms during the installation! Do not install the unit near naked flames.
  • Page 2 LEDs LEDs LEDs LEDs LEDs supplies LEDs LEDs (colour variant) modules ArcPower 36/72/144/360/384 ArcSource Wall 3 RGB ArcPower 16x6 /16x12 ArcPowerSmartWhite ArcSource Wall 3 CW 36/72/144 ArcPowerSmartWhite ArcSource Wall 3 WW 36/72/144 ArcPowerSmartWhite ArcSource Wall 3 R 36/72/144 ArcPowerSmartWhite...

  • Page 3: Technical Specifications

    4.Technical specifications Parameter ArcSource Wall 3 ArcSource Twin Wall 3 Max input current: 350 mA 350 mA Maximum Power Consumption: 4.2 Watts 8.4 Watts Comp. Power Supplies for RGB variant: ArcPower 36/72/44/360/384/6x6 ArcPower 36/72/44/360/384/6x6 Comp. Power Supplies for WW/CW and single colour variants:...
  • Page 4 ArcSource Twin Wall 3 Version 2.8 December 11, 2014 Specifications are subject to change without notice.
