Anolis ArcPar SB1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Version 1.0


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ArcPar SB1 and is the answer not in the manual?

Questions and answers

Related Manuals for Anolis ArcPar SB1

Summary of Contents for Anolis ArcPar SB1

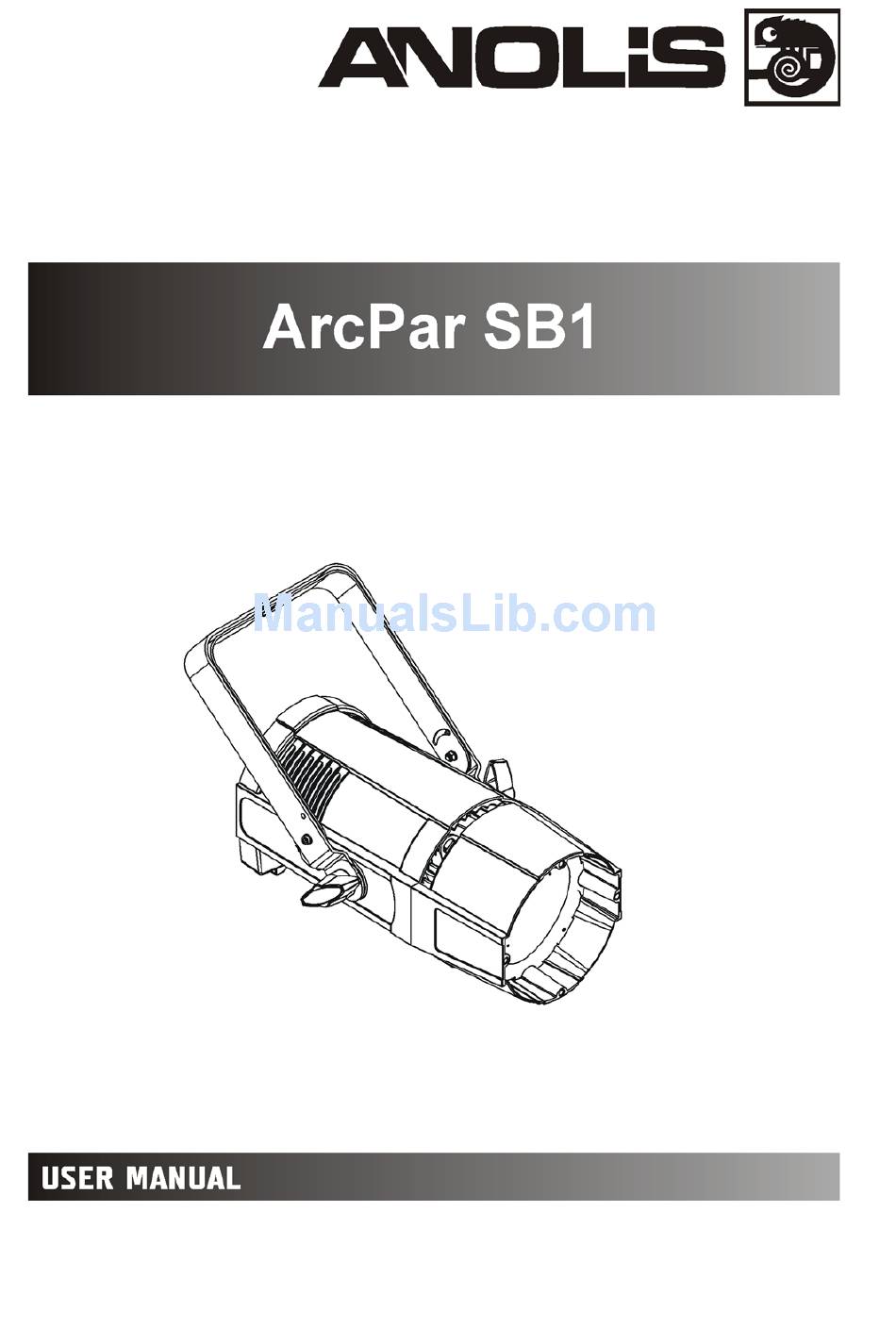

  • Page 1 Version 1.0...

  • Page 2: Table Of Contents

    Anolis ArcPar SB1 Table of contents 1. Safety instructions ......................3 2. Fixture exterior view ...................... 5 3. Installation........................6 3. Connection to the mains .................... 6 3. Installing barndoors and the gel frame ............... 7 3.3 Rigging the fixture ...................... 9 4.

  • Page 3: Safety Instructions

    Please consider that damages caused by manual modifications to the device are not subject to warranty. The Anolis ArcPar SB1 was designed for indoor use and it is intended for professional application only. It is not for household use.
  • Page 4 This device is for professional use only. It is not for household use. When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat, moisture or dust. Air vents and slots in the fixture´s head and base are provided for ventilation, to ensure reliable operation of the device and to protect it from overheating.

  • Page 5: Fixture Exterior View

    2. Fixture exterior view 1 - Mounting yoke 2 - Tilt locks 3 - Optical system and light source 4 - Activation button 5 - Safety wire attachment point 6 - Jog dial 7 - Fuse holder (CE version only) 8 - Power cord...

  • Page 6: Installation

    The ArcPar SB1 is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC power source from 100-240 Volts. Connect the ArcPar SB1 directly to AC power. Do not connect it to a dimmer system - you may damage the fixture.

  • Page 7: Installing Barndoors And The Gel Frame

    1.Disconnect the fixture from mains. 2. Screw the accessory frame adaptor (1) on the ArcPar SB1 housing with the four screws M4x8 (2) and unlock the spring lock (3) via pushing this spring lock as show red arrows on the picture.
  • Page 8 5. Secure both accessories by moving the spring lock (3) up as shows the red arrow on the picture. Note: the barndoors can be rotated to desired position and secured in this position via the securing screw (6).

  • Page 9: Rigging The Fixture

    3.3 Rigging the fixture A structure intended for installation of the fixture (s) must safely hold weight of the fixture(s) placed on it. The structure has to be certificated to the purpose. The fixture (fixtures) must be installed in accordance with national and local electrical and construction codes and regulation.

  • Page 10: Adjusting A Light Intensity

    For overhead installation, install a safety wire that can hold at least 10 times the weight of the fixture. Use only a safety wire with a snap hook with screw lock gate. Fasten the safety wire in the attachment point and around the truss as shown on the picture below.

  • Page 11: Technical Specifications

    5. Technical Specifications Electrical Power supply:......electronic auto-ranging Input voltage range:....100-240V, 50-60Hz (CE version) 100-277W, 50-60Hz (US version) Fuse:........T 3.15A/250V ~ (CE version) Max. power consumption :..150W@230V, I=0.65A, power factor=0.94 Optic Light source: 130W S1 LED Colour temperature: 6000K or 2700K CRI: 82 for 6000K Min LED life expectancy: 60.000 hours Beam angle...

  • Page 12: Optional Accessories

    Accessories* (P/N 1098 0242) Diffuser 28° for Robin Parfect S1/H1 (P/N 10980193) Accessory frame adaptor black (P/N 10980205) Accessory frame adaptor white (P/N 10980204) Gel Frame black (P/N 10980207) Gel Frame white (P/N 10980237) Barndoor for Parfect S1 black (barndoor with aperture 90x90 mm) (P/N 10980241) Barndoor for Parfect S1 white (barndoor with aperture 90x90 mm) * Colour of accessories depends on colour of fixture.

  • Page 13: Maintenance And Cleaning

    The interior of the base should be cleaned at least annually using a vacuum-cleaner or an air-jet. More complicated maintenance and service operations are only to be carried out by authorized distributors. Disassembly of the ArcPar SB1: Important: The correct order of parts at the mounting yoke assembly is: insertion piece+rubber washer+yoke+metal washer+tilt lock (on both sides of the device).

  • Page 14: Photometric Diagram

    7. Photometric diagram Colour temperature: 6000K Specifications are subject to change without notice. February 2, 2016...
