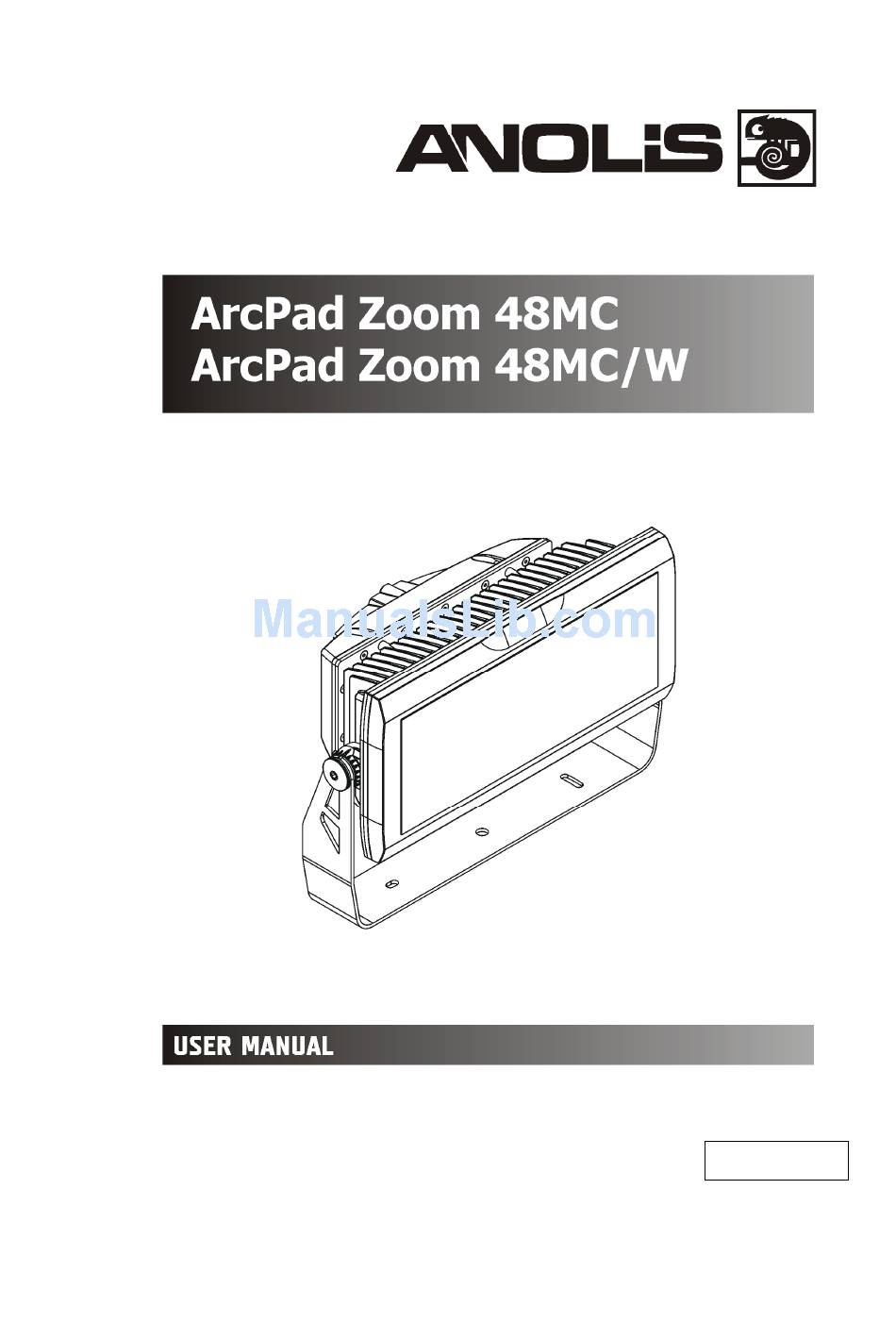

  • Page 1 Version 1.1...

  • Page 2: Table Of Contents

    3.1 Mounting the fixture ............................5 3.2 Connection to the mains ............................6 3.3 Wireless DMX operation ............................7 4. ArcPad Zoom 48MC (RGBW) - DMX protocol ......................8 5. Control menu map (RGBW version) ......................... 10 6. Control menu ................................13 6.1 Addressing (DMXA) .............................

  • Page 3: Safety Instructions

    ArcPad Zoom 48MC FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR ArcPad Zoom 48MC! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.
  • Page 4 ArcPad Zoom 48MC When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust. Avoid using the unit in locations subject to possible impacts. Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.

  • Page 5: Fixture Exterior View

    3.1 Mounting the fixture The ArcPad Zoom 48MC can be arranged in any position orientation without altering its operation characteristics. The LED module can be tilted to desired position by means of the tilt lock. Use an Allen key 6 to adjust desired tilt position.

  • Page 6: Connection To The Mains

    ArcPad Zoom 48MC Ensure that the structure to which you are attaching the fixture is secure. Caution: Overhead installation requires experience. Fixtures may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do not install the device and consult installation with an expert.

  • Page 7: Wireless Dmx Operation

    3.3 Wireless DMX operation The wireless version of the ArcPad Zoom 48MC ( ArcPad Zoom 48MC/W) is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the 2.4 GHz band. 1. Select wireless DMX input from the menu PErS (PErs-->dMX In.-->Wireless).

  • Page 8: Arcpad Zoom 48Mc (Rgbw) - Dmx Protocol

    ArcPad Zoom 48MC 4. ArcPad Zoom 48MC (RGBW) - DMX protocol Version 1.1 Mode 1 - Standard 16 bit, Mode 2 - Reduced 8 bit Mode/Channel Function Type of Value control Special functions 0-29 Reserved To activate following functions , stop in DMX value for at least 3 sec.
  • Page 9 ArcPad Zoom 48MC White 2700 K step White 2700 K (tungsten emulation)* step White 3200 K step White 3200 K (tungsten emulation)* step White 4200 K step 10-12 White 5600 K step 13-15 White 8000 K step Blue (Blue=full, Red+Green+White=0)

  • Page 10: Control Menu Map (Rgbw Version)

    ArcPad Zoom 48MC 5. Control menu map (RGBW version) Default settings=Bold print Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 DMXA Set DMX 001-255 address DMX Pres Mode 1 Mode 2 Info POn Time...
  • Page 11 ArcPad Zoom 48MC Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 C Mix M RGBW, CMY Dimmer Linear °C, °F Temp Uni I Ef Pos Powr Dimm F Store Defaults Manual Powr Dimm F...
  • Page 12 ArcPad Zoom 48MC Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Wireless Stat Unlink Adjust DMX Val Powr 0-255 Dimm F 0-255 Calib Green Blue Whit Store Load d. C Sw Upd On, Off...

  • Page 13: Control Menu

    DMX controller. Please, be sure that you do not have any overlapping channels in order to control each ArcPad Zoom 48MC correctly and independently from any other fixture on the DMX data link.

  • Page 14: Personality (Pers)

    Use the menu to control all fixture channels by means of the control panel. Displayed menu items depend on selected DMX mode. 6.5 Test program (Test Prg) Use this menu item to run a special demo-test sequences without an external controller, which will show you some possibilities of using ArcPad Zoom 48MC.

  • Page 15: Stand-Alone (St Alone)

    Pr Edit - Editing program. Select this menu to edit or create the program. The ArcPad Zoom 48MC has one built-in program and one user-editable program up to 40 steps. Each program step has a step time during which effects last in the current step.
  • Page 16 To update software in the fixture: I. Installation of the DMX Software Uploader. 1. DMX Software Uploader program is available from the Anolis web site at WWW.anolis.cz. 2. Make a new folder ( e.g. Anolis_Uploader) on your hard disk and download the software to it.

  • Page 17: Rdm

    ArcPad Zoom 48MC 7. RDM This fixture is ready for RDM operation. RDM (Remote Device Management) is a bi-directional communications protocol for use in DMX512 control systems, it is the new open standard for DMX512 device configuration and status monitoring.

  • Page 18: Technical Specifications

    • Manual control of all effects via control panel • One editable program, up to 40 steps Wireless DMX/RDM module (only for ArcPad Zoom 48MC/W) • Compliance with USITT DMX-512 (1986 & 1990) and 512-A • Full DMX fidelity and frame integrity •...
  • Page 19 ArcPad Zoom 48MC Temperatures • Ambient temperature range: -20°C/+40° C • Maximum housing temperature: 70° C Total heat dissipation • 440 BTU/h (calculated) Weight • 11.6 kg (fixture) • 1.5 kg (floor stand) Dimensions (mm)
  • Page 20 ArcPad Zoom 48MC Junction box Included items • 1 x ArcPad Zoom 48MC • 1 x Junction box (P/N 99714080) • 1 x Data/power cable • 1 x User manual Optional accessories • Floor stand for ArcPad Zoom 48MC (P/N 10980235)

  • Page 21: Cleaning And Maintenance

    Should you need any spare parts, please use genuine parts. 9.1 Replacing a fuse This replacement has to be realized by a qualified person or Anolis service worker only. 9.2 Disposing of the product To preserve the environment please dispose or recycle this product at the end of its life according to the local regulations and codes.
  • Page 22 ArcPad Zoom 48MC...
