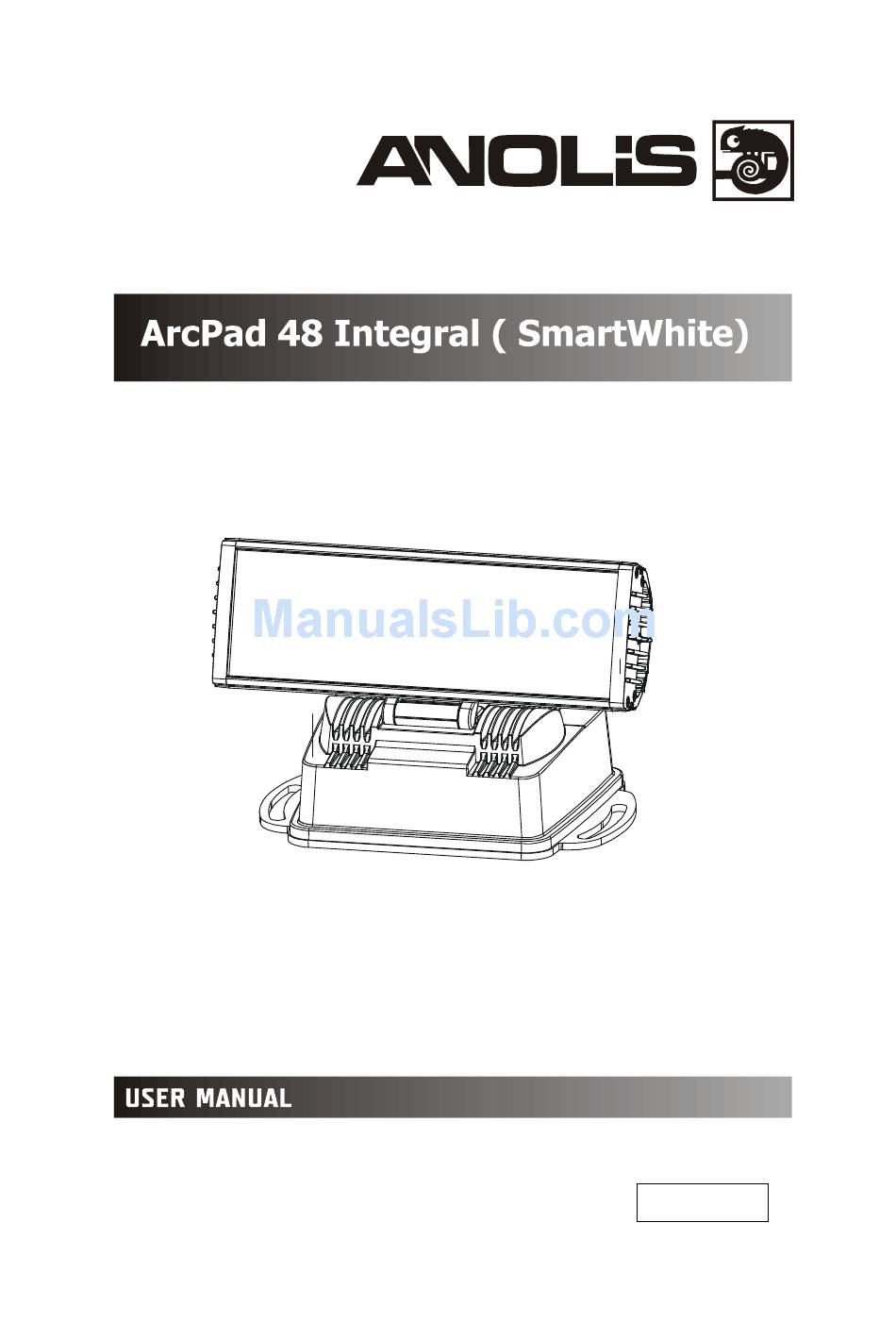

  • Page 1 Version 1.5...

  • Page 2: Table Of Contents

    ArcPad 48 Integral (SmartWhite) Table of contents 1. Safety instructions ..............................3 2. Fixture exterior view ..............................5 3. Installation .................................. 5 3.1 Mounting the fixture ............................5 3.2 Connection to the mains ............................6 3.3 Installation of the barn-doors ..........................8 3.4 Setting and control ...............................

  • Page 3: Safety Instructions

    ArcPad 48 Integral (SmartWhite) FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING YOUR ArcPad 48 Integral ! Save it for future reference. This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.
  • Page 4 ArcPad 48 Integral (SmartWhite) When choosing the installation spot, please make sure that the fixture is not exposed to extreme heat or dust. Avoid using the unit in locations subject to possible impacts. The fixture body never must be covered with cloth or other materials. Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.

  • Page 5: Fixture Exterior View

    ArcPad 48 Integral (SmartWhite) 2. Fixture exterior view 1. Lens array 2. Radiator 3.Base 6. Power/data cord 3. Installation 3.1 Mounting the fixture The ArcPad 48 Integral can be arranged in any position orientation.The ArcPpad 48 Integral´s radiator with LEDs is mounted on an adjustable bracket for “tilt”...

  • Page 6: Connection To The Mains

    ArcPad 48 Integral (SmartWhite) Ensure that the structure to which you are attaching the fixture is secure Caution: Overhead installation requires experience. Fixtures may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do not install the device and consult installation with an expert.
  • Page 7 ArcPad 48 Integral (SmartWhite)

  • Page 8: Installation Of The Barn-Doors

    ArcPad 48 Integral (SmartWhite) 3.3 Installation of the barn-doors You can install the barn-doors to better define illuminated surface. To install the barn-door module: 1. Disconnect the fixture from the mains. 2. Put the top edge of the barn-doors module into the second groove on the top side of the radiator ( detail A) and the bottom edge into the second groove on the bottom side of the radiator and tighten four locking screws M2 to secure this barn-doors module on the radiator.

  • Page 9: Setting And Control

    ArcPad 48 Integral (SmartWhite) 3.4 Setting and control For setting DMX address, selecting DMX mode and for another settings you need either Robe Universal Interface or the RDM Communicator. Please see the Robe Universal Interface or RDM Communicator user manuals to get more information about this products.

  • Page 10: Dmx 512 Connection

    ArcPad 48 Integral (SmartWhite) 3.5 DMX 512 connection To build a DMX chain 1. Connect the DMX output of the controller directly with the DMX input of the first fixture in the DMX chain. 2. Connect the DMX output of the first fixture in the DMX chain with the DMX input of the next fixture. 3.

  • Page 11: Arcpad 48 Integral (Smartwhite) - Dmx Protocol

    ArcPad 48 Integral (SmartWhite) 4. ArcPad 48 Integral (SmartWhite) - DMX protocol Version 1.0 Mode/Channel Value Function Type of control Warm white LEDs 0 - 255 Warm white LEDs saturation control (0-100%) proportional Cool white LEDs 0 - 255 Cool white LEDs saturation control (0-100%) proportional Ratio control* 0-127...

  • Page 12: Control Menu Map

    ArcPad 48 Integral (SmartWhite) 5. Control menu map Default settings=Bold print Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 A001 dM.Ad. 001-512 MA.SL. d.AbL MASt. InFo Poti. FuLL totL rSEt totL rSEt DM.In.
  • Page 13 ArcPad 48 Integral (SmartWhite) Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 F.dim 0-255 Stor. dFSE MAn.M. PrE.C. WWhi Wh.01..Wh.03 dimr di.01...di.06 Man.C. WWhi 0-255 dimr 0-255 F.dim 0-255 tESt St.AL.

  • Page 14: Fixture Menu

    ArcPad 48 Integral (SmartWhite) Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Menu Level 6 dimr CaL.U. Wh.1.1 Wh.1.4 Stor. uPd.M. 6. Fixture menu RDM communicator: Connect the RDM communicator to the fixture and from the menu “Control” select the “Remote LED display” item.

  • Page 15: Fixture Address

    ArcPad 48 Integral (SmartWhite) The Remote LED Display window will appear. Now you can fullly control the fixture using the UP, Down, Enter, Escape and Reset buttons. 6.1 Fixture Address Use this menu to set the DMX address of the fixture or set the fixture as a Master (Slave). dM.Ad.

  • Page 16: Fixture Information

    ArcPad 48 Integral (SmartWhite) To set a DMX address. 1. Use the UP/DOWN buttons to find “ A001“ menu. 2. Press the ENTER button. 3. Use the UP/DOWN buttons to select desired start address. 4. Press the ENTER button to confirm the choice. MA.SL.

  • Page 17: Personality

    ArcPad 48 Integral (SmartWhite) rSEt --- the menu item shows the maximum temperatures of the fixture inside since the counter was last reset. In order to reset this counter to 0 you have to press and hold the UP and DOWN buttons and at the same time press the ENTER button.

  • Page 18: Test Sequences

    ArcPad 48 Integral (SmartWhite) 9. Press the ENTER button and use the UP/DOWN buttons to set value , press the ENTER button to confirm it. 6. 5 Test sequences Use this menu to run demo-test sequences without an external controller, which will show you some possibilities of using the ArcPad 48 Integral.

  • Page 19: Special Functions

    To update software in the fixture: I. Installation of the DMX Software Uploader. 1. DMX Software Uploader program is available from theAnolis web site at WWW.anolis.cz. 2. Make a new directory ( e.g. Anolis_Uploader) on your hard disk and download the software into it.
  • Page 20 ArcPad 48 Integral (SmartWhite) Press the ENTER button Use the UP/DOWN buttons to select “ yES“ option Press the ENTER button Note: If you do not want to continue in software update, you have to switch off and on the fixture to escape from this menu.

  • Page 21: Rdm

    ArcPad 48 Integral (SmartWhite) If the connection is OK, click on the Start Uploading button to start uploading. It will take several minutes to perform software update. If the option "Incremental Update" is not checked, all processors will be updated (including processors with the same software version). If you wish to update only the latest versions of processors, check the Incremental Update box.

  • Page 22: Error And Information Messages

    ArcPad 48 Integral (SmartWhite) STATUS_MESSAGES STATUS_ID_DESCRIPTION DEVICE_HOURS Please, see the Robe Universal Interface user manual for detail description of RDM operation. 8. Error and information messages t.M.Er.(Temperature measuring error) The message informs you that the LED module temperature sensor is defective. MA.Er.

  • Page 23: Technical Specifications

    ArcPad 48 Integral (SmartWhite) 9. Technical specifications Power supply • Electronic auto-ranging • Input voltage: 100 - 240V AC, 50-60 Hz • Fuse: T 2.5A H • Power consumption: Power Max. power consumption Typical power consumption Ambient mode (All LED channels at full) ( 2 LED Channels at full) Temperature Full mode...
  • Page 24 ArcPad 48 Integral (SmartWhite) Dimensions (mm) ArcPad 48 Integral Junction box Weight • 3 kg...
  • Page 25 ArcPad 48 Integral (SmartWhite) Protection factor • IP 67 Included items • 1 x ArcPad 48 Integral • 1 x Junction box (No.99012672) • 1 x User manual • 1 x Gasket of cable grommet M20, PF ½ (P.N. 1305 1388) Optional accessories •...

  • Page 26: Cleaning And Maintenance

    ArcPad 48 Integral (SmartWhite) 10. Cleaning and maintenance DANGER ! Disconnect from the mains before starting any cleaning or maintenance work Rinse off loose dirt with low pressure water spray. Wash the housing with a soft brush or sponge and a mild, non- abrasive washing detergent.
  • Page 27 ArcPad 48 Integral (SmartWhite)
